| Tool Table | ||||||||

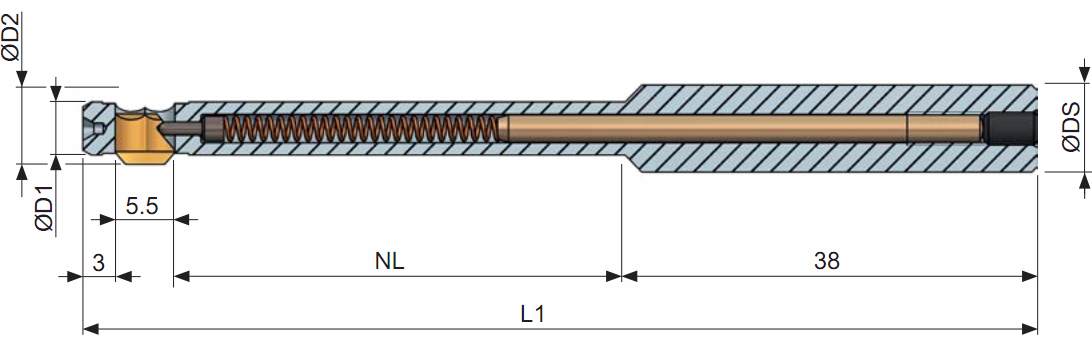

Tool dimensions |
Tool without Blade |
|||||||

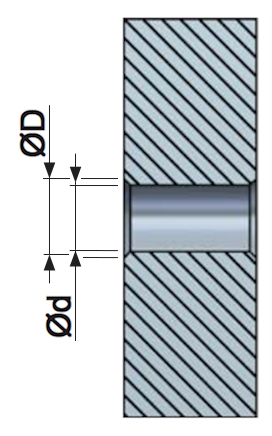

| Bore-Ø Ød |
Chamfer-Ø max1 ØD |
Tool-Ø ØD1 |
Max.-Ø2 ØD2 |
Tool length L1 |
Work length NL |
Shank-Ø ØDS |
Part number |
|
| 5.0-5.5 | 5.5 / 6.0 / 6.5 / 7.0 | 4.9 | 88.0 | 40.0 | 8.0 h6 | SNAP5/5.0 | ||
| 5.5-6.0 | 6.0 / 6.5 / 7.0 / 7.5 | 5.4 | 88.0 | 40.0 | 8.0 h6 | SNAP5/5.5 | ||
| 6.0-6.5 | 6.5 / 7.0 / 7.5 / 8.0 | 5.9 | 88.0 | 40.0 | 8.0 h6 | SNAP5/6.0 | ||
| 6.5-7.0 | 7.0 / 7.5 / 8.0 / 8.5 | 6.4 | 88.0 | 40.0 | 8.0 h6 | SNAP5/6.5 | ||
| 7.0-7.5 | 7.5 / 8.0 / 8.5 / 9.0 | 6.9 | ØD + 0.6 | 88.0 | 40.0 | 8.0 h6 | SNAP5/7.0 | |
| 7.5-8.0 | 8.0 / 8.5 / 9.0 / 9.5 | 7.4 | 88.0 | 40.0 | 8.0 h6 | SNAP5/7.5 | ||
| 8.0-8.5 | 8.5 / 9.0 / 9.5 / 10.0 | 7.8 | 98.0 | 50.0 | 10.0 h6 | SNAP5/8.0 | ||
| 8.5-9.0 | 9.0 / 9.5 / 10.0 / 10.5 | 8.3 | 98.0 | 50.0 | 10.0 h6 | SNAP5/8.5 | ||
| 9.0-9.5 | 9.5 / 10.0 / 10.5 / 11.0 | 8.8 | 98.0 | 50.0 | 10.0 h6 | SNAP5/9.0 | ||
| 9.5-10.0 | 10.0 / 10.5 / 11.0 / 11.5 | 9.3 | 98.0 | 50.0 | 10.0 h6 | SNAP5/9.5 | ||
| 10.0-10.5 | 10.5 / 11.0 / 11.5 / 12.0 | 9.8 | 107.0 | 50.0 | 12.0 h6 | SNAP5/10.0 | ||
1) Different chamfer-Ø can be achieved per tool size by using different blades. One blade however produces one defined chamfer-Ø only. The achievable chamfer capacity varies slightly depending on material, blade force, cutting data or application. The indicated dimension is the theoretically possible maximum. 2) The maximum diameter D2 varies depending on the selected blade. Please calculate value with formula. Please mind any interfering edges. |
||||||||
Note: - Standard shank for tool part numbers without any addition = Cylindrical shank With addition: "-HB" = Weldon shank or "-HE" = Whistle Notch shank - Attention: The tools are without blade. The blades for the tool need to be ordered seperately . |
||||||||
| Attention: Blades for SNAP5 tools and blades for Thread tools are not interchangeable! |
||||||||
 |
|||||||

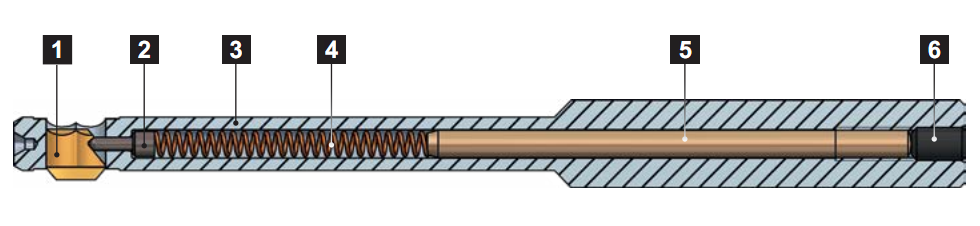

| Spare Parts | |||||||
| Pos. | Description | Part No. | |||||
| 1 | Blade | see below | |||||
| 2 | Control bolt Ø1.2 | GH-Q-E-0008 | |||||
| 3 | Tool body | ||||||
| 4 | Spring Ø2.35 x Ø0.35 x 30 | GH-H-F-0019 | |||||
| 5 | SNAP Distance pin Ø2.5 x 45 | GH-Q-E-0041 | |||||
| SNAP Distance pin Ø2.5 x 55 | GH-Q-E-0068 | ||||||
| SNAP Distance pin Ø2.5 x 65 | GH-Q-E-0067 | ||||||
| 6 | Set screw M3 x 5 DIN 913 | GH-H-S-0127 | |||||
| Wrench SW1.5 to Pos. 6 (not included) | GH-H-S-2101 | ||||||
| Blade GS Geometry 90° | |||||||
| Part number Blade | |||||||
| forward and backward cutting | backward cutting only | ||||||
| Chamfer-Ø1 | Coating A | Coating D | Coating A | Coating D | |||
| 5.5 | GH-Q-M-30204* | GH-Q-M-30404 | GH-Q-M-31204 | GH-Q-M-31404 | |||
| 6.0 | GH-Q-M-30205* | GH-Q-M-30405 | GH-Q-M-31205 | GH-Q-M-31405 | |||
| 6.5 | GH-Q-M-30206* | GH-Q-M-30406 | GH-Q-M-31206 | GH-Q-M-31406 | |||
| 7.0 | GH-Q-M-30207* | GH-Q-M-30407 | GH-Q-M-31207 | GH-Q-M-31407 | |||
| 7.5 | GH-Q-M-30208* | GH-Q-M-30408 | GH-Q-M-31208 | GH-Q-M-31408 | |||
| 8.0 | GH-Q-M-30209* | GH-Q-M-30409 | GH-Q-M-31209 | GH-Q-M-31409 | |||
| 8.5 | GH-Q-M-30210* | GH-Q-M-30410 | GH-Q-M-31210 | GH-Q-M-31410 | |||
| 9.0 | GH-Q-M-30211* | GH-Q-M-30411 | GH-Q-M-31211 | GH-Q-M-31411 | |||
| 9.5 | GH-Q-M-30212* | GH-Q-M-30412 | GH-Q-M-31212 | GH-Q-M-31412 | |||
| 10.0 | GH-Q-M-30213* | GH-Q-M-30413 | GH-Q-M-31213 | GH-Q-M-31413 | |||
| 10.5 | GH-Q-M-30214* | GH-Q-M-30414 | GH-Q-M-31214 | GH-Q-M-31414 | |||
| 11.0 | GH-Q-M-30215* | GH-Q-M-30415 | GH-Q-M-31215 | GH-Q-M-31415 | |||
| 11.5 | GH-Q-M-30216* | GH-Q-M-30416 | GH-Q-M-31216 | GH-Q-M-31416 | |||
| 12.0 | GH-Q-M-30217* | GH-Q-M-30417 | GH-Q-M-31217 | GH-Q-M-31417 | |||
| Coating A: Coating for steel, titan, Inconel | Coating D: Coating for aluminium alloys only | ||||||
| *) Standard items / Please enquire about stock or delivery times for all non-standard items. 1) The indicated dimension is the theoretically possible maximum. |
|||||||
 |
|
 |
