Tool Table

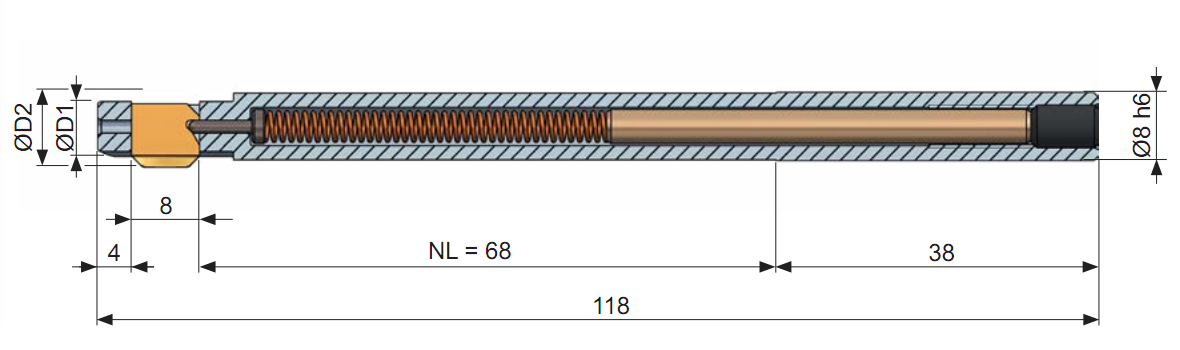

 Tool dimensions
 Tool without Blade

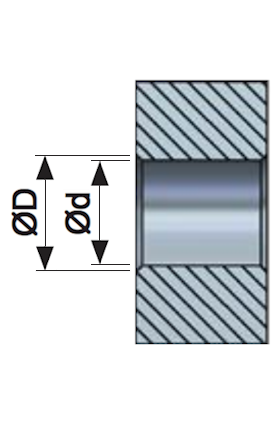

 Bore-Ø
 Ød		  Chamfer-Ø max1
 ØD		  Tool-Ø
 ØD1		 Max.-Ø2
ØD2		  Part number

 8.0 - 9.0  8.5 / 9.0  7.8  SNAP8/8.0
 8.5 - 9.5  9.0 / 9.5 / 10.0  8.3  SNAP8/8.5
 9.0 - 10.0  9.5 / 10.0 / 10.5  8.8  SNAP8/9.0
 9.5 - 10.5  10.0 / 10.5 / 11.0  9.3  SNAP8/9.5
 10.0 - 11.0  10.5 / 11.0 / 11.5  9.8  ØD + 0.6  SNAP8/10.0
 10.5 - 11.5  11.0 / 11.5 / 12.0  10.3  SNAP8/10.5
 11.0 - 12.0  11.5 / 12.0 / 12.5  10.8  SNAP8/11.0
 11.5 - 12.5  12.0 / 12.5 / 13.0  11.3  SNAP8/11.5
 12.0 - 13.0  12.5 / 13.0 / 13.5  11.8  SNAP8/12.0

 1) Different chamfer-Ø can be achieved per tool size by using different blades. One blade however produces one
 defined chamfer-Ø only.  The achievable chamfer capacity varies slightly depending on material, blade force, cutting data or application.  The indicated dimension is the theoretically possible maximum.

 2) The maximum diameter D2 varies depending on the selected blade.  Please calculate value with formula.
 Please mind any interfering edges.

Note:
- Standard shank for tool part numbers without any addition = Cylindrical shank
  With addition: "-HB" = Weldon shank or "-HE" = Whistle Notch shank
- Attention: The tools are without blade. The blades for the tool need to be ordered seperately.


  Spare Parts

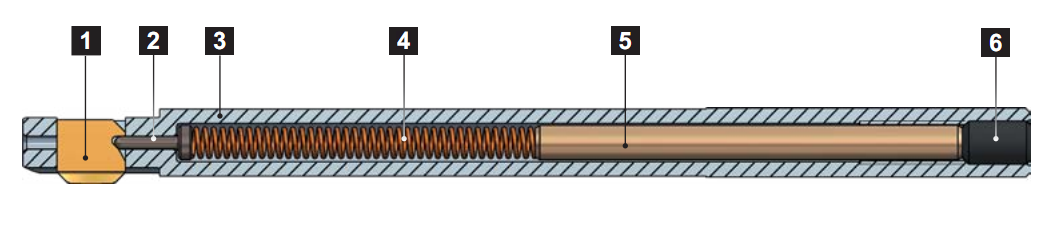

 Pos.   Description  Part No.
1   Blade  see below
2   Control bolt Ø1.5  GH-Q-E-0002
3   Tool body
4   Spring Ø3.7 x Ø0.5 x 48  GH-H-F-0007
5   SNAP Distance pin Ø4 x 50  GH-Q-E-0028
6   Set screw M5 x 8 DIN 913  GH-H-S-0119
  Wrench SW2.5 to Pos. 6 (not included)  GH-H-S-2100


  Blade GS Geometry 90°
  Part number Blade
  forward and backward cutting   backward cutting only
Chamfer-Ø1   Coating T   Coating A   Coating T   Coating A
 8.5   GH-Q-M-03720*   GH-Q-M-03820   GH-Q-M-05720   GH-Q-M-05820
 9.0   GH-Q-M-03721*   GH-Q-M-03821   GH-Q-M-05721   GH-Q-M-05821
 9.5   GH-Q-M-03722*   GH-Q-M-03822   GH-Q-M-05722   GH-Q-M-05822
 10.0   GH-Q-M-03723*   GH-Q-M-03823   GH-Q-M-05723   GH-Q-M-05823
 10.5   GH-Q-M-03724*   GH-Q-M-03824   GH-Q-M-05724   GH-Q-M-05824
 11.0   GH-Q-M-03725*   GH-Q-M-03825   GH-Q-M-05725   GH-Q-M-05825
 11.5   GH-Q-M-03726*   GH-Q-M-03826   GH-Q-M-05726   GH-Q-M-05826
 12.0   GH-Q-M-03727*   GH-Q-M-03827   GH-Q-M-05727   GH-Q-M-05827
 12.5   GH-Q-M-03728*   GH-Q-M-03828   GH-Q-M-05728   GH-Q-M-05828
 13.0   GH-Q-M-03729*   GH-Q-M-03829   GH-Q-M-05729   GH-Q-M-05829
 13.5   GH-Q-M-03730*   GH-Q-M-03830   GH-Q-M-05730   GH-Q-M-05830
  Coating T: Standard coating   Coating A: Coating for increased requirements
 *) Standard items / Please enquire about stock or delivery times for all non-standard items.
 1) The indicated dimension is the theoretically possible maximum.






We reserve the right to make technical changes.
