Tool Table

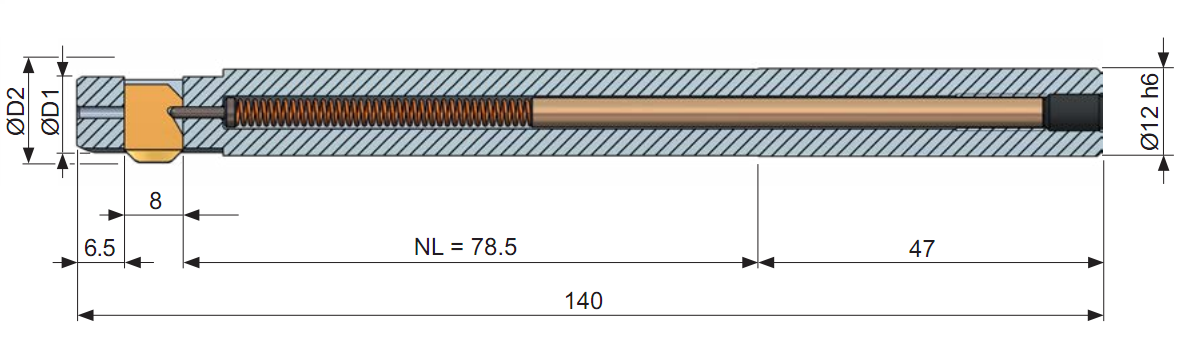

 Tool dimensions
 Tool without Blade

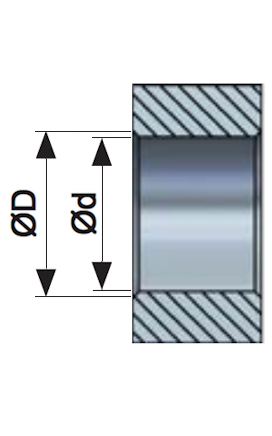

 Bore-Ø
 Ød		  Chamfer-Ø max1
 ØD		  Tool-Ø
 ØD1		 Max.-Ø2
ØD2		  Part number

 12.0 - 13.5  12.5 / 13.0 / 13.5 / 14.0  11.8  SNAP12/12.0
 12.5 - 14.0  13.0 / 13.5 / 14.0 / 14.5  12.3  SNAP12/12.5
 13.0 - 14.5  13.5 / 14.0 / 14.5 / 15.0  12.8  SNAP12/13.0
 13.5 - 15.0  14.0 / 14.5 / 15.0 / 15.5  13.3  SNAP12/13.5
 14.0 - 15.5  14.5 / 15.0 / 15.5 / 16.0  13.8  SNAP12/14.0
 14.5 - 16.0  15.0 / 15.5 / 16.0 / 16.5  14.3  SNAP12/14.5
 15.0 - 16.5  15.5 / 16.0 / 16.5 / 17.0  14.8  SNAP12/15.0
 15.5 - 17.0  16.0 / 16.5 / 17.0 / 17.5  15.3  SNAP12/15.5
 16.0 - 17.5  16.5 / 17.0 / 17.5 / 18.0  15.8  ØD + 0.8  SNAP12/16.0
 16.5 - 18.0  17.0 / 17.5 / 18.0 / 18.5  16.3  SNAP12/16.5
 17.0 - 18.5  17.5 / 18.0 / 18.5 / 19.0  16.8  SNAP12/17.0
 17.5 - 19.0  18.0 / 18.5 / 19.0 / 19.5  17.3  SNAP12/17.5
 18.0 - 19.5  18.5 / 19.0 / 19.5 / 20.0  17.8  SNAP12/18.0
 18.5 - 20.0  19.0 / 19.5 / 20.0 / 20.5  18.3  SNAP12/18.5
 19.0 - 20.5  19.5 / 20.0 / 20.5 / 21.0  18.8  SNAP12/19.0
 19.5 - 21.0  20.0 / 20.5 / 21.0 / 21.5  19.3  SNAP12/19.5
 20.0 - 21.5  20.5 / 21.0 / 21.5 / 22.0  19.8  SNAP12/20.0

 1) Different chamfer-Ø can be achieved per tool size by using different blades. One blade however produces one
 defined chamfer-Ø only.  The achievable chamfer capacity varies slightly depending on material, blade force, cutting data or application.  The indicated dimension is the theoretically possible maximum.

 2) The maximum diameter D2 varies depending on the selected blade.  Please calculate value with formula.
 Please mind any interfering edges.

Note:
- Standard shank for tool part numbers without any addition = Cylindrical shank
  With addition: "-HB" = Weldon shank or "-HE" = Whistle Notch shank
- Attention: The tools are without blade. The blades for the tool need to be ordered seperately.

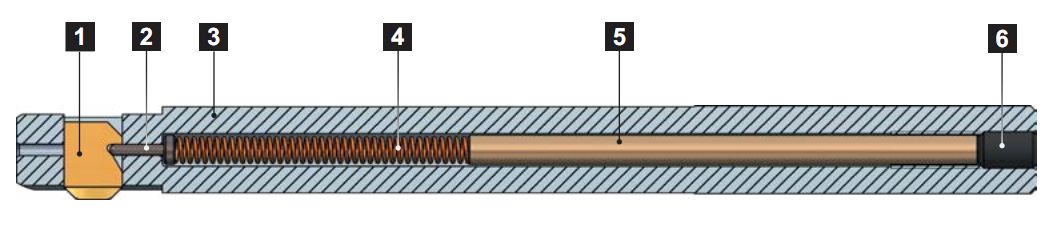

  Spare Parts
 Pos.   Description  Part No.
1   Blade  see below
2   Control bolt Ø1.5  GH-Q-E-0002
3   Tool body
4   Spring Ø3.7 x Ø0.5 x 48  GH-H-F-0007
5   SNAP Distance pin Ø4 x 70  GH-Q-E-0032
6   Set screw M5 x 8 DIN 913  GH-H-S-0119
  Wrench SW2.5 to Pos. 6 (not included)  GH-H-S-2100


  Blade GS Geometry 90°
  Part number Blade
  forward and backward cutting   backward cutting only
Chamfer-Ø1   Coating T   Coating A   Coating T   Coating A
 12.5   GH-Q-M-03740*   GH-Q-M-03840   GH-Q-M-05740   GH-Q-M-05840
 13.0   GH-Q-M-03741*   GH-Q-M-03841   GH-Q-M-05741   GH-Q-M-05841
 13.5   GH-Q-M-03742*   GH-Q-M-03842   GH-Q-M-05742   GH-Q-M-05842
 14.0   GH-Q-M-03743*   GH-Q-M-03843   GH-Q-M-05743   GH-Q-M-05843
 14.5   GH-Q-M-03744*   GH-Q-M-03844   GH-Q-M-05744   GH-Q-M-05844
 15.0   GH-Q-M-03745*   GH-Q-M-03845   GH-Q-M-05745   GH-Q-M-05845
 15.5   GH-Q-M-03746*   GH-Q-M-03846   GH-Q-M-05746   GH-Q-M-05846
 16.0   GH-Q-M-03747*   GH-Q-M-03847   GH-Q-M-05747   GH-Q-M-05847
 16.5   GH-Q-M-03748*   GH-Q-M-03848   GH-Q-M-05748   GH-Q-M-05848
 17.0   GH-Q-M-03749*   GH-Q-M-03849   GH-Q-M-05749   GH-Q-M-05849
 17.5   GH-Q-M-03750*   GH-Q-M-03850   GH-Q-M-05750   GH-Q-M-05850
 18.0   GH-Q-M-03751*   GH-Q-M-03851   GH-Q-M-05751   GH-Q-M-05851
 18.5   GH-Q-M-03752*   GH-Q-M-03852   GH-Q-M-05752   GH-Q-M-05852
 19.0   GH-Q-M-03753*   GH-Q-M-03853   GH-Q-M-05753   GH-Q-M-05853
 19.5   GH-Q-M-03754*   GH-Q-M-03854   GH-Q-M-05754   GH-Q-M-05854
 20.0   GH-Q-M-03755*   GH-Q-M-03855   GH-Q-M-05755   GH-Q-M-05855
 20.5   GH-Q-M-03756*   GH-Q-M-03856   GH-Q-M-05756   GH-Q-M-05856
 21.0   GH-Q-M-03757*   GH-Q-M-03857   GH-Q-M-05757   GH-Q-M-05857
 21.5   GH-Q-M-03758*   GH-Q-M-03858   GH-Q-M-05758   GH-Q-M-05858
 22.0   GH-Q-M-03759*   GH-Q-M-03859   GH-Q-M-05759   GH-Q-M-05859
  Coating T: Standard coating   Coating A: Coating for increased requirements
 *) Standard items / Please enquire about stock or delivery times for all non-standard items.
 1) The indicated dimension is the theoretically possible maximum.






We reserve the right to make technical changes.
