Tool Table

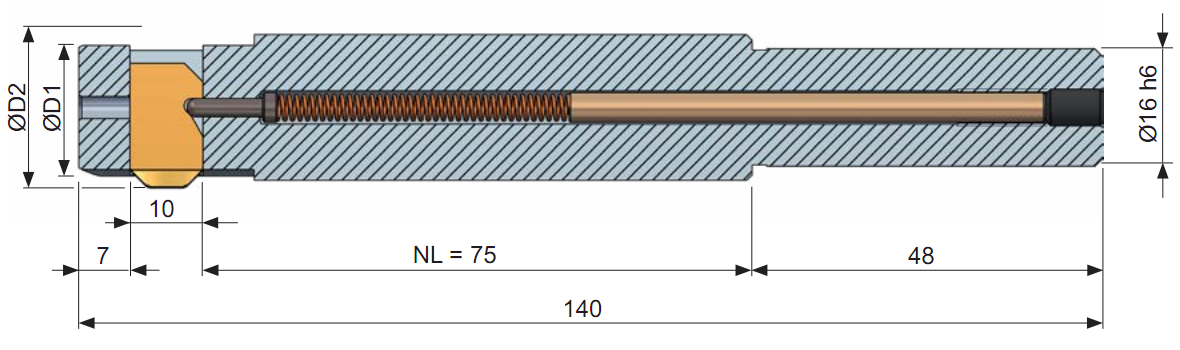

 Tool dimensions
 Tool without Blade

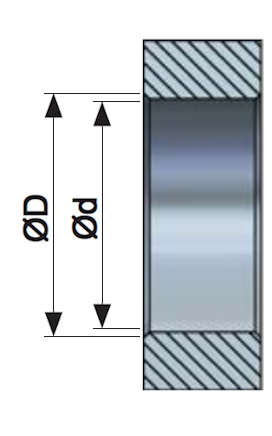

 Bore-Ø
 Ød		  Chamfer-Ø max1
 ØD		  Tool-Ø
 ØD1		 Max.-Ø2
ØD2		  Part number

 20.0 - 22.5  21.0 / 22.0 / 23.0  19.8  SNAP20/20.0
 21.0 - 23.5  22.0 / 23.0 / 24.0  20.8  SNAP20/21.0
 22.0 - 24.5  23.0 / 24.0 / 25.0  21.8  SNAP20/22.0
 23.0 - 25.5  24.0 / 25.0 / 26.0  22.8  SNAP20/23.0
 24.0 - 26.5  25.0 / 26.0 / 27.0  23.8  SNAP20/24.0
 25.0 - 27.5  26.0 / 27.0 / 28.0  24.8  SNAP20/25.0
 26.0 - 28.5  27.0 / 28.0 / 29.0  25.8  SNAP20/26.0
 27.0 - 29.5  28.0 / 29.0 / 30.0  26.8  SNAP20/27.0
 28.0 - 30.5  29.0 / 30.0 / 31.0  27.8  ØD + 1.0  SNAP20/28.0
 29.0 - 31.5  30.0 / 31.0 / 32.0  28.8  SNAP20/29.0
 30.0 - 32.5  31.0 / 32.0 / 33.0  29.8  SNAP20/30.0
 31.0 - 33.5  32.0 / 33.0 / 34.0  30.8  SNAP20/31.0
 32.0 - 34.5  33.0 / 34.0 / 35.0  31.8  SNAP20/32.0
 33.0 - 35.5  34.0 / 35.0 / 36.0  32.8  SNAP20/33.0
 34.0 - 36.5  35.0 / 36.0 / 37.0  33.8  SNAP20/34.0
 35.0 - 37.5  36.0 / 37.0 / 38.0  34.8  SNAP20/35.0

 1) Different chamfer-Ø can be achieved per tool size by using different blades. One blade however produces one
 defined chamfer-Ø only.  The achievable chamfer capacity varies slightly depending on material, blade force, cutting data or application.  The indicated dimension is the theoretically possible maximum.

 2) The maximum diameter D2 varies depending on the selected blade.  Please calculate value with formula.
 Please mind any interfering edges.

Note:
- Standard shank for tool part numbers without any addition = Cylindrical shank
  With addition: "-HB" = Weldon shank or "-HE" = Whistle Notch shank
- Attention: The tools are without blade. The blades for the tool need to be ordered seperately.

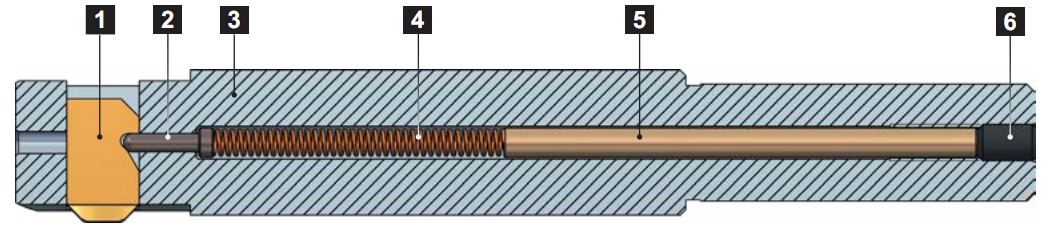

  Spare Parts
 Pos.   Description  Part No.
1   Blade  see below
2   Control bolt Ø2.5  GH-Q-E-0003
3   Tool body
4   Spring Ø4.3 x Ø0.6 x 52  GH-H-F-0011
5   SNAP Distance pin Ø4 x 65  GH-Q-E-0031
6   Set screw M5 x 8 DIN 913  GH-H-S-0119
  Wrench SW2.5 to Pos. 6 (not included)  GH-H-S-2100


  Blade GS Geometry 90°
  Part number Blade
  forward and backward cutting   backward cutting only
Chamfer-Ø1   Coating T   Coating A   Coating T   Coating A
 21.0   GH-Q-M-03770*   GH-Q-M-03870   GH-Q-M-05770   GH-Q-M-05870
 22.0   GH-Q-M-03771*   GH-Q-M-03871   GH-Q-M-05771   GH-Q-M-05871
 23.0   GH-Q-M-03772*   GH-Q-M-03872   GH-Q-M-05772   GH-Q-M-05872
 24.0   GH-Q-M-03773*   GH-Q-M-03873   GH-Q-M-05773   GH-Q-M-05873
 25.0   GH-Q-M-03774*   GH-Q-M-03874   GH-Q-M-05774   GH-Q-M-05874
 26.0   GH-Q-M-03775*   GH-Q-M-03875   GH-Q-M-05775   GH-Q-M-05875
 27.0   GH-Q-M-03776*   GH-Q-M-03876   GH-Q-M-05776   GH-Q-M-05876
 28.0   GH-Q-M-03777*   GH-Q-M-03877   GH-Q-M-05777   GH-Q-M-05877
 29.0   GH-Q-M-03778*   GH-Q-M-03878   GH-Q-M-05778   GH-Q-M-05878
 30.0   GH-Q-M-03779*   GH-Q-M-03879   GH-Q-M-05779   GH-Q-M-05879
 31.0   GH-Q-M-03780*   GH-Q-M-03880   GH-Q-M-05780   GH-Q-M-05780
 32.0   GH-Q-M-03781*   GH-Q-M-03881   GH-Q-M-05781   GH-Q-M-05781
 33.0   GH-Q-M-03782*   GH-Q-M-03882   GH-Q-M-05782   GH-Q-M-05782
 34.0   GH-Q-M-03783*   GH-Q-M-03883   GH-Q-M-05783   GH-Q-M-05783
 35.0   GH-Q-M-03784*   GH-Q-M-03884   GH-Q-M-05784   GH-Q-M-05784
 36.0   GH-Q-M-03785*   GH-Q-M-03885   GH-Q-M-05785   GH-Q-M-05785
 37.0   GH-Q-M-03786*   GH-Q-M-03886   GH-Q-M-05786   GH-Q-M-05786
 38.0   GH-Q-M-03787*   GH-Q-M-03887   GH-Q-M-05787   GH-Q-M-05787
  Coating T: Standard coating   Coating A: Coating for increased requirements
 *) Standard items / Please enquire about stock or delivery times for all non-standard items.
 1) The indicated dimension is the theoretically possible maximum.






We reserve the right to make technical changes.
