Tool Table

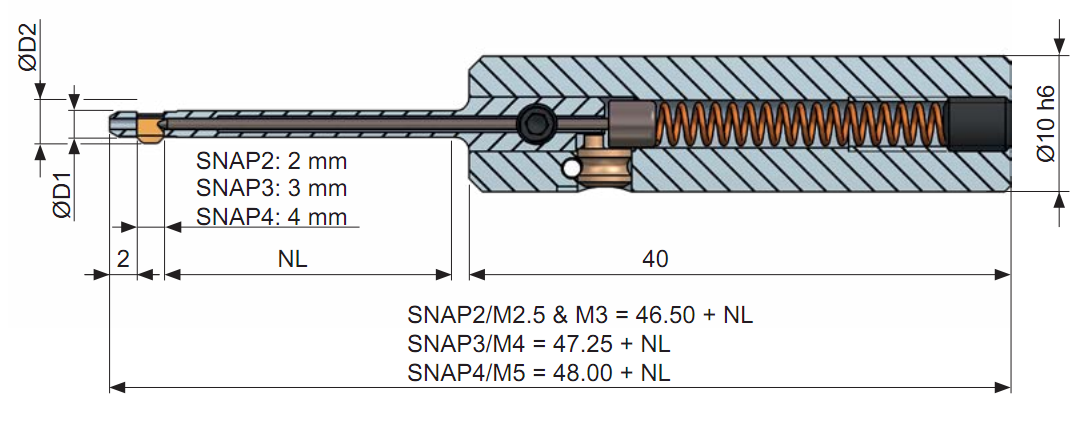

 Tool dimensions
 Tool without Blade
 Bore-Ø
 Ød		  Thread3
 		  Chamf.-Ø1
 ØD		  Tool-Ø
 ØD1		 Max.-Ø2
ØD2		  Part number
 Work. length NL 10 mm		  Part number
 Work. length NL 20 mm		  Part number
 Work. length NL 30 mm
 Ø2.05  M2.5  2.8  2.0  3.0  SNAP2/M2.5/10  SNAP2/M2.5/20  -
 Ø2.5  M3  3.4  2.45  3.6  SNAP2/M3/10  SNAP2/M3/20  -
 Ø3.3  M4  4.5  3.2  4.8  SNAP3/M4/10  SNAP3/M4/20  SNAP3/M4/30
 Ø4.2  M5  5.6  4.1  6.0  SNAP4/M5/10  SNAP4/M5/20  SNAP4/M5/30

 1) The achievable chamfer capacity varies slightly depending on material, blade force, cutting data or application.  The indicated
  dimension is the theoretically possible maximum.

 2)  Please mind any interfering edges.

Note:
- The tool types SNAP2, SNAP3 and SNAP4 are available with cylindrical shank only.
- Attention: The tools are without blade. The blades for the tool need to be ordered seperately .

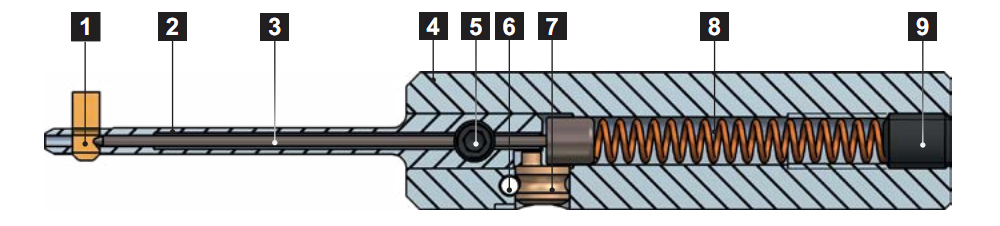

  Spare Parts
 Pos.   Description  Part No.
 NL 10 mm  NL 20 mm  NL 30 mm
1   Blade  see below  see below  see below
2   Blade housing SNAP2/M2.5/..  GH-Q-N-0015  GH-Q-N-0075
  Blade housing SNAP2/M3/..  GH-Q-N-0016  GH-Q-N-0076
  Blade housing SNAP3/M4/..  GH-Q-N-0035  GH-Q-N-0095  GH-Q-N-0155
  Blade housing SNAP4/M5/..  GH-Q-N-0055  GH-Q-N-0115  GH-Q-N-0175
3   Control bolt SNAP2/M2.5/..  GH-Q-E-0254  GH-Q-E-0256
  Control bolt SNAP2/M3/..  GH-Q-E-0236  GH-Q-E-0237
  Control bolt SNAP3/M4/..  GH-Q-E-0236  GH-Q-E-0237  GH-Q-E-0238
  Control bolt SNAP4/M5/..  GH-Q-E-0236  GH-Q-E-0237  GH-Q-E-0238
4   Tool body  GH-Q-G-5024  GH-Q-G-5024  GH-Q-G-5024
  Tool body  GH-Q-G-5025  GH-Q-G-5025  GH-Q-G-5025
  incl. Excenter GH-S-E-0031
  incl. Roll pin GH-C-E-0811
5   Locking screw M3x3.3  GH-H-S-1075  GH-H-S-1075  GH-H-S-1075
6   Roll pin SNAP2-4  GH-C-E-0811  GH-C-E-0811  GH-C-E-0811
7   Excenter SNAP2-4  GH-S-E-0031  GH-S-E-0031  GH-S-E-0031
8   Spring Ø3.2xØ0.45x23.0  GH-H-F-0047  GH-H-F-0047  GH-H-F-0047
9   Set screw M4x5 DIN913  GH-H-S-0134  GH-H-S-0134  GH-H-S-0134
  Wrench SW1.5 to Pos. 9  GH-H-S-2101  GH-H-S-2101  GH-H-S-2101

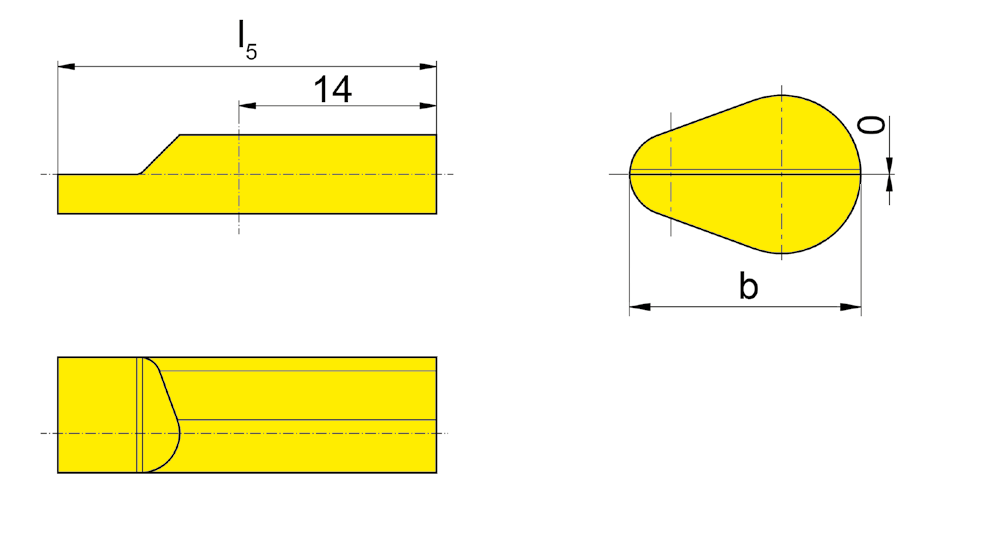

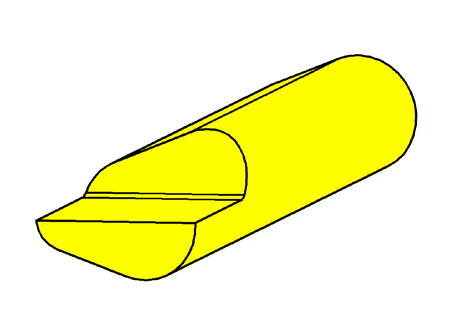

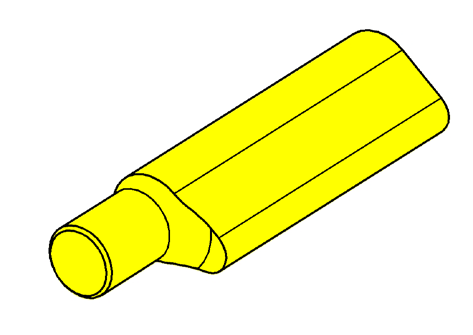

  Pos.1 Blade GS Geometry 90°
  Part number Blade
  forward and backward cutting   backward cutting only
Chamfer-Ø1   Coating A   Coating D   Coating A   Coating D
 Ø2.8   GH-Q-M-41501   GH-Q-M-41502   GH-Q-M-41601   GH-Q-M-41602
 Ø3.4   GH-Q-M-41511   GH-Q-M-41512   GH-Q-M-41611   GH-Q-M-41612
 Ø4.5   GH-Q-M-41521   GH-Q-M-41522   GH-Q-M-41621   GH-Q-M-41622
 Ø5.6   GH-Q-M-41531   GH-Q-M-41532   GH-Q-M-41631   GH-Q-M-41632
  Coating A: Coating for increased requirements   Coating D: Coating for aluminium alloys only
  - available upon customer request only
 1) The indicated dimension is the theoretically possible maximum.




We reserve the right to make technical changes.
