| Tool Table | |||||||||

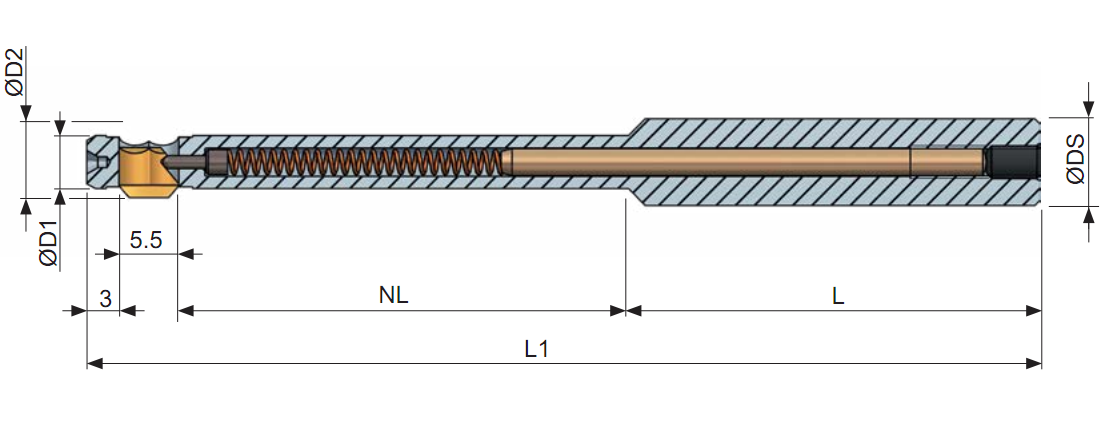

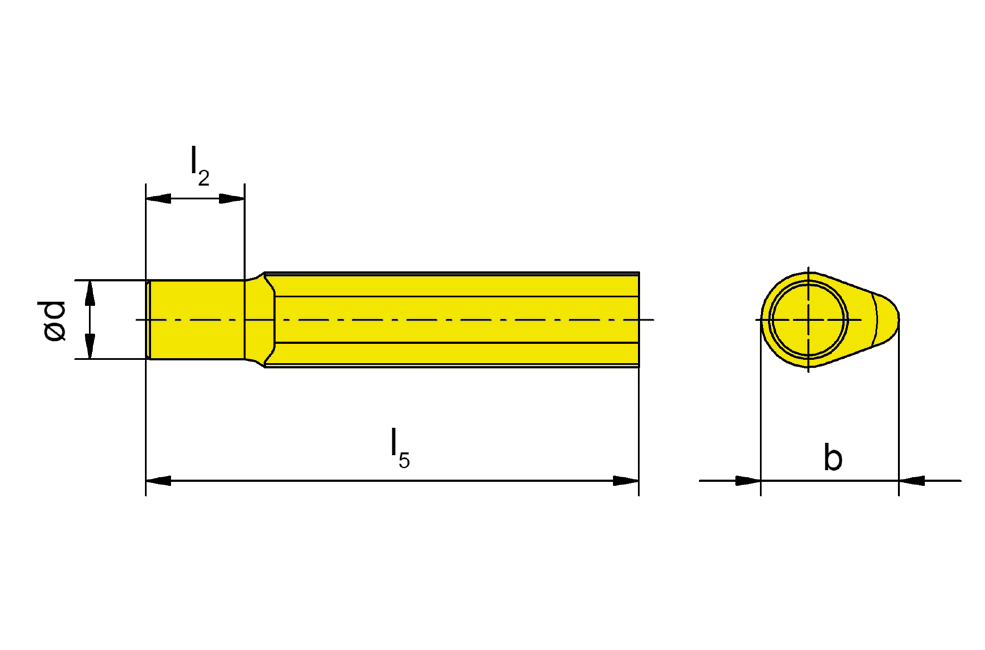

Tool dimensions |
Tool without Blade |
||||||||
| Bore-Ø Ød |
Thread3 |
Chamfer-Ø1 ØD |
Tool-Ø ØD1 |
Max.-Ø2 ØD2 |
Tool length L1 |
Work length NL |
Shank L |
Shank-Ø2 ØDS |
Part number |
| 5.0 | M6 | 6.5 | 4.9 | 7.3 | 88 | 40.0 | 38.0 | 8.0 h6 | SNAP5/M6 |
| 6.8 | M8 | 8.5 | 6.7 | 9.3 | 88 | 40.0 | 38.0 | 8.0 h6 | SNAP5/M8 |
| 8.5 | M10 | 10.5 | 8.3 | 11.3 | 100 | 50.0 | 48.0 | 10.0 h6 | SNAP5/M10 |
| 10.2 | M12 | 12.5 | 10.0 | 13.1 | 100 | 50.0 | 40.0 | 10.0 h6 | SNAP5/M12 |
| 12.0 | M14 | 14.5 | 11.8 | 15.1 | 100 | 50.0 | 40.0 | 10.0 h6 | SNAP5/M14 |
1) The achievable chamfer capacity varies slightly depending on material, blade force, cutting data or application. The indicated dimension is the theoretically possible maximum. 2) Please mind any interfering edges. |
|||||||||
Note: - Standard shank for tool part numbers without any addition = Cylindrical shank With addition: "-HB" = Weldon shank or "-HE" = Whistle Notch shank - Attention: The tools are without blade. The blades for the tool need to be ordered seperately. |
|||||||||
 |
|||||||

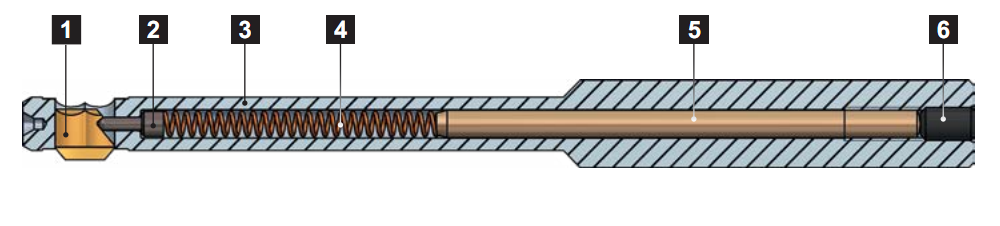

| Spare Parts | |||||||
| Pos. | Description | Part No. | |||||
| 1 | Blade | see below | |||||
| 2 | Control bolt Ø1.5 | GH-Q-E-0015 | |||||
| 3 | Tool body SNAP5/M6 | GH-Q-G-5003 | |||||
| Tool body SNAP5/M8 | GH-Q-G-5018 | ||||||
| Tool body SNAP5/M10 | GH-Q-G-5010 | ||||||
| Tool body SNAP5/M12 | GH-Q-G-5019 | ||||||
| Tool body SNAP5/M14 | GH-Q-G-5017 | ||||||
| 4 | Spring Ø2.35 x Ø0.35 x 30.0 | GH-H-F-0019 | |||||
| 5 | Distance pin Ø2.5x36 (M6/M8) | GH-Q-E-0049 | |||||
| Distance pin Ø2.5x50 (M10/M12/M14) | GH-Q-E-0042 | ||||||
| 6 | Set screw M3 x 5 DIN 913 | GH-H-S-0127 | |||||
| Wrench SW1.5 to Pos. 6 | GH-H-S-2101 | ||||||
| Pos.1 Blades DRA Geometry 90° for Standard Materials | |||||||
| Part number Blade | |||||||
| forward and backward cutting | backward cutting only | ||||||
| Chamfer-Ø1 | Coating A | Coating D | Coating A | Coating D | |||
| 6.5 | GH-Q-M-34032 | GH-Q-M-34033 | GH-Q-M-34532 | GH-Q-M-34533 | |||
| 8.5 | GH-Q-M-34072 | GH-Q-M-34073 | GH-Q-M-34572 | GH-Q-M-34573 | |||
| 10.5 | GH-Q-M-34112 | GH-Q-M-34113 | GH-Q-M-34612 | GH-Q-M-34613 | |||
| 12.5 | GH-Q-M-34152 | GH-Q-M-34153 | GH-Q-M-34652 | GH-Q-M-34653 | |||
| 14.5 | GH-Q-M-34192 | GH-Q-M-34193 | GH-Q-M-34692 | GH-Q-M-34693 | |||
| Pos.1 Blades DRB Geometry 90° for very hard and tough Materials | |||||||
| Part number Blade | |||||||
| forward and backward cutting | backward cutting only | ||||||
| Chamfer-Ø1 | Coating A | Coating A | |||||
| 6.5 | GH-Q-M-34042 | GH-Q-M-34542 | |||||
| 8.5 | GH-Q-M-34082 | GH-Q-M-34582 | |||||
| 10.5 | GH-Q-M-34122 | GH-Q-M-34622 | |||||
| 12.5 | GH-Q-M-34162 | GH-Q-M-34662 | |||||
| 14.5 | GH-Q-M-34202 | GH-Q-M-34702 | |||||
| Coating A: Coating for increased requirements | Coating D: Coating for aluminium alloys only - available upon customer request only |
||||||
| 1) The indicated dimension is the theoretically possible maximum. | |||||||
 |
|
 |
