The COFA Cassette is used for installation into combination tools and cassette holders. COFA Cassette Deburring Tools |
|||||||
| Cassette without Blade | |||||||
| Tool Series | Min. Bore size | Cassette Order Number | |||||
| C6 | 10.0 | C6-0-0900-☐ | |||||
| C8 | 14.0 | C8-0-0900-☐ | |||||
| C12 | 20.0 | C12-0-0900-☐ | |||||
 |
|||||||

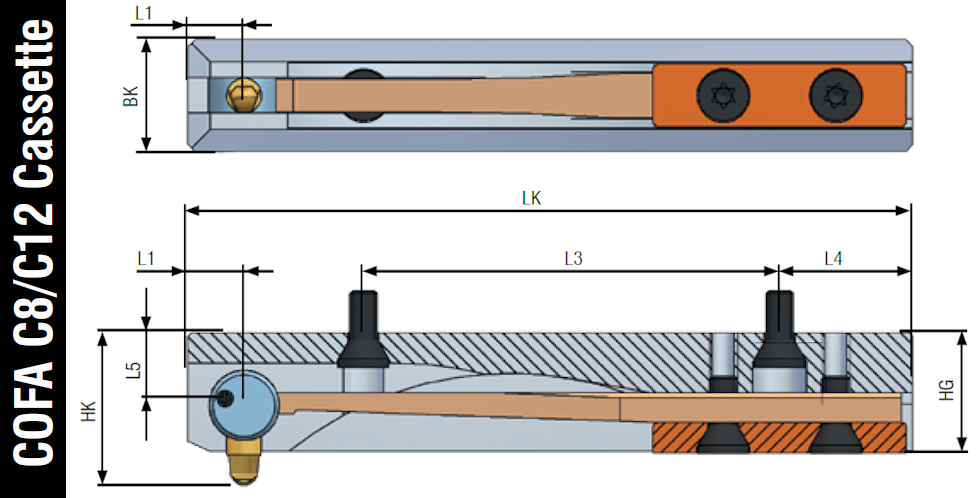

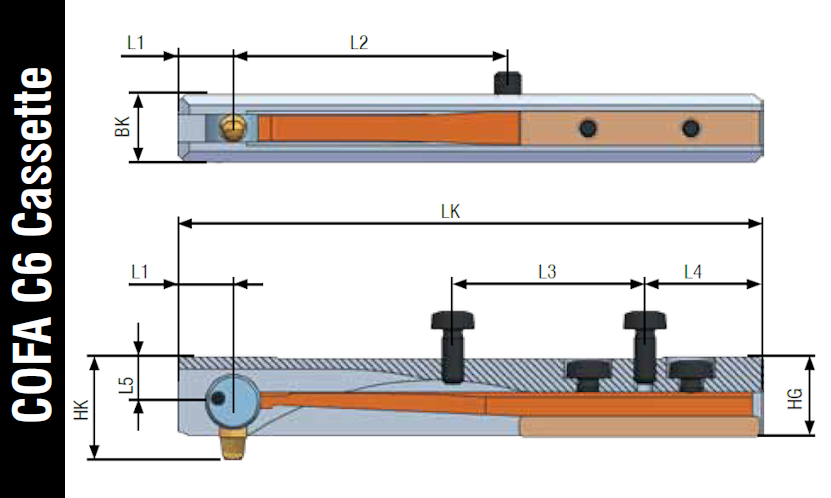

Measurements |
||||||||
| Type | BK | HG | LK | L1 | L2 | L3 | L4 | L5 |
| C6 | 5.0 | 5.8 | 42.5 | 4.0 | 20.0 | 14.0 | 8.5 | 3.3 |
| C8 | 8.0 | 8.5 | 51.5 | 4.0 | - | 29.6 | 9.5 | 5.2 |
| C12 | 10.0 | 13.0 | 60.0 | 7.5 | - | 35.0 | 8.5 | 7.7 |
 |
|
 |
