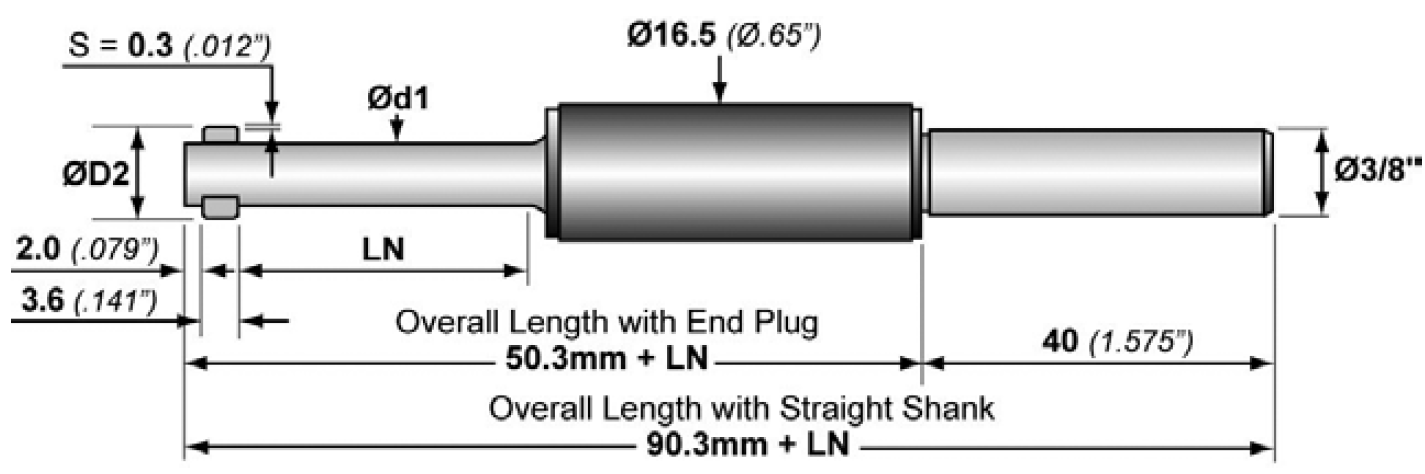

DEFA Series 07-09 Ød1 = Ødmin –.2mm (.008”)
   Tool Holder without blades TiAlN Blade Set

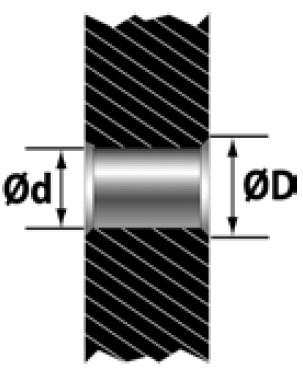

Min. Hole
Ød		 Max Chamfer
ØD		 Max
ØD2		 Order Number Order Number Order Number
Front/Back Back only
mm inches mm inches mm inches LN = 34mm LN = 60mm GH-S-M-
6.0 .236 6.8 .268 7.4 .292 DEFA07-34-228-☐/__ DEFA07-60-228-☐/__ -3X07 -4X07
6.1 .240 DEFA07-34-232-☐/__ DEFA07-60-232-☐/__
6.2 .244 DEFA07-34-236-☐/__ DEFA07-60-236-☐/__
6.3 .248 7.6 .299 8.2 .323 DEFA08-34-240-☐/__ DEFA08-60-240-☐/__ -3X08 -4X08
6.4 .252 DEFA08-34-244-☐/__ DEFA08-60-244-☐/__
6.5 .256 DEFA08-34-248-☐/__ DEFA08-60-248-☐/__
6.6 .260 DEFA08-34-252-☐/__ DEFA08-60-252-☐/__
6.7 .264 DEFA08-34-256-☐/__ DEFA08-60-256-☐/__
6.8 .268 8.5 .335 9.1 .359 DEFA09-34-260-☐/__ DEFA09-60-260-☐/__ -3X09 -4X09
6.9 .272 DEFA09-34-264-☐/__ DEFA09-60-264-☐/__
7.0 .276 DEFA09-34-268-☐/__ DEFA09-60-268-☐/__
7.1 .280 DEFA09-34-272-☐/__ DEFA09-60-272-☐/__
7.2 .283 DEFA09-34-276-☐/__ DEFA09-60-276-☐/__
7.3 .287 DEFA09-34-280-☐/__ DEFA09-60-280-☐/__
7.4 .291 DEFA09-34-283-☐/__ DEFA09-60-283-☐/__
7.5 .295 DEFA09-34-287-☐/__ DEFA09-60-287-☐/__
7.6 .299 DEFA09-34-291-☐/__ DEFA09-60-291-☐/__

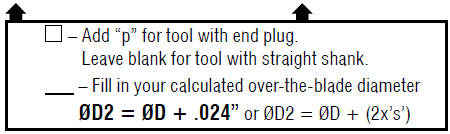

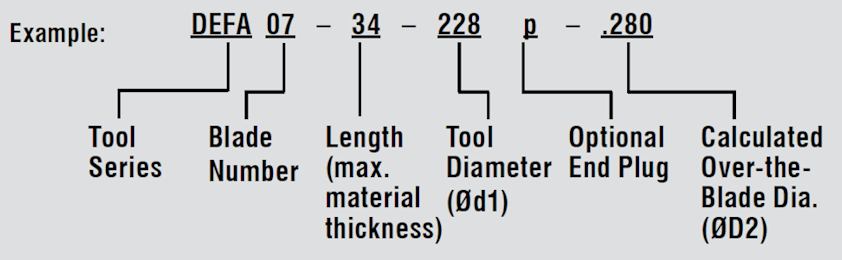

To order the tool with a pre-set chamfer size, we recommend adding
a calculated over-the-blade diameter (ØD2 = ØD + .024”) as a suffix
to the order number, otherwise a calculated default dimension is used
(ØD2 = .052” + Ød1).
The first tool in each series are STANDARD TOOLS which should be
used when you have a stable set-up and are cutting any material under 28 Rc.



Spare Parts – DEFA Series 07-09
   Order Number Description
1  GH-H-S-0101  Tension Screw
2  GH-H-S-0322  Set Screw
3  GH-S-E-0001  Eccentric Cam
4  GH-H-S-0201  Clamping Screw
5  GH-S-X-0001  Positioning Screw
6  GH-S-S-0155**  3/8” Straight Shank
 GH-S-S-0090**  End Plug
7  GH-S-G-0001  Tool Body
8  GH-S-C-0001  Gear Wheel
9  GH-S-T-0001  Torsion Spring
10  GH-S-W-0604  Blade Control-Length=20mm
 GH-S-W-0605  Blade Control-Length=34mm
 GH-S-W-0628*  Blade Control-Length=60mm
11  Blade Housing  See housing chart below
12  Blade Set
* Non-stock standard item with extended delivery time.
** Tool bodies are sold with either a straight shank or end plug, please read the ordering instructions to indicate your preference.  Other options are available and sold separately.  Please contact engineering for details.

Blade Housing Chart* – DEFA Series 07-09
Tool Holder Blade Housing Tool Holder Blade Housing Tool Holder Blade Housing
Order Number Order Number Order Number Order Number Order Number Order Number
DEFA07-20-228 GH-S-N-1081 DEFA07-34-228 GH-S-N-1082 DEFA07-60-228 GH-S-N-1083
DEFA07-20-232 GH-S-N-1084 DEFA07-34-232 GH-S-N-1085 DEFA07-60-232 GH-S-N-1086
DEFA07-20-236 GH-S-N-1087 DEFA07-34-236 GH-S-N-1088 DEFA07-60-236 GH-S-N-1089
DEFA08-20-240 GH-S-N-1090 DEFA08-34-240 GH-S-N-1091 DEFA08-60-240 GH-S-N-1092
DEFA08-20-244 GH-S-N-1093 DEFA08-34-244 GH-S-N-1094 DEFA08-60-244 GH-S-N-1095
DEFA08-20-248 GH-S-N-1096 DEFA08-34-248 GH-S-N-1097 DEFA08-60-248 GH-S-N-1098
DEFA08-20-252 GH-S-N-1099 DEFA08-34-252 GH-S-N-1100 DEFA08-60-252 GH-S-N-1101
DEFA08-20-256 GH-S-N-1102 DEFA08-34-256 GH-S-N-1103 DEFA08-60-256 GH-S-N-1104
DEFA09-20-260 GH-S-N-1105 DEFA09-34-260 GH-S-N-1106 DEFA09-60-260 GH-S-N-1107
DEFA09-20-264 GH-S-N-1108 DEFA09-34-264 GH-S-N-1109 DEFA09-60-264 GH-S-N-1110
DEFA09-20-268 GH-S-N-1111 DEFA09-34-268 GH-S-N-1112 DEFA09-60-268 GH-S-N-1113
DEFA09-20-272 GH-S-N-1114 DEFA09-34-272 GH-S-N-1115 DEFA09-60-272 GH-S-N-1116
DEFA09-20-276 GH-S-N-1117 DEFA09-34-276 GH-S-N-1118 DEFA09-60-276 GH-S-N-1119
DEFA09-20-280 GH-S-N-1120 DEFA09-34-280 GH-S-N-1121 DEFA09-60-280 GH-S-N-1122
DEFA09-20-283 GH-S-N-1123 DEFA09-34-283 GH-S-N-1124 DEFA09-60-283 GH-S-N-1125
DEFA09-20-287 GH-S-N-1126 DEFA09-34-287 GH-S-N-1127 DEFA09-60-287 GH-S-N-1128
DEFA09-20-291 GH-S-N-1129 DEFA09-34-291 GH-S-N-1130 DEFA09-60-291 GH-S-N-1131
* Extended delivery time




We reserve the right to make technical changes.
