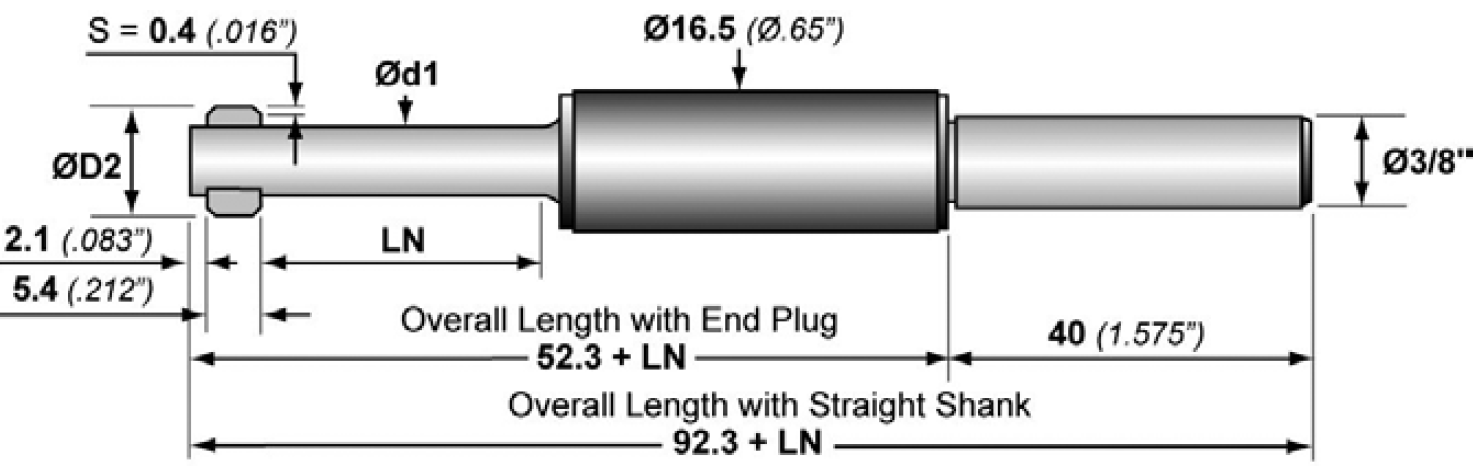

DEFA Series 10-11 Ød1 = Ødmin –.2mm (.008”)
   Tool Holder without blades TiAlN Blade Set

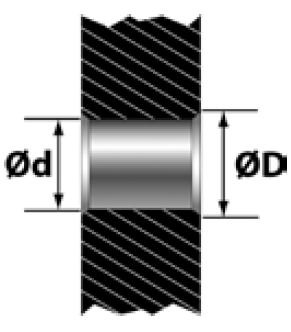

Min. Hole
Ød		 Max Chamfer
ØD		 Max
ØD2		 Order Number Order Number Order Number
Front/Back Back only
mm inches mm inches mm inches LN = 34mm LN = 60mm GH-S-M-
7.7 .303 9.6 .378 10.4 .410 DEFA10-34-295-☐/__ DEFA10-60-295-☐/__ -3X10 -4X10
7.8 .307 DEFA10-34-299-☐/__ DEFA10-60-299-☐/__
7.9 .311 DEFA10-34-303-☐/__ DEFA10-60-303-☐/__
8.0 .315 DEFA10-34-307-☐/__ DEFA10-60-307-☐/__
8.1 .319 DEFA10-34-311-☐/__ DEFA10-60-311-☐/__
8.2 .323 10.4 .409 11.2 .441 DEFA11-34-315-☐/__ DEFA11-60-315-☐/__ -3X11 -4X11
8.3 .327 DEFA11-34-319-☐/__ DEFA11-60-319-☐/__
8.4 .331 DEFA11-34-323-☐/__ DEFA11-60-323-☐/__
8.5 .335 DEFA11-34-327-☐/__ DEFA11-60-327-☐/__
8.6 .339 DEFA11-34-331-☐/__ DEFA11-60-331-☐/__
8.7 .343 DEFA11-34-335-☐/__ DEFA11-60-335-☐/__
8.8 .346 DEFA11-34-339-☐/__ DEFA11-60-339-☐/__
8.9 .350 DEFA11-34-343-☐/__ DEFA11-60-343-☐/__

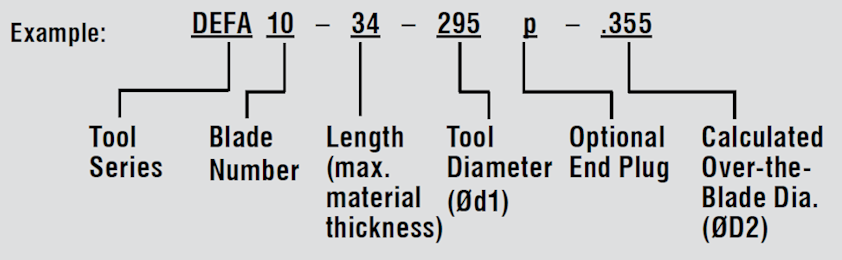

To order the tool with a pre-set chamfer size, we recommend adding
a calculated over-the-blade diameter (ØD2 = ØD + .032”) as a suffix
to the order number, otherwise a calculated default dimension is used
(ØD2 = .060” + Ød1).
The first tool in each series are STANDARD TOOLS which should be
used when you have a stable set-up and are cutting any material under 28 Rc.



Spare Parts – DEFA Series 10-11
   Order Number Description
1  GH-H-S-0101  Tension Screw
2  GH-H-S-0322  Set Screw
3  GH-S-E-0001  Eccentric Cam
4  GH-H-S-0201  Clamping Screw
5  GH-S-X-0001  Positioning Screw
6  GH-S-S-0155**  3/8” Straight Shank
 GH-S-S-0090**  End Plug
7  GH-S-G-0001  Tool Body
8  GH-S-C-0001  Gear Wheel
9  GH-S-T-0001  Torsion Spring
10  GH-S-W-0604  Blade Control-Length=20mm
 GH-S-W-0605  Blade Control-Length=34mm
 GH-S-W-0628*  Blade Control-Length=60mm
11  Blade Housing  See housing chart below
12  Blade Set
* Non-stock standard item with extended delivery time.
** Tool bodies are sold with either a straight shank or end plug, please read the ordering instructions to indicate your preference.  Other options are available and sold separately.  Please contact engineering for details.

Blade Housing Chart* – DEFA Series 10-11
Tool Holder Blade Housing Tool Holder Blade Housing Tool Holder Blade Housing
Order Number Order Number Order Number Order Number Order Number Order Number
DEFA10-20-295 GH-S-N-1150 DEFA10-34-295 GH-S-N-1151 DEFA10-60-295 GH-S-N-1152
DEFA10-20-299 GH-S-N-1153 DEFA10-34-299 GH-S-N-1154 DEFA10-60-299 GH-S-N-1155
DEFA10-20-303 GH-S-N-1156 DEFA10-34-303 GH-S-N-1157 DEFA10-60-303 GH-S-N-1158
DEFA10-20-307 GH-S-N-1159 DEFA10-34-307 GH-S-N-1160 DEFA10-60-307 GH-S-N-1161
DEFA10-20-311 GH-S-N-1162 DEFA10-34-311 GH-S-N-1163 DEFA10-60-311 GH-S-N-1164
DEFA11-20-315 GH-S-N-1165 DEFA11-34-315 GH-S-N-1166 DEFA11-60-315 GH-S-N-1167
DEFA11-20-319 GH-S-N-1168 DEFA11-34-319 GH-S-N-1169 DEFA11-60-319 GH-S-N-1170
DEFA11-20-323 GH-S-N-1171 DEFA11-34-323 GH-S-N-1172 DEFA11-60-323 GH-S-N-1173
DEFA11-20-327 GH-S-N-1174 DEFA11-34-327 GH-S-N-1175 DEFA11-60-327 GH-S-N-1176
DEFA11-20-331 GH-S-N-1177 DEFA11-34-331 GH-S-N-1178 DEFA11-60-331 GH-S-N-1179
DEFA11-20-335 GH-S-N-1180 DEFA11-34-335 GH-S-N-1181 DEFA11-60-335 GH-S-N-1182
DEFA11-20-339 GH-S-N-1183 DEFA11-34-339 GH-S-N-1184 DEFA11-60-339 GH-S-N-1185
DEFA11-20-343 GH-S-N-1186 DEFA11-34-343 GH-S-N-1187 DEFA11-60-343 GH-S-N-1188
* Extended delivery time




We reserve the right to make technical changes.
