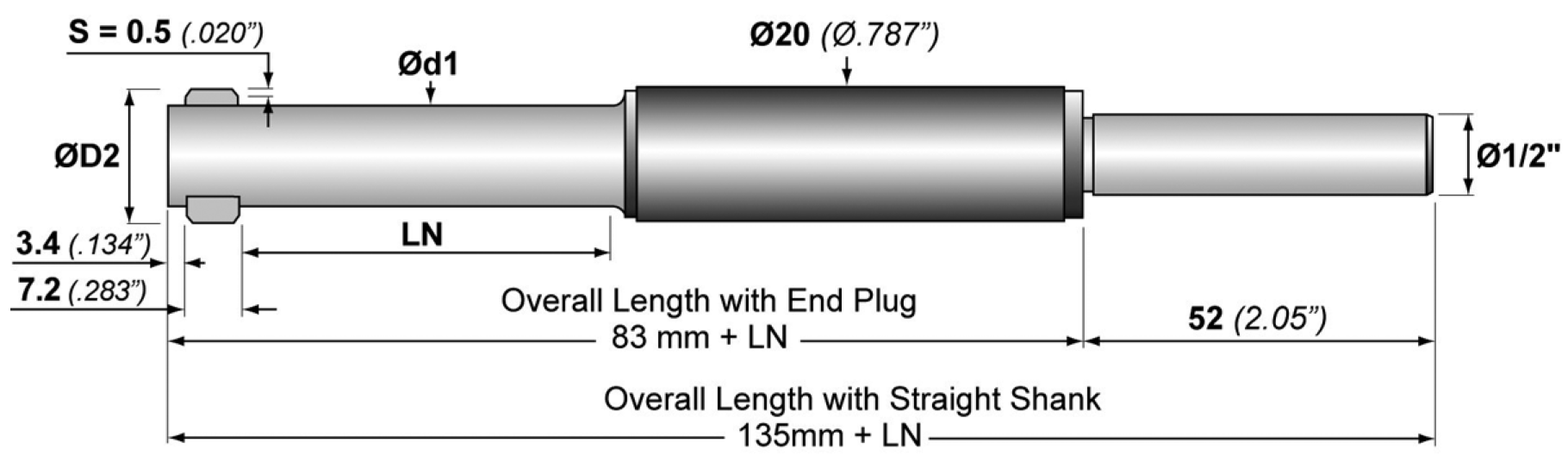

DEFA Series 16-17 Ød1 = Ødmin –.2mm (.008”)
   Tool Holder without blades TiAlN Blade Set

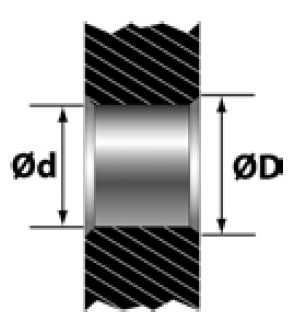

Min. Hole
Ød		 Max Chamfer
ØD		 Max
ØD2		 Order Number Order Number Order Number Order Number
Front/Back Back only
mm inches mm inches mm inches LN = 30mm LN = 60mm LN = 100mm GH-S-M-
13.2 .520 17.6 .693 18.6 .733 DEFA16-30-512-☐/__ DEFA16-60-512-☐/__ DEFA16-100-512-☐/__ -3X16 -4X16
13.4 .528 DEFA16-30-520-☐/__ DEFA16-60-520-☐/__ DEFA16-100-520-☐/__
13.6 .535 DEFA16-30-528-☐/__ DEFA16-60-528-☐/__ DEFA16-100-528-☐/__
13.8 .543 DEFA16-30-535-☐/__ DEFA16-60-535-☐/__ DEFA16-100-535-☐/__
14.0 .551 DEFA16-30-543-☐/__ DEFA16-60-543-☐/__ DEFA16-100-543-☐/__
14.2 .559 DEFA16-30-551-☐/__ DEFA16-60-551-☐/__ DEFA16-100-551-☐/__
14.4 .567 DEFA16-30-559-☐/__ DEFA16-60-559-☐/__ DEFA16-100-559-☐/__
14.6 .575 DEFA16-30-567-☐/__ DEFA16-60-567-☐/__ DEFA16-100-567-☐/__
14.8 .583 DEFA16-30-575-☐/__ DEFA16-60-575-☐/__ DEFA16-100-575-☐/__
15.0 .591 DEFA16-30-583-☐/__ DEFA16-60-583-☐/__ DEFA16-100-583-☐/__
15.2 .598 19.0 .748 20.0 .788 DEFA17-30-591-☐/__ DEFA17-60-591-☐/__ DEFA17-100-591-☐/__ -3X17 -4X17
15.4 .606 DEFA17-30-598-☐/__ DEFA17-60-598-☐/__ DEFA17-100-598-☐/__
15.6 .614 DEFA17-30-606-☐/__ DEFA17-60-606-☐/__ DEFA17-100-606-☐/__
15.8 .622 DEFA17-30-614-☐/__ DEFA17-60-614-☐/__ DEFA17-100-614-☐/__
16.0 .630 DEFA17-30-622-☐/__ DEFA17-60-622-☐/__ DEFA17-100-622-☐/__
16.2 .638 DEFA17-30-630-☐/__ DEFA17-60-630-☐/__ DEFA17-100-630-☐/__
16.4 .646 DEFA17-30-638-☐/__ DEFA17-60-638-☐/__ DEFA17-100-638-☐/__
16.6 .654 DEFA17-30-646-☐/__ DEFA17-60-646-☐/__ DEFA17-100-646-☐/__

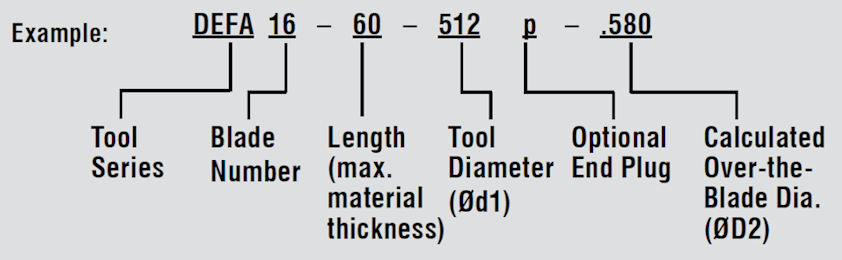

To order the tool with a pre-set chamfer size, we recommend adding
a calculated over-the-blade diameter (ØD2 = ØD + .040”) as a suffix
to the order number, otherwise a calculated default dimension is used
(ØD2 = .068” + Ød1).
The first tool in each series are STANDARD TOOLS which should be
used when you have a stable set-up and are cutting any material under 28 Rc.



Spare Parts – DEFA Series 16-17
   Order Number Description
1  GH-H-S-0102  Tension Screw
2  GH-H-S-0325  Set Screw
3  GH-S-E-0003  Eccentric Cam
4  GH-H-S-0201  Clamping Screw
5  GH-S-X-0006  Positioning Screw
6  GH-S-S-0156**  1/2” Straight Shank
 GH-S-S-0092**  End Plug
7  GH-S-G-0011  Tool Body
8  GH-S-C-0008  Gear Wheel
9  GH-S-T-0006  Torsion Spring
10  GH-S-W-0611  Blade Control-Length=30mm
 GH-S-W-0612  Blade Control-Length=60mm
 GH-S-W-0630*  Blade Control-Length=100mm
11  Blade Housing  See housing chart below
12  Blade Set
* Non-stock standard item with extended delivery time.
** Tool bodies are sold with either a straight shank or end plug, please read the ordering instructions to indicate your preference.  Other options are available and sold separately.  Please contact engineering for details.

Blade Housing Chart* – DEFA Series 16-17
Tool Holder Blade Housing Tool Holder Blade Housing Tool Holder Blade Housing
Order Number Order Number Order Number Order Number Order Number Order Number
DEFA16-30-512 GH-S-N-1465 DEFA16-60-512 GH-S-N-1466 DEFA16-100-512 GH-S-N-1467
DEFA16-30-520 GH-S-N-1471 DEFA16-60-520 GH-S-N-1472 DEFA16-100-520 GH-S-N-1473
DEFA16-30-528 GH-S-N-1477 DEFA16-60-528 GH-S-N-1478 DEFA16-100-528 GH-S-N-1479
DEFA16-30-535 GH-S-N-1483 DEFA16-60-535 GH-S-N-1484 DEFA16-100-535 GH-S-N-1485
DEFA16-30-543 GH-S-N-1489 DEFA16-60-543 GH-S-N-1490 DEFA16-100-543 GH-S-N-1491
DEFA16-30-551 GH-S-N-1495 DEFA16-60-551 GH-S-N-1496 DEFA16-100-551 GH-S-N-1497
DEFA16-30-559 GH-S-N-1501 DEFA16-60-559 GH-S-N-1502 DEFA16-100-559 GH-S-N-1503
DEFA16-30-567 GH-S-N-1507 DEFA16-60-567 GH-S-N-1508 DEFA16-100-567 GH-S-N-1509
DEFA16-30-575 GH-S-N-1513 DEFA16-60-575 GH-S-N-1514 DEFA16-100-575 GH-S-N-1515
DEFA16-30-583 GH-S-N-1519 DEFA16-60-583 GH-S-N-1520 DEFA16-100-583 GH-S-N-1521
DEFA17-30-591 GH-S-N-1525 DEFA17-60-591 GH-S-N-1526 DEFA17-100-591 GH-S-N-1527
DEFA17-30-598 GH-S-N-1531 DEFA17-60-598 GH-S-N-1532 DEFA17-100-598 GH-S-N-1533
DEFA17-30-606 GH-S-N-1537 DEFA17-60-606 GH-S-N-1538 DEFA17-100-606 GH-S-N-1539
DEFA17-30-614 GH-S-N-1543 DEFA17-60-614 GH-S-N-1544 DEFA17-100-614 GH-S-N-1545
DEFA17-30-622 GH-S-N-1549 DEFA17-60-622 GH-S-N-1550 DEFA17-100-622 GH-S-N-1551
DEFA17-30-630 GH-S-N-1555 DEFA17-60-630 GH-S-N-1556 DEFA17-100-630 GH-S-N-1557
DEFA17-30-638 GH-S-N-1561 DEFA17-60-638 GH-S-N-1562 DEFA17-100-638 GH-S-N-1563
DEFA17-30-646 GH-S-N-1567 DEFA17-60-646 GH-S-N-1568 DEFA17-100-646 GH-S-N-1569
* Extended delivery time




We reserve the right to make technical changes.
