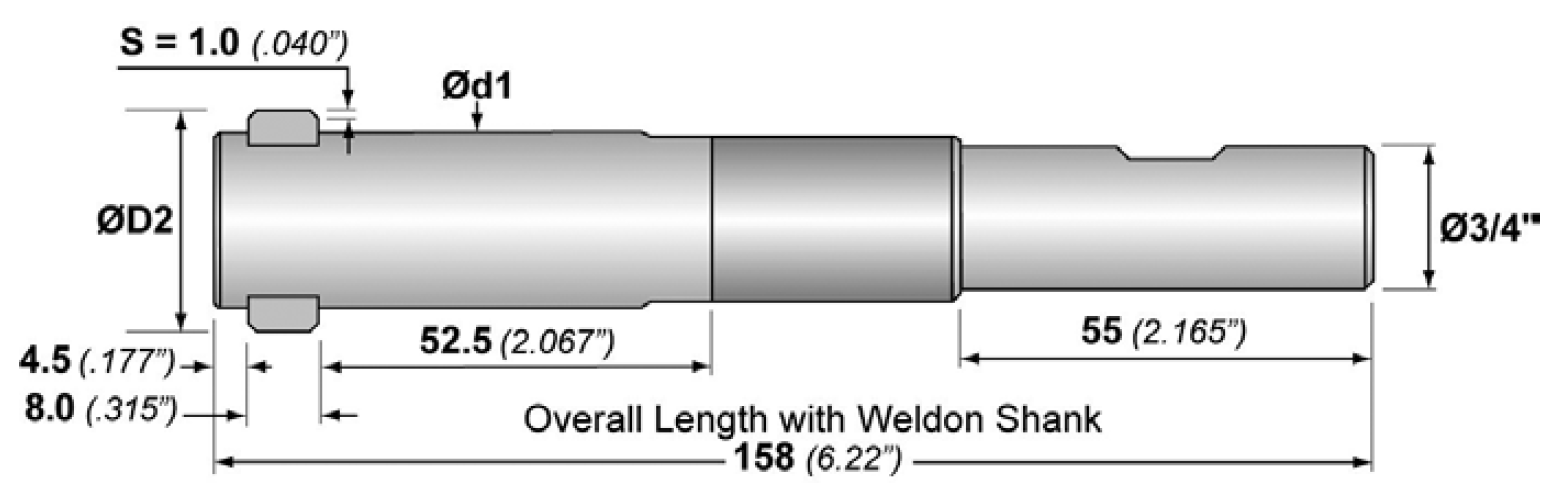

DEFA Series 22-24 Ød1 = Ødmin –.2mm (.008”)
   Tool Holder without blades Blade Set

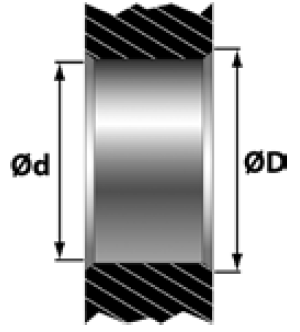

Min. Hole
Ød		 Max Chamfer
ØD		 Max
ØD2		 Order Number Order Number
Front/Back Back only
mm inches mm inches mm inches GH-S-M-
20.7 .815 25.2 .992 27.2 1.072 DEFA22-807/____ -3X22 -4X22
23.2 .913 27.5 1.083 29.5 1.163 DEFA24-906/____ -3X24 -4X24
To order the tool with a pre-set chamfer size, we recommend adding
a calculated over-the-blade diameter (ØD2 = ØD + .080”) as a suffix
to the order number, otherwise a calculated default dimension is used
as follows:    Series 22: ØD2 = 1.057” (26.7mm)
                     Series 24: ØD2 = 1.120” (28.4mm)



Spare Parts – DEFA Series 22-24*
   Order Number Description Series
1  GH-H-S-0201  Clamping Screw  22-24
2  GH-H-S-0102  Tension Screw  22
 GH-H-S-0103  Tension Screw  24
3  GH-H-S-0325  Set Screw  22-24
4  GH-S-E-0003  Eccentric Cam  22
 GH-S-E-0004  Eccentric Cam  24
5  GH-S-X-0006  Positioning Screw  22-24
6  GH-S-S-0157  3/4” Weldon Shank  22-24
7  GH-S-C-0008  Gear Wheel  22-24
8  GH-S-T-0006  Torsion Spring  22-24
9  GH-S-W-0014  Blade Control  22-24
10  GH-S-G-0023  Tool Body  22
 GH-S-G-0024  Tool Body  24
11  Blade Set    22-24
* Non-stock standard item with extended delivery time




We reserve the right to make technical changes.
