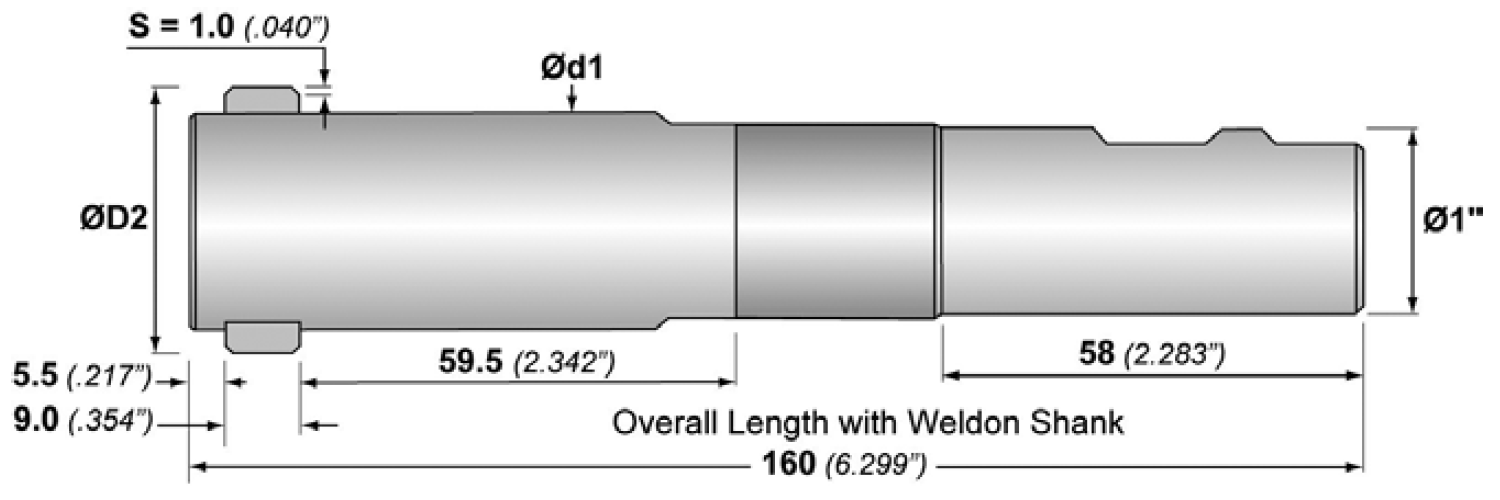

DEFA Series 26-28 Ød1 = Ødmin –.2mm (.008”)
   Tool Holder without blades Blade Set

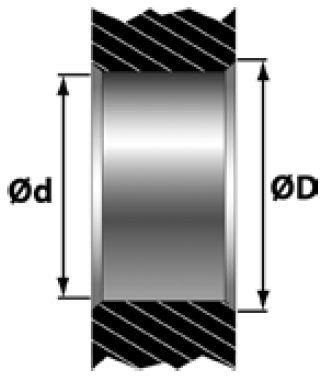

Min. Hole
Ød		 Max Chamfer
ØD		 Max
ØD2		 Order Number Order Number
Front/Back Back only
mm inches mm inches mm inches GH-S-M-
26.2 1.031 31.8 1.252 33.8 1.331 DEFA26-1024/____ -3X26 -4X26
29.2 1.150 34.8 1.370 36.8 1.449 DEFA28-1142/____ -3X28 -4X28
To order the tool with a pre-set chamfer size, we recommend adding
a calculated over-the-blade diameter (ØD2 = ØD + .080”) as a suffix
to the order number, otherwise a calculated default dimension is used
as follows:    Series 26: ØD2 = 1.235” (31.3mm)
                     Series 28: ØD2 = 1.370” (34.8mm)



Spare Parts – DEFA Series 26-28*
   Order Number Description Series
1  GH-H-S-0202  Clamping Screw  26-28
2  GH-H-S-0105  Tension Screw  26
 GH-H-S-0106  Tension Screw  26
3  GH-H-S-0327  Set Screw  26-28
4  GH-S-E-0005  Eccentric Cam  26
 GH-S-E-0006  Eccentric Cam  28
5  GH-S-X-0007  Positioning Screw  26-28
6  GH-S-S-0163  1” Weldon Shank  26-28
7  GH-S-C-0009  Gear Wheel  26-28
8  GH-S-T-0007  Torsion Spring  26-28
9  GH-S-W-0015  Blade Control  26-28
10  GH-S-G-0025  Tool Body  26
 GH-S-G-0026  Tool Body  26
11  Blade Set    26-28
* Non-stock standard item with extended delivery time




We reserve the right to make technical changes.
