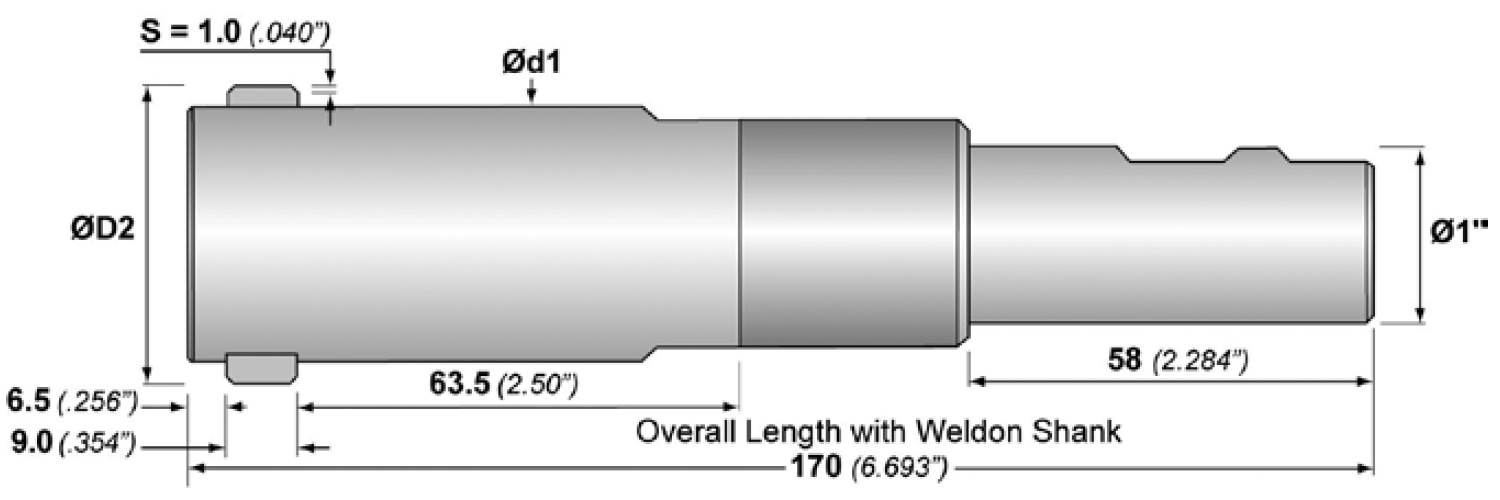

DEFA Series 30-32 Ød1 = Ødmin –.2mm (.008”)
   Tool Holder without blades Blade Set

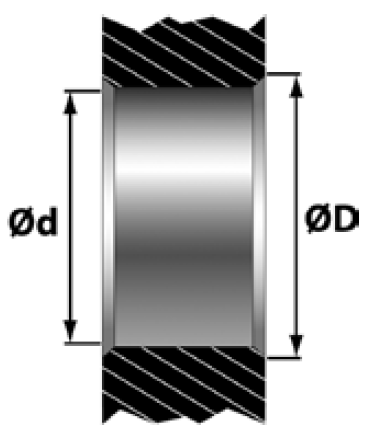

Min. Hole
Ød		 Max Chamfer
ØD		 Max
ØD2		 Order Number Order Number
Front/Back Back only
mm inches mm inches mm inches GH-S-M-
32.2 1.268 37.8 1.488 39.8 1.568 DEFA30-1260/____ -3X30 -4X30
36.2 1.425 41.8 1.646 43.8 1.724 DEFA32-1417/____ -3X32 -4X32
To order the tool with a pre-set chamfer size, we recommend adding
a calculated over-the-blade diameter (ØD2 = ØD + .080”) as a suffix
to the order number, otherwise a calculated default dimension is used
as follows:    Series 30: ØD2 = 1.495” (37.9mm)
                     Series 32: ØD2 = 1.620” (41.1mm)

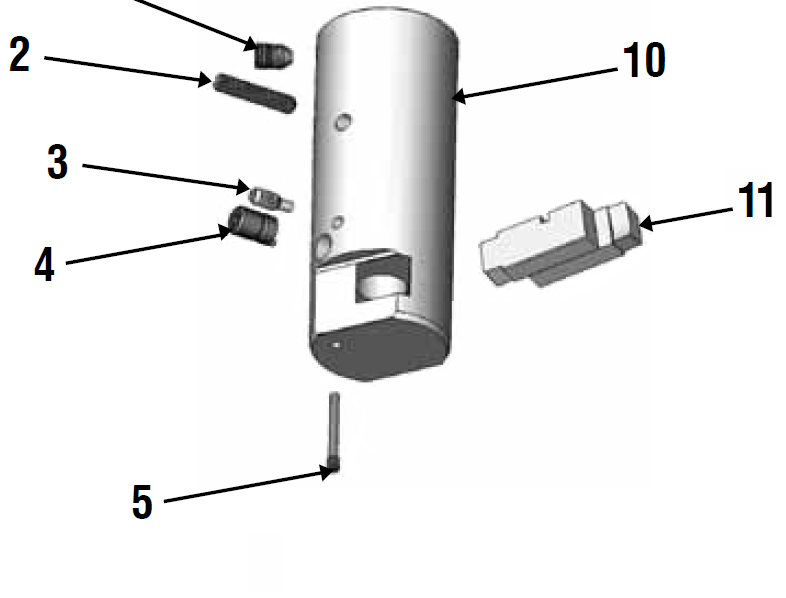

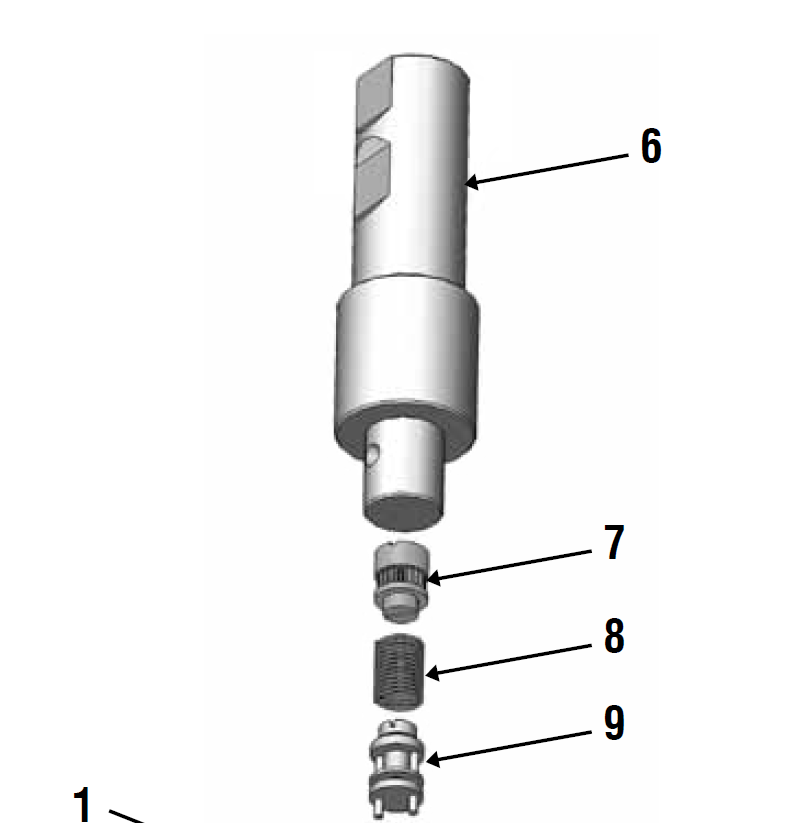

Spare Parts – DEFA Series 30-32*
   Order Number Description Series
1  GH-H-S-0202  Clamping Screw  30-32
2  GH-H-S-0107  Tension Screw  30-32
3  GH-H-S-0327  Set Screw  30-32
4  GH-S-E-0007  Eccentric Cam  30
 GH-S-E-0008  Eccentric Cam  32
5  GH-S-X-0007  Positioning Screw  30-32
6  GH-S-S-0158  1” Weldon Shank  30-32
7  GH-S-C-0009  Gear Wheel  30-32
8  GH-S-T-0007  Torsion Spring  30-32
9  GH-S-W-0015  Blade Control  30-32
10  GH-S-G-0027  Tool Body  30
 GH-S-G-0028  Tool Body  32
11  Blade Set    30-32
* Non-stock standard item with extended delivery time




We reserve the right to make technical changes.
