VEX-S Series B, C and D - 1xd Tools
Tool Holder

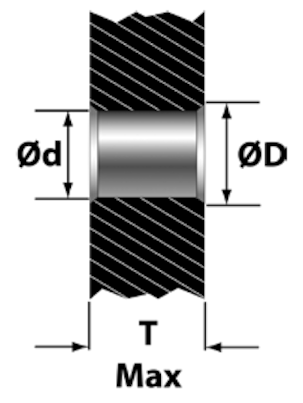

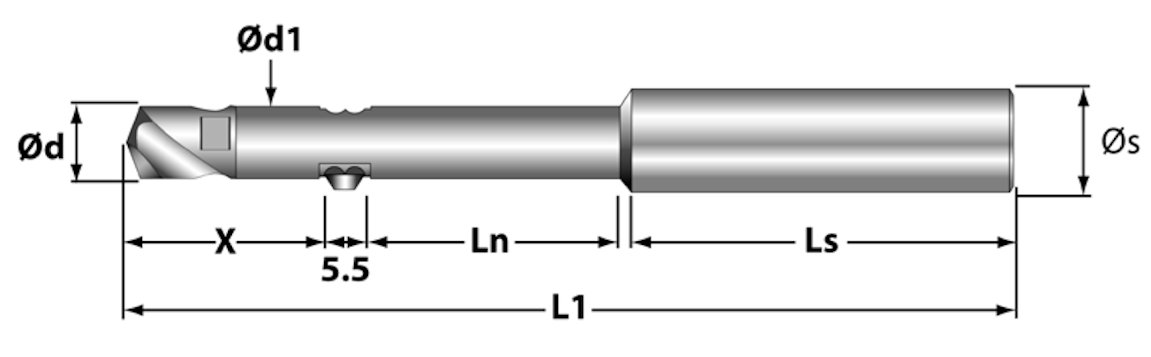

Order Number		 Ød Range mm T Max Ød1 X L1 Ln Ls Øs
GH-Q-O-4000 5.0 - 5.4 5.0 (.197”) 4.9 (.193”) 18.9 (.744”) 70.5 (2.776”) 7.5 (.295”) 36.0 (1.417”) 8.0 (.315”)
GH-Q-O-4001 5.5 - 5.9 5.5 (.217”) 5.4 (.213”) 19.8 (.780”) 71.6 (2.776”) 8.0 (.315”) 36.0 (1.417”) 8.0 (.315”)
GH-Q-O-4052 6.0 - 6.4 6.0 (.236”) 5.9 (.232”) 20.6 (.811”) 84.1 (3.311”) 15.0 (.591”) 40.0 (1.575”) 10.0 (.394”)
GH-Q-O-4053 6.5 - 6.9 6.5 (.256”) 6.4 (.252”) 21.6 (.850”) 86.1 (3.390”) 16.0 (.630”) 40.0 (1.575”) 10.0 (.394”)
GH-Q-O-4054 7.0 - 7.4 7.0 (.276”) 6.9 (.272”) 23.8 (.937”) 89.3 (3.518”) 17.0 (.669”) 40.0 (1.575”) 10.0 (.394”)
GH-Q-O-4055 7.5 - 7.9 7.5 (.295”) 7.4 (.291”) 24.6 (.969”) 91.1 (3.587”) 18.0 (.709”) 40.0 (1.575”) 10.0 (.394”)
GH-Q-O-4056 8.0 - 8.4 8.0 (.315”) 7.9 (.311”) 25.4(1.000”) 92.9 (3.658”) 19.0 (.748”) 45.0 (1.772”) 12.0 (.472”)


VEX-S Series B, C and D - 1xd Drills and Blades
Chamfer Blade Order Number (fab)**
Ød Drill*
mm   inches		 Tool Holder
Order Number		 Drill Tip
Order #		 (0.25mm x 45°)
GH-Q-M-		 (0.5mm x 45°)
GH-Q-M-		 (0.75mm x 45°)
GH-Q-M-		 (1.0mm x 45°)
GH-Q-M-
B 5.0mm   (.197) GH-Q-O-4000 P-S-B2-0500-1A 5 -30204 (5.5) -30205 (6.0) -30206 (6.5) -30207 (7.0)
5.1mm   (.201) GH-Q-O-4000 P-S-B2-0510-1A -30204 (5.5) -30205 (6.0) -30206 (6.5) -30207 (7.0)
5.5mm   (.217) GH-Q-O-4001 P-S-B2-0550-1A -30205 (6.0) -30206 (6.5) -30207 (7.0) -30208 (7.5)
C 6.0mm   (.236) GH-Q-O-4052 P-S-C2-0600-1A -30206 (6.5) -30207 (7.0) -30208 (7.5) -30209 (8.0)
6.35mm  (1/4") GH-Q-O-4052 P-S-C2-0635-1A -30206 (6.5) -30207 (7.0) -30208 (7.5) -30209 (8.0)
6.5mm   (.256) GH-Q-O-4053 P-S-C2-0650-1A -30207 (7.0) -30208 (7.5) -30209 (8.0) -30210 (8.5)
6.8mm   (.268) GH-Q-O-4053 P-S-C2-0680-1A -30207 (7.0) -30208 (7.5) -30209 (8.0) -30210 (8.5)
D 7.0mm   (.276) GH-Q-O-4054 P-S-D2-0700-1A -30208 (7.5) -30209 (8.0) -30210 (8.5) -30211 (9.0)
7.14mm(9/32") GH-Q-O-4054 P-S-D2-0714-1A -30208 (7.5) -30209 (8.0) -30210 (8.5) -30211 (9.0)
7.5mm   (.295) GH-Q-O-4055 P-S-D2-0750-1A -30209 (8.0) -30210 (8.5) -30211 (9.0) -30212 (9.5)
7.94mm(5/16") GH-Q-O-4055 P-S-D2-0794-1A -30210 (8.5) -30211 (9.0) -30212 (9.5) -30213(10.0)
8.0mm  (.315") GH-Q-O-4056 P-S-D2-0800-1A -30210 (8.5) -30211 (9.0) -30212 (9.5) -30213(10.0)
8.4mm  (.331") GH-Q-O-4056 P-S-D2-0840-1A -30211 (9.0) -30212 (9.5) -30213 (10.0) -30214 (10.5)
*Other drill sizes available on request. Example: Ød = 8.33mm (.328”) - P-S-D4-0833-1A
** Chamfer blades are interchangeable; maximum chamfer diameter ØD = hole Ød + 2mm
















Spare Parts - VEX-S 1xd
Tool Holder 1 2 3 4 5 6
GH-Q-O- Distance Pin Spring Control Bolt Blade Drill Tip Screw Set
4000
4001		 GH-Q-E-0052 GH-H-F-0019 GH-Q-E-0008 See Below GH-H-S-0127

Bore Range Tool Holder SNAP 5 Blade, Carbide TiAIN 90°, front and back cutting
Order Number and (Chamfer ØD mm)
5.0-5.49 GH-Q-O-4000 GH-Q-M-30205 (6.0)   GH-Q-M-30206 (6.5)   GH-Q-M-30207 (7.0)
5.5-5.99 GH-Q-O-4001 GH-Q-M-30206 (6.5)   GH-Q-M-30207 (7.0)   GH-Q-M-30208 (7.5)
6.0-6.49 GH-Q-O-4052 GH-Q-M-30207 (7.0)   GH-Q-M-30208 (7.5)   GH-Q-M-30209 (8.0)
6.5-6.99 GH-Q-O-4053 GH-Q-M-30208 (7.5)   GH-Q-M-30209 (8.0)   GH-Q-M-30210 (8.5)
7.0-7.49 GH-Q-O-4054 GH-Q-M-30209 (8.0)   GH-Q-M-30210 (8.5)   GH-Q-M-30211 (9.0)
7.5-7.99 GH-Q-O-4055 GH-Q-M-30210 (8.5)   GH-Q-M-30211 (9.0)   GH-Q-M-30212 (9.5)
8.0-8.49 GH-Q-O-4056 GH-Q-M-30211 (9.0)   GH-Q-M-30212 (9.5)   GH-Q-M-30213 (10.0)
8.5-8.99 GH-Q-O-4057 GH-Q-M-30212 (9.5)   GH-Q-M-30213 (10.0) GH-Q-M-30214 (10.5)
9.0-9.49 GH-Q-O-4058 GH-Q-M-30213 (10.0) GH-Q-M-30214 (10.5) GH-Q-M-30215 (11.0)
9.5-9.99 GH-Q-O-4059 GH-Q-M-30214 (10.5) GH-Q-M-30215 (11.0) GH-Q-M-30216 (11.5)
10.0-10.49 GH-Q-O-4060 GH-Q-M-30215 (11.0) GH-Q-M-30216 (11.5) GH-Q-M-30217 (12.0)
10.5-10.99 GH-Q-O-4061 GH-Q-M-30216 (11.5) GH-Q-M-30217 (12.0) GH-Q-M-30218 (12.5)
11.0-11.49 GH-Q-O-4062 GH-Q-M-30217 (12.0) GH-Q-M-30218 (12.5) GH-Q-M-30219 (13.0)




We reserve the right to make technical changes.
