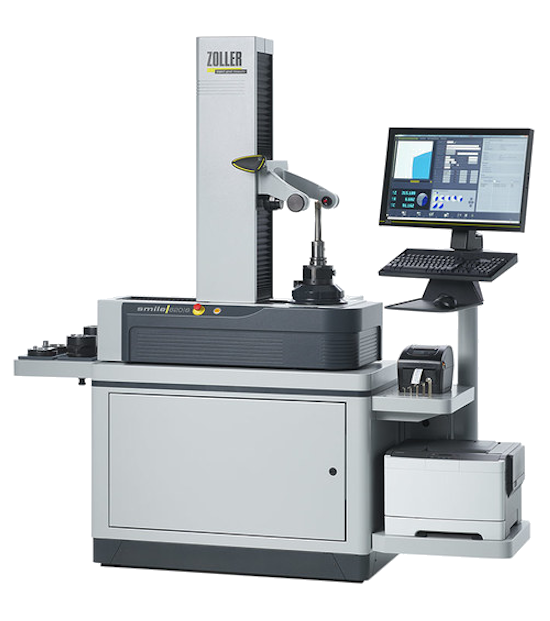

| Easy to operate, equipped with all required standard measuring functions, and at an attractive price, the ZOLLER »smile« universal tool presetting and measuring machine has been designed specifically for measuring tools for manufacturing production. Preset and measure your tools prior to use. This lets you benefit across the board, with fewer rejects and machine crashes, lower production costs and higher productivity. |
 |
Available in up to seven selectable measuring |
Dynamic cross hairs over entire measuring window |
| Technical Data | Measuring range Z | Measuring range X | Diameter | Snap gauge ∅ |
| »smile 320« | 350 mm / 13.8" | 160 mm / 6.2" | 320 mm / 12.6" | 0 mm |
| »smile 420« | 420-600*-800* mm / 16.5-23.6*-31.5*" | 210 mm / 8.3" | 420 mm / 16.5" | 100 mm / 3.9" |
| »smile 620« | 420-600*-800* mm / 16.5-23.6*-31.5*" | 310 mm / 12.2" | 620 mm / 24.4" | 100 mm / 3.9" |
| Note: The quoted measuring range may be reduced under circumstances when using adapters and tool posts. The maximum tool diameter X is reduced when selecting the Snap gauge ∅ * optionally available: the snap gauge diameter will be reduced accordingly. |
||||
 |
 |

|
 |

|
|
 |

|
 |

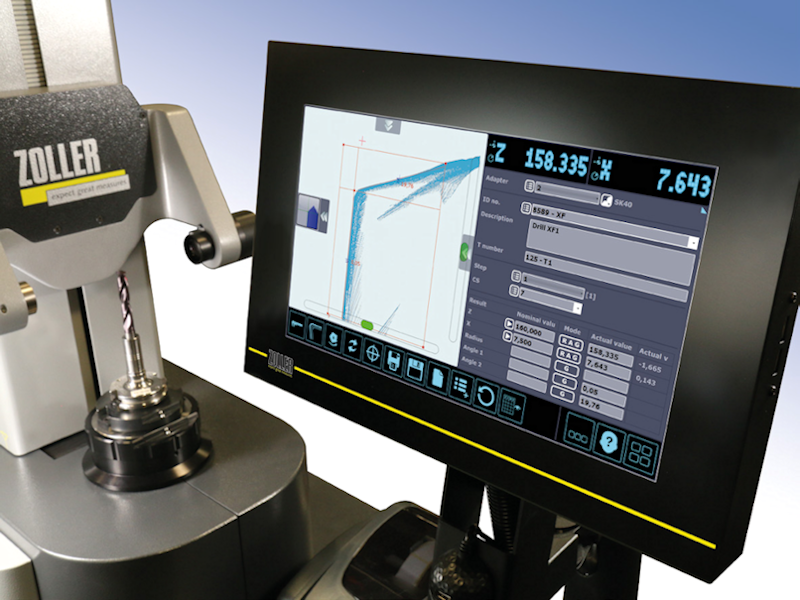

 Autofocus and ROD encoder |

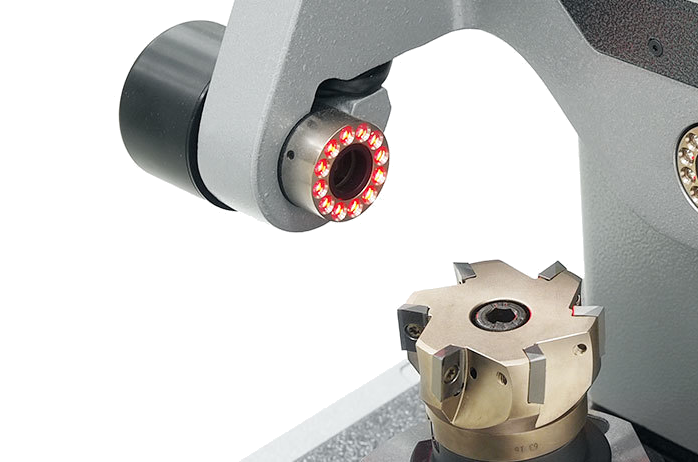

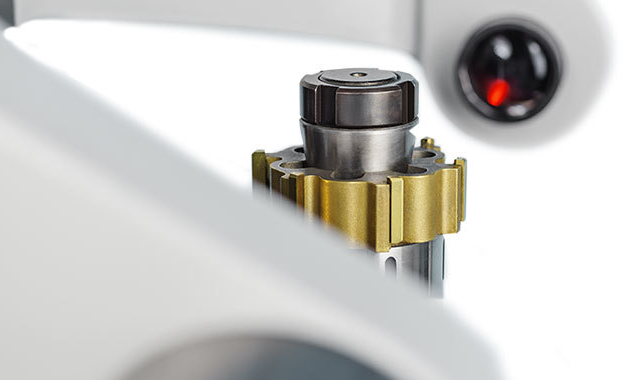

 Cutting edge inspection |

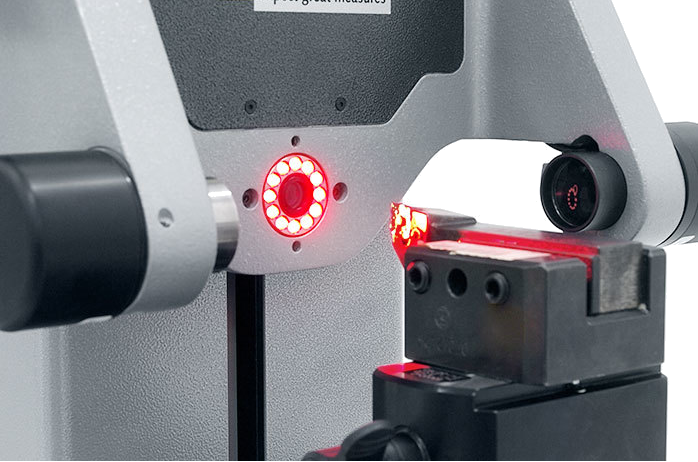

 Center height measuring device |
 Snap gauge |
 Data transmission |
 Tool identification |
|

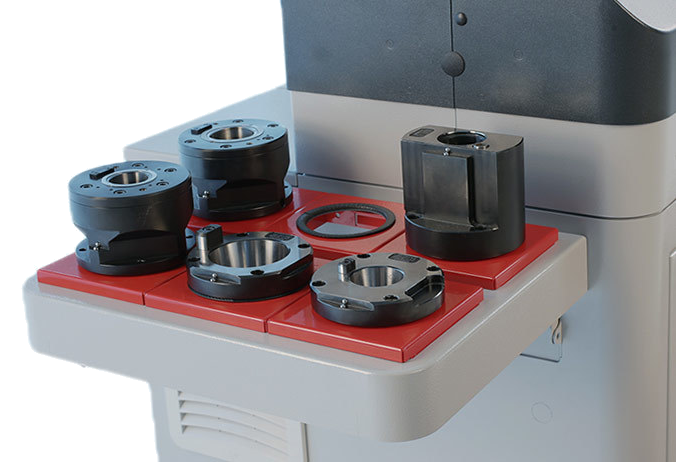

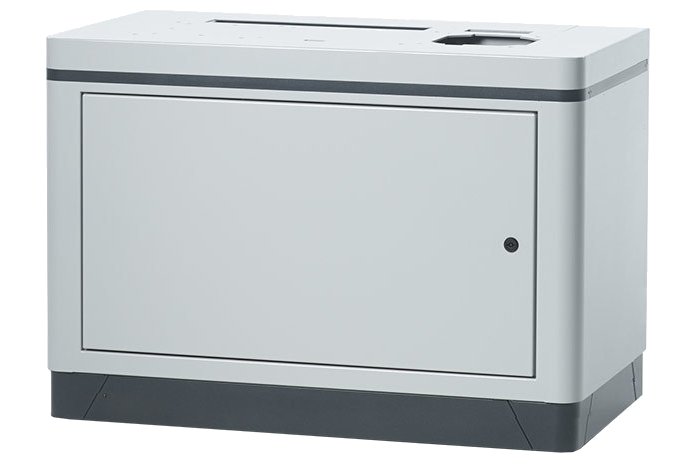

 Table system |
 Storage boards |
 Adapter or tool trolley |
|
 Maintainance unit |
 Label printer |
 Color laser printer |
|
 USB camera |
 Standing aid |
 Protective cover |
 |

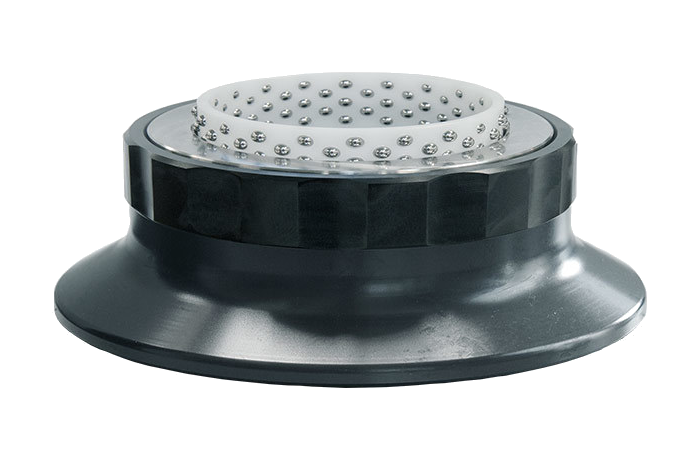

 SK 50 high-precision
|

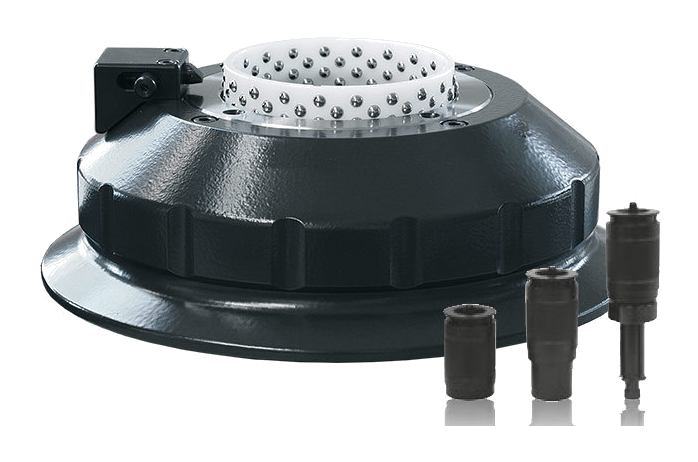

 »pcs-mini« high-precision
|
 »hgv-uz« high-precision
|
 SK 25 - 60 steep
|
 HSK 25 - 63 hollow shank
|
 VDI 16 - 80 adapter |
|
 Capto C 3 - 10 adapter |
 KM 32 - 63 adapter |
 Hydro-expansion clamping
|
|
 SK 25 - 60
|
 HSK 25 - 63 hollow shank
|
 Capto C 3 - 6
|
|
 VDI 16 - 60
|
 KM 32 - 63
|
 Hydro-expansion chuck
|
 |
|
 |
