VEX-P Series C Tool Holders Ødx1.5 with Coolant Through | ||||||||
Tool Holder Order Number |

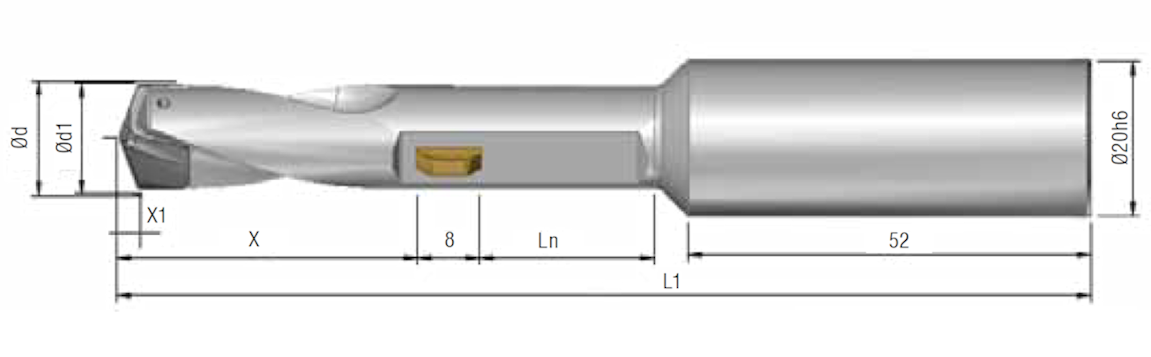

Ød Range mm | Ød1 | L1 | Ln | X1 | X | ||
GH-Q-O-4250E | 11.0 - 11.4 | 10.8 (.425”) | 116.9 (4.602”) | 17.2 (.677”) | 2.5 (.099”) | 33.5 (1.319”) | ||
GH-Q-O-4251E | 11.5 - 11.9 | 11.3 (.445”) | 118.2 (4.654”) | 18.0 (.709”) | 2.6 (.102”) | 34.3 (1.350”) | ||
GH-Q-O-4252E | 12.0 - 12.4 | 11.8 (.465”) | 119.4 (4.701”) | 18.7 (.736”) | 2.7 (.106”) | 35.1 (1.382”) | ||
GH-Q-O-4253E | 12.5 - 12.9 | 12.3 (.484”) | 120.7 (4.752”) | 19.5 (.768”) | 2.8 (.110”) | 35.8 (1.409”) | ||
GH-Q-O-4254E | 13.0 - 13.4 | 12.8 (.504”) | 121.9 (4.799”) | 20.2 (.795”) | 2.9 (.114”) | 36.6 (1.441”) | ||
GH-Q-O-4255E | 13.5 - 13.9 | 13.3 (.524”) | 123.2 (4.850”) | 21.0 (.827”) | 3.0 (.118”) | 37.3 (1.469”) | ||
VEX-P Series C Drills & Chamfer Blades | |||||||
Chamfer Blade Order Number (fab)* | |||||||
Ød Drill* mm inches |
Tool Holder Order Number |
Carbide TiAlN Drill Order # |
(0.25mm x 45°) GH-Q-M- |
(0.5mm x 45°) GH-Q-M- |
(0.75mm x 45°) GH-Q-M- |
(1.0mm x 45°) GH-Q-M- |
|
11.0mm (.433") | GH-Q-O-4250E | P-P-C-1100-1A | 8 | -03726 (11.5) | -03727 (12.0) | -03728 (12.5) | - |
11.1mm (.437") | GH-Q-O-4250E | P-P-C-1110-1A | -03727 (12.0) | -03728 (12.5) | -03729 (13.0) | - | |
11.5mm (.453") | GH-Q-O-4251E | P-P-C-1150-1A | -03727 (12.0) | -03728 (12.5) | -03729 (13.0) | - | |
11.9mm (.469") | GH-Q-O-4251E | P-P-C-1190-1A | -03728 (12.5) | -03729 (13.0) | -03730 (13.5) | - | |
12.0mm (.472") | GH-Q-O-4252E | P-P-C-1200-1A | 12 | -03740 (12.5) | -03741 (13.0) | -03742 (13.5) | -03743 (14.0) |
12.5mm (.492") | GH-Q-O-4253E | P-P-C-1250-1A | -03741 (13.0) | -03742 (13.5) | -03743 (14.0) | -03744 (14.5) | |
12.7mm (.500") | GH-Q-O-4253E | P-P-C-1270-1A | -03741 (13.0) | -03742 (13.5) | -03743 (14.0) | -03744 (14.5) | |
13.0mm (.511") | GH-Q-O-4254E | P-P-C-1300-1A | -03742 (13.5) | -03743 (14.0) | -03744 (14.5) | -03745 (15.0) | |
13.5mm (.531") | GH-Q-O-4255E | P-P-C-1350-1A | -03743 (14.0) | -03744 (14.5) | -03745 (15.0) | -03746 (15.5) | |
*Special sizes and geometries available on request |
|
Spare Parts - VEX-P | |||||||
Bore Range | Series | 2 Control Bolt |
3 Spring |
4 Distance Pin |
5 Cap Screw GH-H-S- |
Hex Wrench GH-H-S- |
Hex Wrench Description mm |
11.0 - 11.99 | C | GH-Q-E-0078 | GH-H-F-0027 | GH-Q-E-0503 | 0538-1 | 2100 | 2.5 |
12.0 - 13.99 | C | GH-Q-E-0002 | GH-H-F-0012 | GH-Q-E-0514 | 0524-1 | 2103 | 3.0 |
14.0 - 15.49 | D | GH-Q-E-0002 | GH-H-F-0012 | GH-Q-E-0514 | 0524-1 | 2103 | 3.0 |
15.5 - 17.0 | D | GH-Q-E-0002 | GH-H-F-0012 | GH-Q-E-0515 | 0524-1 | 2103 | 3.0 |
Bore Range | Series | 6 Torx Screw |
Clamp Screw Description |
Torx Wrench GH-H-S- |
Torque Setting Nm |
Recommended Precision Torque Wrench |
|
Wrench Order # | Description | ||||||
11.0 - 11.99 | C | GH-H-S-0038 | M2.2 x 10.2 T7 | 2001 | 1.1 | HT-TX-H-0002 | Handle 1.1 NM with IP7 Torx Bit |
12.0 - 13.99 | C | GH-H-S-0038 | M2.2 x 10.2 T7 | 2001 | 1.1 | ||
14.0 - 15.49 | D | GH-H-S-0035 | M2.5 x 12 T8 | 2002 | 1.2 | HT-TX-H-0003 | Handle 1.2 NM with T8 Torx Bit |
15.5 - 17.0 | D | GH-H-S-0035 | M2.5 x 12 T8 | 2002 | 1.2 |
|
