| Ø45 Three and Single Bladed Countersink Tool with Through Coolant | |||||||
| THREE BLADED TOOL BODY & CUTTING BLADES | |||||||

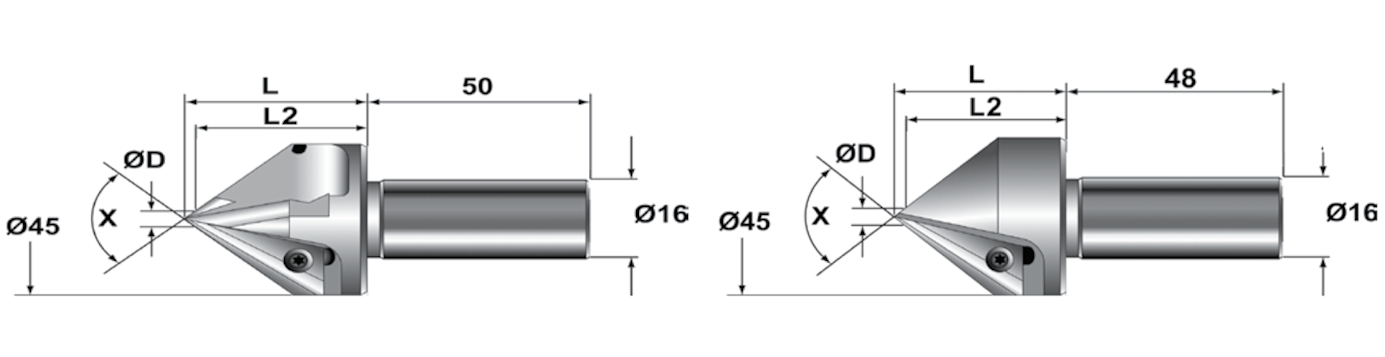

| Size | Angle (X) | ØD | L | L2 | Shank Øs | Three Bladed Description | Order Number |
| GHK 45 | 100° | 5 | 46.1 | 44.0 | 16mm | Tool Body GH-K45/100° w/16mm shank | GH-K-O-0108 |
| Blade Set*, HSS-TiN | GH-K-M-0002 | ||||||
| Blade Set*, Carbide | GH-K-M-0008 | ||||||
| Blade Set*, Carbide-TiN | GH-K-M-0018 | ||||||
| Shim, 0.05mm thick, trio | GH-K-U-0002 | ||||||
| GHK 45 | 90° | 4 | 46.56 | 44.56 | 16mm | Tool Body GH-K45/90° w/16mm shank | GH-K-B-0012 |
| Blade Set*, HSS-TiN | GH-K-M-0002 | ||||||
| Blade Set*, Carbide | GH-K-M-0008 | ||||||
| Blade Set*, Carbide-TiN | GH-K-M-0018 | ||||||
| Shim, 0.05mm thick, trio | GH-K-U-0002 | ||||||
| GHK 45 | 60° | 9 | 63.03 | 55.23 | 16mm | Tool Body GH-K45/60° w/16mm shank | GH-K-B-0612 |
| Blade Set*, Carbide | GH-K-M-0608 | ||||||
| Blade Set*, Carbide-TiALN | GH-K-M-0618 | ||||||
| Shim, 0.05mm thick, trio | GH-K-U-0005 | ||||||
| SINGLE BLADED TOOL BODY & CUTTING BLADES | |||||||
| Size | Angle (X) | ØD | L | L2 | Shank Øs | Single Bladed Description | Order Number |
| GHK 45 | 90° | 4 | 46.6 | 44.6 | 16mm | Tool Body GH-K45/90° w/16mm shank | GH-K-B-0011 |
| Blade Set*, HSS-TiN | GH-K-M-0028 | ||||||
| Blade Set*, Carbide | GH-K-M-0029 | ||||||
| Blade Set*, Carbide-TiN | GH-K-M-0030 | ||||||
| Shim, 0.05mm thick, trio | GH-K-U-0002 | ||||||
| ** IMPORTANT NOTE: All tool bodies are sold without cutting blades. Single bladed countersink tools; cutting blades are sold per piece. Three bladed countersink tools; cutting blades are sold and packaged in sets of three (trio) i.e. 1 set = 3pcs. ØD = Minimum recommended countersink *Use single blade design only with power feed and stable ridge set-up |
|||||||
| Spare Parts | |||||||
| GH-K 45 | 90° regrind fixture | GH-K-V-0021 | Torx screw GH-K45 GH-H-S-0009 |
Torx driver T15 GH-H-S-2016 |
|||
| 60° regrind fixture | GH-K-V-0024 | ||||||
| ** NOTE: 100° holders use standard 90° blades. Uncoated carbide can be requested with alternative coatings. |
|||||||

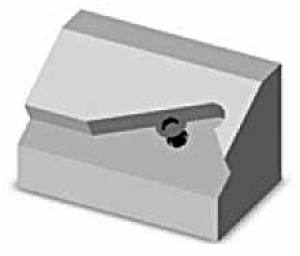

| Regrindable Cutting Blades |
| To increase the economy of the precision countersinking tool, the single and triple blades can be reground to original accuracy using available re-grind fixtures. When regrinding pay attention to the following details: • Triple blade sets are matched and numbered. These numbered sets should be kept as a set of three. • Regrind the 30° radial rake only enough to renew a sharp edge. The maximum regrind depth is 1.0mm for GH-K25 and 1.4mm for GH-K45. • Appropriate safety measures should be used when grinding Carbide.  |
 |
|
 |
