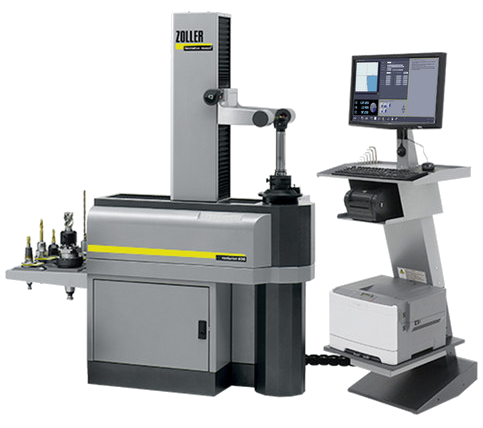

»venturion«

Regardless of your requirements, the ZOLLER »venturion« is available in an optimum configuration and is uniquely designed to meet the specific needs of your production processes. It combines outstanding and unique human engineering with maximum flexibility and precision. The robust »venturion« is ideal for every CNC production, highest demands on precision as well as the use
of big heavy tools.

Available in up to seven selectable measuring
ranges in Z and X

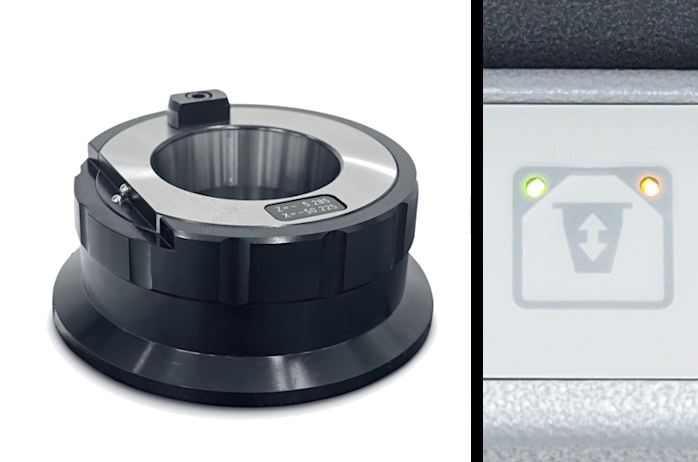

High-precision spindle »ace«
High precision spindle ISO 50 with integrated
calibration edges, locking device 4 x 90°,

spindle brake

Membrane keyboard for power-operated
spindle brake and spindle lock

Lightweight metal construction with optimal
thermal conductive capacity for use in

workshops

Electronic fine adjustment of the X and Z axis
ZOLLER image processing software »pilot 2 mT«,
or »pilot 3.0«

Heidenhain glass scales for high measuring accuracy

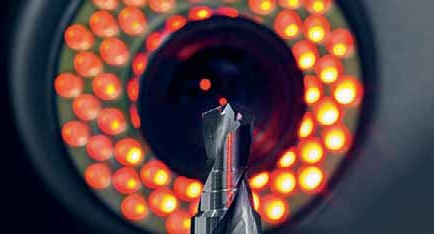

CCD camera with telecentric lens
Dynamic cross hairs over entire measuring window
Analog focusing display for focusing the tool cutting edge
Automatic cutting edge recognition, also greater than 90°
Cutting edge inspection with 30-fold magnification
Control unit »cockpit« / Manual projector function / Adapter and tool management
Zero point monitoring for process reliability
Numerous measuring programs, for example, concentricity and run-out
Machine table

Technical Data	Measuring range Z	Measuring range X	Diameter	Snap gauge ∅
»venturion 450«	450 mm / 17.7"	200-300^* mm / 7.9-11.8"	400-600^* mm / 15.7-23.6"	100 mm / 3.9"
»venturion 450/6«	600 mm / 23.6"	200-300^* mm / 7.9-11.8"	400-600^* mm / 15.7-23.6"	100 mm / 3.9"
»venturion 450/8«	800 mm / 31.5"	200-300^* mm / 7.9-11.8"	400-600^* mm / 15.7-23.6"	100 mm / 3.9"
»venturion 600«	600 mm / 23.6"	220 mm / 8.7"	440-540^-720^ mm / 17.3-21.2-28.3"	200 mm / 7.9"
»venturion 600/8«	800 mm / 31.5"	220 mm / 8.7"	440 mm / 17.3"	200 mm / 7.9"
»venturion 600/10«	1000 mm / 39.4"	220 mm / 8.7"	440 mm / 17.3"	200 mm / 7.9"
»venturion 800«	800 mm / 31.5"	500 mm / 19.7"	1000-1200^* mm / 39.4-47.2"	200 mm / 7.9"
»venturion 800/6«	600 mm / 23.6"	500 mm / 19.7"	1000 mm / 39.4"	200 mm / 7.9"
»venturion 800/10«	1000 mm / 39.4"	500 mm / 19.7"	1000 mm / 39.4"	200 mm / 7.9"
»venturion 800/12«	1200 mm / 47.2"	500 mm / 19.7"	1000 mm / 39.4"	200 mm / 7.9"
Note: The quoted measuring range may be reduced under circumstances when using adapters and tool posts. * The maximum tool diameter X is reduced when selecting the Snap gauge ∅

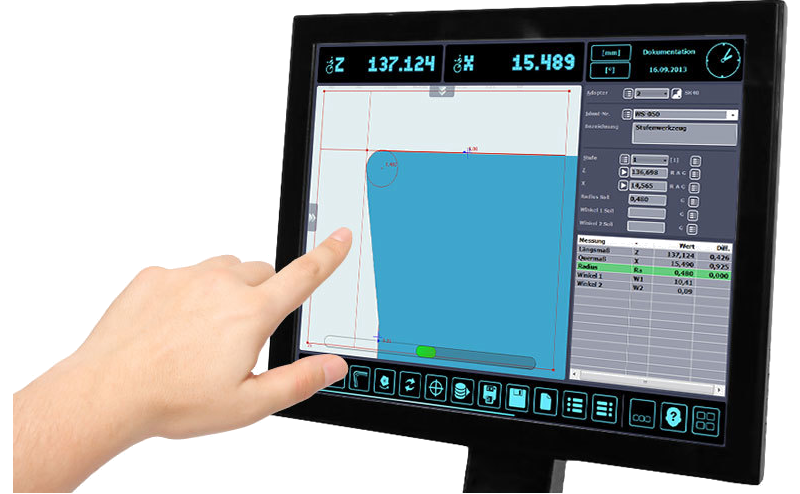

		Intuitive touch-screen operating technology
		State-of-the-art image processing technology

Autofocus and ROD encoder	Cutting edge inspection	Center height measuring device

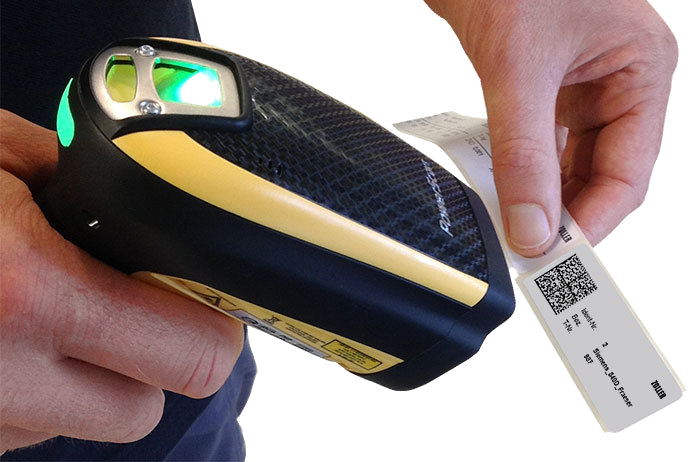

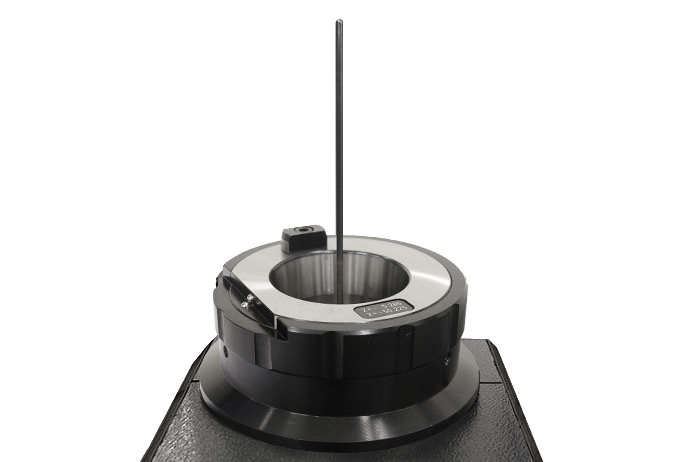

Snap gauge	Tool adjusting rod	Tool identification

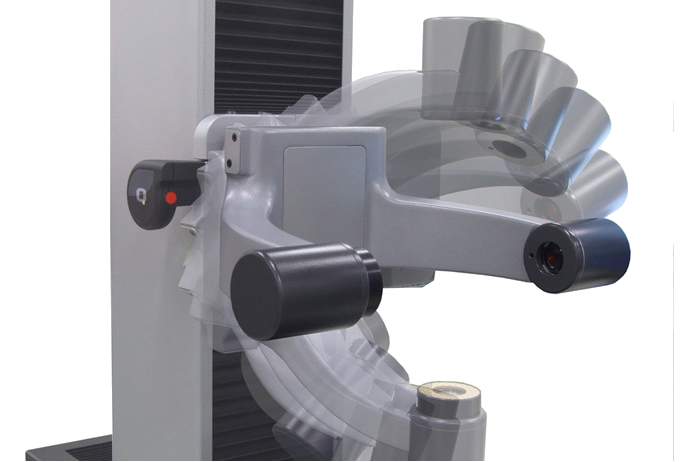

CNC swiveling device	Label printer	»ZipCode« with labels
Storage trays for adapters	Color laser printer	Data transmission
Maintainance unit	Control unit »cockpit«	USB Camera

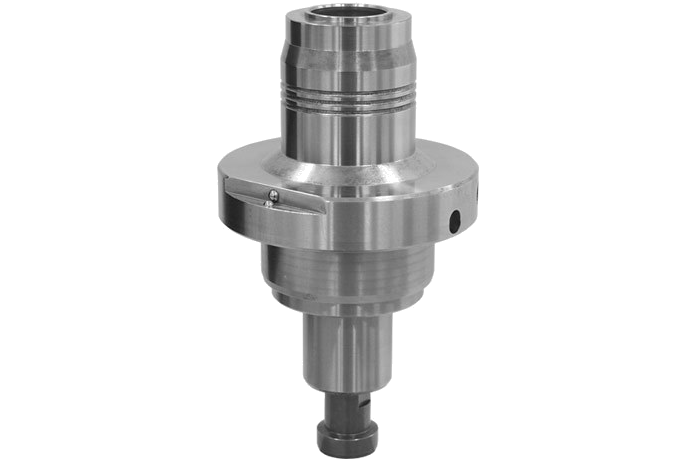

SK 50 high-precision spindle	Tool holding fixture spindle SK50 vacuum	»ace« high-precision spindle

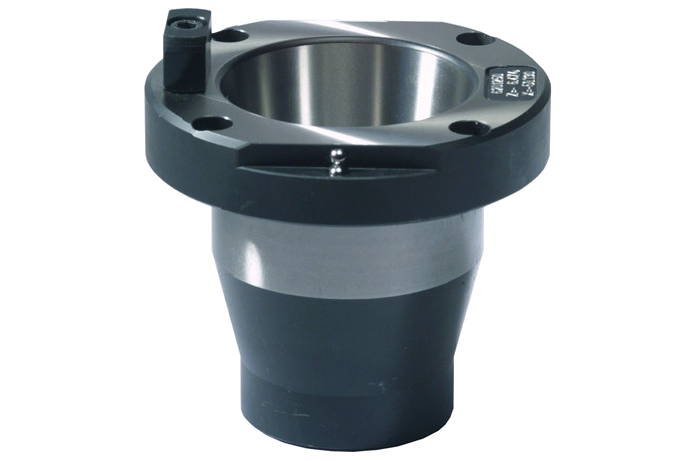

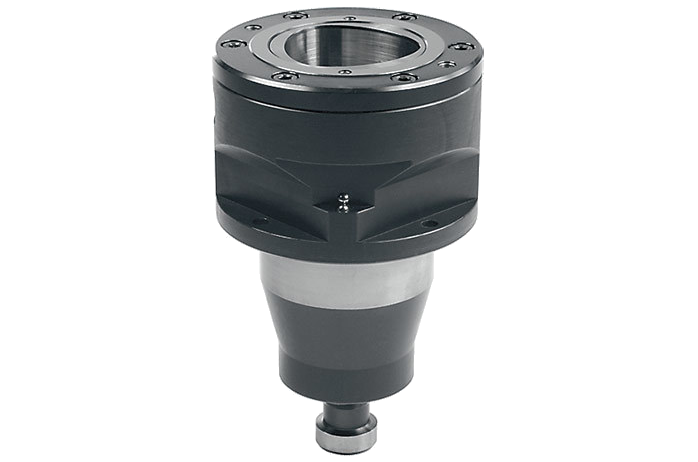

SK 25 - 60 steep taper adapter	HSK 25 - 160 hollow shank taper adapter	VDI 16 - 80 adapter

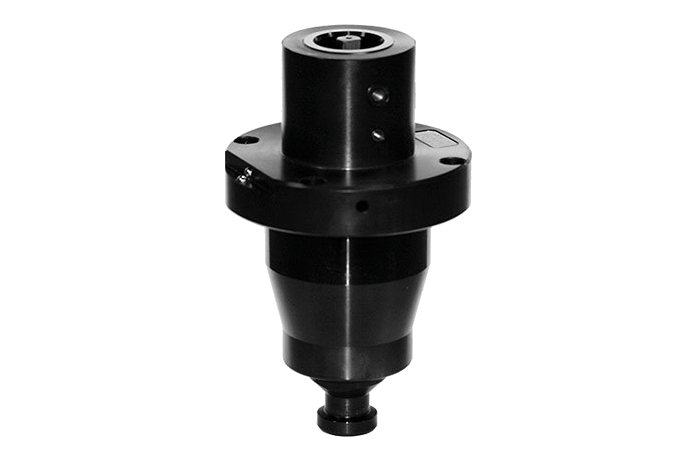

Capto C 3 - 10 adapter	KM 32 - 100 adapter	Hydro-expansion clamping adapter
SK 25 - 60 attachment holder	HSK 25 - 160 hollow shank attachment holder	Capto C 3 - 10 attachment holder
VDI 16 - 60 attachment holder	KM 32 - 63 attachment holder	Hydro-expansion chuck attachment holder

We reserve the right to make technical changes.
