BSF Series B
C'Bore ØD Tool Order Number Blade Order Number C'Bore ØD Tool Order Number Blade Order Number
mm inches Carbide, TiAlN* mm inches Carbide, TiAlN*

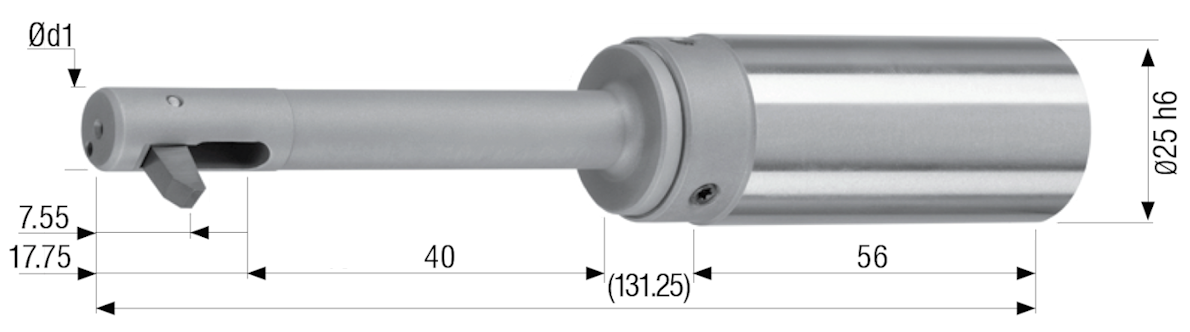

Min. Hole Ød  7.5 mm  0.295 inches
               Ød1  7.4 mm  0.291 inches 		Min. Hole Ød  8.0 mm  0.315 inches
               Ød1  7.9 mm  0.311 inches
11.0 0.433 BSF-B-0750/040-7.5 BSF-M-B-1A-3.5 12.0 0.472 BSF-B-0800/040-8.5 BSF-M-B-1A-3.5
11.5 0.453 BSF-B-0750/040-8.0 12.5 0.492 BSF-B-0800/040-9.0
12.0 0.472 BSF-B-0750/040-8.5 13.0 0.512 BSF-B-0800/040-8.0 BSF-M-B-1A-5.0
12.5 0.492 BSF-B-0750/040-7.5 BSF-M-B-1A-5.0 13.5 0.531 BSF-B-0800/040-8.5
13.0 0.512 BSF-B-0750/040-8.0 14.0 0.551 BSF-B-0800/040-9.0
13.5 0.531 BSF-B-0750/040-8.5 14.5 0.571 BSF-B-0800/040-8.0 BSF-M-B-1A-6.5
14.0 0.551 BSF-B-0750/040-7.5 BSF-M-B-1A-6.5 15.0 0.591 BSF-B-0800/040-8.5
14.5 0.571 BSF-B-0750/040-8.0 15.5 0.610 BSF-B-0800/040-9.0
15.0 0.591 BSF-B-0750/040-8.5 16.0 0.630 BSF-B-0800/040-8.0 BSF-M-B-1A-8.0
15.5 0.610 BSF-B-0750/040-7.5 BSF-M-B-1A-8.0 16.5 0.650 BSF-B-0800/040-8.5
16.0 0.630 BSF-B-0750/040-8.0 17.0 0.669 BSF-B-0800/040-9.0
16.5 0.650 BSF-B-0750/040-8.5 17.5 0.689 BSF-B-0800/040-8.0 BSF-M-B-1A-9.5
17.0 0.669 BSF-B-0750/040-7.5 BSF-M-B-1A-9.5 18.0 0.709 BSF-B-0800/040-8.5
17.5 0.689 BSF-B-0750/040-8.0 18.5 0.728 BSF-B-0800/040-9.0
18.0 0.709 BSF-B-0750/040-8.5
C'Bore ØD Tool Order Number Blade Order Number C'Bore ØD Tool Order Number Blade Order Number
mm inches Carbide, TiAlN* mm inches Carbide, TiAlN*
Min. Hole Ød  8.5 mm  0.335 inches
               Ød1  8.4 mm  0.331 inches
12.5 0.492 BSF-B-0850/040-9.0 BSF-M-B-1A-3.5
13.0 0.512 BSF-B-0850/040-9.5
13.5 0.531 BSF-B-0850/040-8.5 BSF-M-B-1A-5.0
14.0 0.551 BSF-B-0850/040-9.0
14.5 0.571 BSF-B-0850/040-9.5
15.0 0.591 BSF-B-0850/040-8.5 BSF-M-B-1A-6.5
15.5 0.610 BSF-B-0850/040-9.0
16.0 0.630 BSF-B-0850/040-9.5
16.5 0.650 BSF-B-0850/040-8.5 BSF-M-B-1A-8.0
17.0 0.669 BSF-B-0850/040-9.0
17.5 0.689 BSF-B-0850/040-9.5
18.0 0.709 BSF-B-0850/040-8.5 BSF-M-B-1A-9.5
18.5 0.728 BSF-B-0850/040-9.0
19.0 0.748 BSF-B-0850/040-9.5
19.5 0.768 BSF-B-0850/040-8.5 BSF-M-B-1A-11.0
20.0 0.787 BSF-B-0850/040-9.0
*Other blade options available

BSF Series B - Spare Parts
1 2 3 4
Cylinder Shank Control Pin Spring Piston
BSF-S-0003 BSF-B-0003 (7.5)
BSF-B-0004 (8.5)		 GH-H-F-0052 BSF-E-0014
5 6 7 8
Set Screw Clamping Screw Split Pin Blade
GH-H-S-0302 GH-H-S-0201 BSF-E-0018 BSF-M-B-1A-3.5
BSF-M-B-1A-5.0
BSF-M-B-1A-6.5
BSF-M-B-1A-8.0
BSF-M-B-1A-9.5
BSF-M-B-1A-11.0
9 10 10
Housing Assembly Pin Torx Wrench
BSF-V-0009 GH-H-S-2023

How to Order:
The tools and blades are sold separately and they each have an OFFSET
dimension. When combined they equal the effective counterbore diameter.
Choose the tool closest to the bore diameter, then choose the proper blade for
the required counterbore diameter.  There are 36 different size carbide blades
that can fit their corresponding tool holder series.





We reserve the right to make technical changes.
