BSF Series C

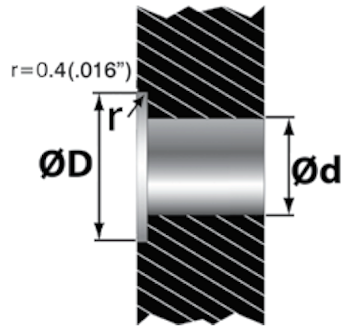

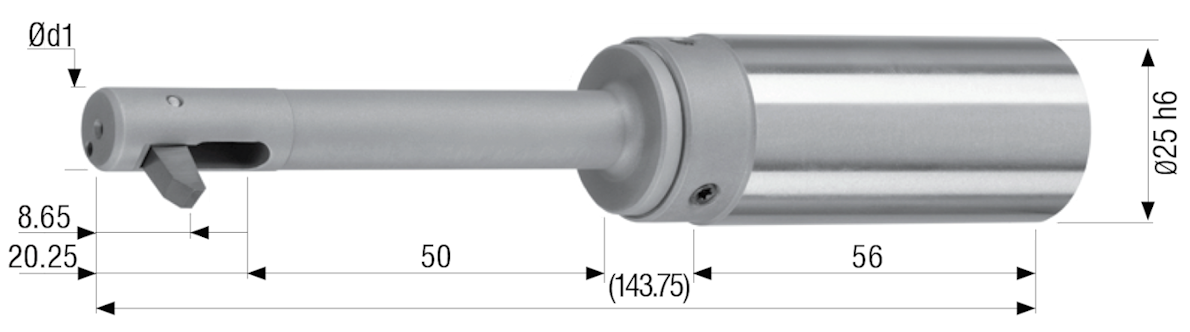

C'Bore ØD Tool Order Number Blade Order Number C'Bore ØD Tool Order Number Blade Order Number
mm inches Carbide, TiAlN* mm inches Carbide, TiAlN*
Min. Hole Ød  9.0 mm  0.354 inches
               Ød1  8.9 mm  0.350 inches 		Min. Hole Ød  9.5 mm  0.374 inches
               Ød1  9.4 mm  0.370 inches
13.5 0.531 BSF-C-0900/050-9.5  BSF-M-C-1A-4.0 14.5 0.571 BSF-C-0950/050-10.5 BSF-M-C-1A-4.0
14.0 0.551 BSF-C-0900/050-10.0 15.0 0.591 BSF-C-0950/050-11.0
14.5 0.571 BSF-C-0900/050-10.5 15.5 0.610 BSF-C-0950/050-10.0 BSF-M-C-1A-5.5
15.0 0.591 BSF-C-0900/050-9.5  BSF-M-C-1A-5.5 16.0 0.630 BSF-C-0950/050-10.5
15.5 0.610 BSF-C-0900/050-10.0 16.5 0.650 BSF-C-0950/050-11.0
16.0 0.630 BSF-C-0900/050-10.5 17.0 0.669 BSF-C-0950/050-10.0 BSF-M-C-1A-7.0
16.5 0.650 BSF-C-0900/050-9.5  BSF-M-C-1A-7.0 17.5 0.689 BSF-C-0950/050-10.5
17.0 0.669 BSF-C-0900/050-10.0 18.0 0.709 BSF-C-0950/050-11.0
17.5 0.689 BSF-C-0900/050-10.5 18.5 0.728 BSF-C-0950/050-10.0 BSF-M-C-1A-8.5
18.0 0.709 BSF-C-0900/050-9.5  BSF-M-C-1A-8.5 19.0 0.748 BSF-C-0950/050-10.5
18.5 0.728 BSF-C-0900/050-10.0 19.5 0.768 BSF-C-0950/050-11.0
19.0 0.748 BSF-C-0900/050-10.5 20.0 0.787 BSF-C-0950/050-10.0 BSF-M-C-1A-10.0
19.5 0.768 BSF-C-0900/050-9.5  BSF-M-C-1A-10.0 20.5 0.807 BSF-C-0950/050-10.5
20.0 0.787 BSF-C-0900/050-10.0 21.0 0.827 BSF-C-0950/050-11.0
20.5 0.807 BSF-C-0900/050-10.5 21.5 0.846 BSF-C-0950/050-10.0 BSF-M-C-1A-11.5
21.0 0.827 BSF-C-0900/050-9.5  BSF-M-C-1A-11.5 22.0 0.866 BSF-C-0950/050-10.5
C'Bore ØD Tool Order Number Blade Order Number C'Bore ØD Tool Order Number Blade Order Number
mm inches Carbide, TiAlN* mm inches Carbide, TiAlN*
Min. Hole Ød  10.0 mm  0.394 inches
               Ød1    9.9 mm  0.390 inches
15.0 0.591 BSF-C-1000/050-11.0 BSF-M-C-1A-4.0
15.5 0.610 BSF-C-1000/050-11.5
16.0 0.630 BSF-C-1000/050-10.5 BSF-M-C-1A-5.5
16.5 0.650 BSF-C-1000/050-11.0
17.0 0.669 BSF-C-1000/050-11.5
17.5 0.689 BSF-C-1000/050-10.5 BSF-M-C-1A-7.0
18.0 0.709 BSF-C-1000/050-11.0
18.5 0.728 BSF-C-1000/050-11.5
19.0 0.748 BSF-C-1000/050-10.5 BSF-M-C-1A-8.5
19.5 0.768 BSF-C-1000/050-11.0
20.0 0.787 BSF-C-1000/050-11.5
20.5 0.807 BSF-C-1000/050-10.5 BSF-M-C-1A-10.0
21.0 0.827 BSF-C-1000/050-11.0
21.5 0.846 BSF-C-1000/050-11.5
22.0 0.866 BSF-C-1000/050-10.5 BSF-M-C-1A-11.5
22.5 0.886 BSF-C-1000/050-11.0
23.0 0.906 BSF-C-1000/050-11.5
*Other blade options available

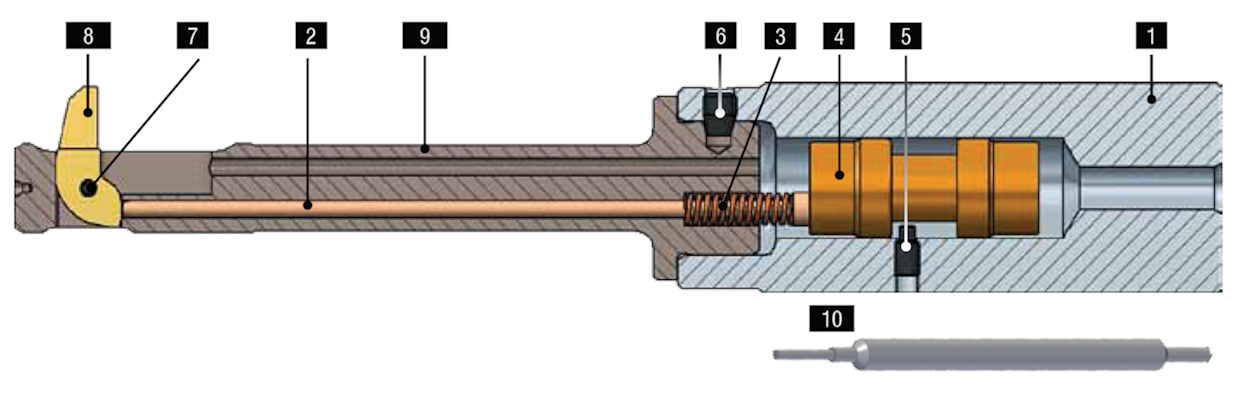

BSF Series C - Spare Parts
1 2 3 4
Cylinder Shank Control Pin Spring Piston
BSF-S-0003 BSF-B-0005 (9.0) GH-H-F-0053 BSF-E-0014
5 6 7 8
Set Screw Clamping Screw Split Pin Blade
GH-H-S-0302 GH-H-S-0201 BSF-E-0010 BSF-M-C-1A-4.0
BSF-M-C-1A-5.5
BSF-M-C-1A-7.0
BSF-M-C-1A-8.5
BSF-M-C-1A-10.0
BSF-M-C-1A-11.5
9 10 10
Housing Assembly Pin Torx Wrench
BSF-V-0006 GH-H-S-2023

How to Order:
The tools and blades are sold separately and they each have an OFFSET
dimension. When combined they equal the effective counterbore diameter.
Choose the tool closest to the bore diameter, then choose the proper blade for
the required counterbore diameter.  There are 36 different size carbide blades
that can fit their corresponding tool holder series.





We reserve the right to make technical changes.
