BSF Series D

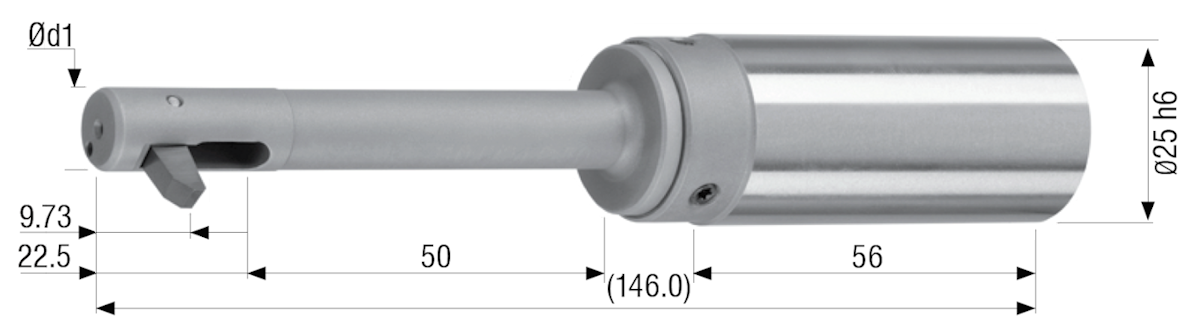

C'Bore ØD Tool Order Number Blade Order Number C'Bore ØD Tool Order Number Blade Order Number
mm inches Carbide, TiAlN* mm inches Carbide, TiAlN*
Min. Hole Ød  10.5 mm  0.413 inches
               Ød1  10.4 mm  0.409 inches 		Min. Hole Ød  11.0 mm  0.433 inches
               Ød1  10.9 mm  0.429 inches
16.0 0.630 BSF-D-1050/050-11.5 BSF-M-D-1A-4.5 16.5 0.650 BSF-D-1100/050-12.0 BSF-M-D-1A-4.5
16.5 0.650 BSF-D-1050/050-12.0 17.0 0.669 BSF-D-1100/050-12.5
17.0 0.669 BSF-D-1050/050-12.5 17.5 0.689 BSF-D-1100/050-13.0
17.5 0.689 BSF-D-1050/050-13.0 18.0 0.709 BSF-D-1100/050-13.5
18.0 0.709 BSF-D-1050/050-11.0 BSF-M-D-1A-7.0 18.5 0.728 BSF-D-1100/050-11.5 BSF-M-D-1A-7.0
18.5 0.728 BSF-D-1050/050-11.5 19.0 0.748 BSF-D-1100/050-12.0
19.0 0.748 BSF-D-1050/050-12.0 19.5 0.768 BSF-D-1100/050-12.5
19.5 0.768 BSF-D-1050/050-12.5 20.0 0.787 BSF-D-1100/050-13.0
20.0 0.787 BSF-D-1050/050-13.0 20.5 0.807 BSF-D-1100/050-13.5
20.5 0.807 BSF-D-1050/050-11.0 BSF-M-D-1A-9.5 21.0 0.827 BSF-D-1100/050-11.5 BSF-M-D-1A-9.5
21.0 0.827 BSF-D-1050/050-11.5 21.5 0.846 BSF-D-1100/050-12.0
21.5 0.846 BSF-D-1050/050-12.0 22.0 0.866 BSF-D-1100/050-12.5
22.0 0.866 BSF-D-1050/050-12.5 22.5 0.886 BSF-D-1100/050-13.0
22.5 0.886 BSF-D-1050/050-13.0 23.0 0.906 BSF-D-1100/050-13.5
23.0 0.906 BSF-D-1050/050-11.0 BSF-M-D-1A-12.0 23.5 0.925 BSF-D-1100/050-11.5 BSF-M-D-1A-12.0
23.5 0.925 BSF-D-1050/050-11.5 24.0 0.945 BSF-D-1100/050-12.0
24.0 0.945 BSF-D-1050/050-12.0 24.5 0.965 BSF-D-1100/050-12.5
24.5 0.965 BSF-D-1050/050-12.5 25.0 0.984 BSF-D-1100/050-13.0
25.0 0.984 BSF-D-1050/050-13.0 25.5 1.004 BSF-D-1100/050-13.5
C'Bore ØD Tool Order Number Blade Order Number C'Bore ØD Tool Order Number Blade Order Number
mm inches Carbide, TiAlN* mm inches Carbide, TiAlN*
Min. Hole Ød  11.5 mm  0.453 inches
               Ød1  11.4 mm  0.449 inches
17.5 0.689 BSF-D-1150/050-13.0 BSF-M-D-1A-4.5
18.0 0.709 BSF-D-1150/050-13.5
18.5 0.728 BSF-D-1150/050-14.0
19.0 0.748 BSF-D-1150/050-12.0 BSF-M-D-1A-7.0
19.5 0.768 BSF-D-1150/050-12.5
20.0 0.787 BSF-D-1150/050-13.0
20.5 0.807 BSF-D-1150/050-13.5
21.0 0.827 BSF-D-1150/050-14.0
21.5 0.846 BSF-D-1150/050-12.0 BSF-M-D-1A-9.5
22.0 0.866 BSF-D-1150/050-12.5
22.5 0.886 BSF-D-1150/050-13.0
23.0 0.906 BSF-D-1150/050-13.5
23.5 0.925 BSF-D-1150/050-14.0
24.0 0.945 BSF-D-1150/050-12.0 BSF-M-D-1A-12.0
24.5 0.965 BSF-D-1150/050-12.5
25.0 0.984 BSF-D-1150/050-13.0
25.5 1.004 BSF-D-1150/050-13.5
26.0 1.024 BSF-D-1150/050-14.0
26.5 1.043 BSF-D-1150/050-12.0 BSF-M-D-1A-14.5
*Other blade options available

BSF Series D - Spare Parts
1 2 3 4
Cylinder Shank Control Pin Spring Piston
BSF-S-0003 BSF-B-0006 (10.5)
BSF-B-0007 (11.5)		 GH-H-F-0053 BSF-E-0014
5 6 7 8
Set Screw Clamping Screw Split Pin Blade
GH-H-S-0302 GH-H-S-0201 BSF-E-0019 BSF-M-D-1A-4.5
BSF-M-D-1A-7.0
BSF-M-D-1A-9.5
BSF-M-D-1A-12.0
BSF-M-D-1A-14.5
9 10 10
Housing Assembly Pin Torx Wrench
BSF-V-0006 GH-H-S-2023

How to Order:
The tools and blades are sold separately and they each have an OFFSET
dimension. When combined they equal the effective counterbore diameter.
Choose the tool closest to the bore diameter, then choose the proper blade for
the required counterbore diameter.  There are 36 different size carbide blades
that can fit their corresponding tool holder series.





We reserve the right to make technical changes.
