BSF Series E
C'Bore ØD Tool Order Number Blade Order Number C'Bore ØD Tool Order Number Blade Order Number
mm inches Carbide, TiAlN* mm inches Carbide, TiAlN*

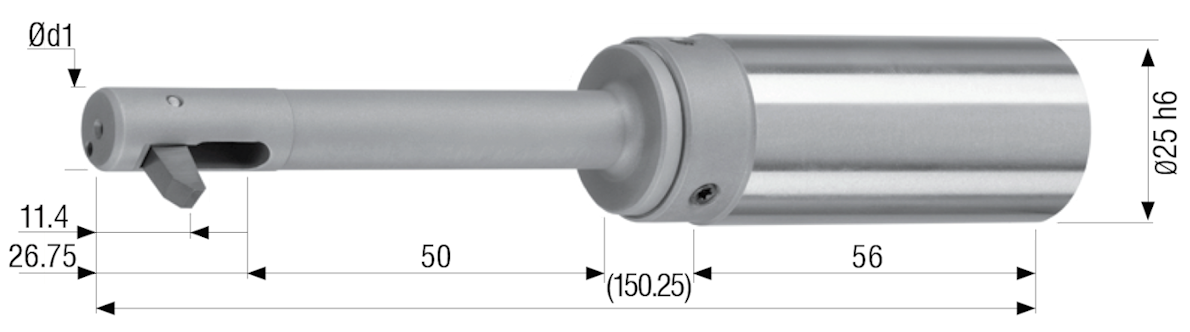

Min. Hole Ød  12.0 mm  0.472 inches
               Ød1  11.9 mm  0.469 inches 		Min. Hole Ød  12.5 mm  0.492 inches
               Ød1  12.4 mm  0.488 inches
18.0 0.709 BSF-E-1200/050-13.0 BSF-M-E-1A-5.0 19.0 0.748 BSF-E-1250/050-14.0 BSF-M-E-1A-5.0
18.5 0.728 BSF-E-1200/050-13.5 19.5 0.768 BSF-E-1250/050-14.5
19.0 0.748 BSF-E-1200/050-14.0 20.0 0.787 BSF-E-1250/050-15.0
19.5 0.768 BSF-E-1200/050-14.5 20.5 0.807 BSF-E-1250/050-15.5
20.0 0.787 BSF-E-1200/050-15.0 21.0 0.827 BSF-E-1250/050-13.5 BSF-M-E-1A-7.5
20.5 0.807 BSF-E-1200/050-13.0 BSF-M-E-1A-7.5 21.5 0.846 BSF-E-1250/050-14.0
21.0 0.827 BSF-E-1200/050-13.5 22.0 0.866 BSF-E-1250/050-14.5
21.5 0.846 BSF-E-1200/050-14.0 22.5 0.886 BSF-E-1250/050-15.0
22.0 0.866 BSF-E-1200/050-14.5 23.0 0.906 BSF-E-1250/050-15.5
22.5 0.886 BSF-E-1200/050-15.0 23.5 0.925 BSF-E-1250/050-13.5 BSF-M-E-1A-10.0
23.0 0.906 BSF-E-1200/050-13.0 BSF-M-E-1A-10.0 24.0 0.945 BSF-E-1250/050-14.0
23.5 0.925 BSF-E-1200/050-13.5 24.5 0.965 BSF-E-1250/050-14.5
24.0 0.945 BSF-E-1200/050-14.0 25.0 0.984 BSF-E-1250/050-15.0
24.5 0.965 BSF-E-1200/050-14.5 25.5 1.004 BSF-E-1250/050-15.5
25.0 0.984 BSF-E-1200/050-15.0 26.0 1.024 BSF-E-1250/050-13.5 BSF-M-E-1A-12.5
25.5 1.004 BSF-E-1200/050-13.0 BSF-M-E-1A-12.5 26.5 1.043 BSF-E-1250/050-14.0
26.0 1.024 BSF-E-1200/050-13.5 27.0 1.063 BSF-E-1250/050-14.5
26.5 1.043 BSF-E-1200/050-14.0 27.5 1.083 BSF-E-1250/050-15.0
27.0 1.063 BSF-E-1200/050-14.5 28.0 1.102 BSF-E-1250/050-15.5
27.5 1.083 BSF-E-1200/050-15.0 28.5 1.122 BSF-E-1250/050-13.5 BSF-M-E-1A-15.0
28.0 1.102 BSF-E-1200/050-13.0 BSF-M-E-1A-15.0 29.0 1.142 BSF-E-1250/050-14.0
C'Bore ØD Tool Order Number Blade Order Number C'Bore ØD Tool Order Number Blade Order Number
mm inches Carbide, TiAlN* mm inches Carbide, TiAlN*
Min. Hole Ød  13.0 mm  0.512 inches
               Ød1  12.9 mm  0.508 inches 		Min. Hole Ød  13.5 mm  0.531 inches
               Ød1  13.4 mm  0.528 inches
19.5 0.768 BSF-E-1300/050-14.5 BSF-M-E-1A-5.0 20.5 0.807 BSF-E-1350/050-15.5 BSF-M-E-1A-5.0
20.0 0.787 BSF-E-1300/050-15.0 21.0 0.827 BSF-E-1350/050-16.0
20.5 0.807 BSF-E-1300/050-15.5 21.5 0.846 BSF-E-1350/050-16.5
21.0 0.827 BSF-E-1300/050-16.0 22.0 0.866 BSF-E-1350/050-14.5 BSF-M-E-1A-7.5
21.5 0.846 BSF-E-1300/050-14.0 BSF-M-E-1A-7.5 22.5 0.886 BSF-E-1350/050-15.0
22.0 0.866 BSF-E-1300/050-14.5 23.0 0.906 BSF-E-1350/050-15.5
22.5 0.886 BSF-E-1300/050-15.0 23.5 0.925 BSF-E-1350/050-16.0
23.0 0.906 BSF-E-1300/050-15.5 24.0 0.945 BSF-E-1350/050-16.5
23.5 0.925 BSF-E-1300/050-16.0 24.5 0.965 BSF-E-1350/050-14.5 BSF-M-E-1A-10.0
24.0 0.945 BSF-E-1300/050-14.0 BSF-M-E-1A-10.0 25.0 0.984 BSF-E-1350/050-15.0
24.5 0.965 BSF-E-1300/050-14.5 25.5 1.004 BSF-E-1350/050-15.5
25.0 0.984 BSF-E-1300/050-15.0 26.0 1.024 BSF-E-1350/050-16.0
25.5 1.004 BSF-E-1300/050-15.5 26.5 1.043 BSF-E-1350/050-16.5
26.0 1.024 BSF-E-1300/050-16.0 27.0 1.063 BSF-E-1350/050-14.5 BSF-M-E-1A-12.5
26.5 1.043 BSF-E-1300/050-14.0 BSF-M-E-1A-12.5 27.5 1.083 BSF-E-1350/050-15.0
27.0 1.063 BSF-E-1300/050-14.5 28.0 1.102 BSF-E-1350/050-15.5
27.5 1.083 BSF-E-1300/050-15.0 28.5 1.122 BSF-E-1350/050-16.0
28.0 1.102 BSF-E-1300/050-15.5 29.0 1.142 BSF-E-1350/050-16.5
28.5 1.122 BSF-E-1300/050-16.0 29.5 1.161 BSF-E-1350/050-14.5 BSF-M-E-1A-15.0
29.0 1.142 BSF-E-1300/050-14.0 BSF-M-E-1A-15.0 30.0 1.181 BSF-E-1350/050-15.0
29.5 1.161 BSF-E-1300/050-14.5 30.5 1.201 BSF-E-1350/050-15.5
30.0 1.181 BSF-E-1300/050-15.0 31.0 1.220 BSF-E-1350/050-16.0
  31.5 1.240 BSF-E-1350/050-16.5
C'Bore ØD Tool Order Number Blade Order Number C'Bore ØD Tool Order Number Blade Order Number
mm inches Carbide, TiAlN* mm inches Carbide, TiAlN*
Min. Hole Ød  14.0 mm  0.551 inches
               Ød1  13.9 mm  0.547 inches
21.0 0.827 BSF-E-1400/050-16.0 BSF-M-E-1A-5.0
21.5 0.846 BSF-E-1400/050-16.5
22.0 0.866 BSF-E-1400/050-17.0
22.5 0.886 BSF-E-1400/050-15.0 BSF-M-E-1A-7.5
23.0 0.906 BSF-E-1400/050-15.5
23.5 0.925 BSF-E-1400/050-16.0
24.0 0.945 BSF-E-1400/050-16.5
24.5 0.965 BSF-E-1400/050-17.0
25.0 0.984 BSF-E-1400/050-15.0 BSF-M-E-1A-10.0
25.5 1.004 BSF-E-1400/050-15.5
26.0 1.024 BSF-E-1400/050-16.0
26.5 1.043 BSF-E-1400/050-16.5
27.0 1.063 BSF-E-1400/050-17.0
27.5 1.083 BSF-E-1400/050-15.0 BSF-M-E-1A-12.5
28.0 1.102 BSF-E-1400/050-15.5
28.5 1.122 BSF-E-1400/050-16.0
29.0 1.142 BSF-E-1400/050-16.5
29.5 1.161 BSF-E-1400/050-17.0
30.0 1.181 BSF-E-1400/050-15.0 BSF-M-E-1A-15.0
30.5 1.201 BSF-E-1400/050-15.5
31.0 1.220 BSF-E-1400/050-16.0
31.5 1.240 BSF-E-1400/050-16.5
32.0 1.260 BSF-E-1400/050-17.0
32.5 1.280 BSF-E-1400/050-15.0 BSF-M-E-1A-17.5
*Other blade options available

BSF Series E - Spare Parts
1 2 3 4
Cylinder Shank Control Pin Spring Piston
BSF-S-0003 BSF-B-0008 (12.0)
BSF-B-0009 (14.0)		 GH-H-F-0053 BSF-E-0014
5 6 7 8
Set Screw Clamping Screw Split Pin Blade
GH-H-S-0302 GH-H-S-0201 BSF-E-0011 BSF-M-E-1A-5.0
BSF-M-E-1A-7.5
BSF-M-E-1A-10.0
BSF-M-E-1A-12.5
BSF-M-E-1A-15.0
9 10 10
Housing Assembly Pin Torx Wrench
BSF-V-0007 GH-H-S-2023

How to Order:
The tools and blades are sold separately and they each have an OFFSET
dimension. When combined they equal the effective counterbore diameter.
Choose the tool closest to the bore diameter, then choose the proper blade for
the required counterbore diameter.  There are 36 different size carbide blades
that can fit their corresponding tool holder series.
