BSF Series F
C'Bore ØD Tool Order Number Blade Order Number C'Bore ØD Tool Order Number Blade Order Number
mm inches Carbide, TiAlN* mm inches Carbide, TiAlN*

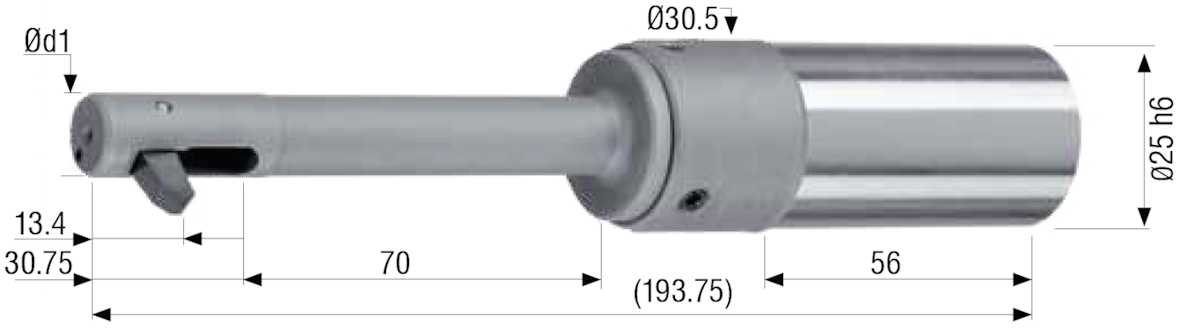

Min. Hole Ød  14.5 mm  0.571 inches
               Ød1  14.4 mm  0.567 inches 		Min. Hole Ød  15.0 mm  0.591 inches
               Ød1  14.9 mm  0.587 inches
22.0 0.866 BSF-F-1450/070-16.5 BSF-M-F-1A-5.5 22.5 0.886 BSF-F-1500/070-17.0 BSF-M-F-1A-5.5
22.5 0.886 BSF-F-1450/070-17.0 23.0 0.906 BSF-F-1500/070-17.5
23.0 0.906 BSF-F-1450/070-17.5 23.5 0.925 BSF-F-1500/070-18.0
23.5 0.925 BSF-F-1450/070-18.0 24.0 0.945 BSF-F-1500/070-18.5
24.0 0.945 BSF-F-1450/070-18.5 24.5 0.965 BSF-F-1500/070-19.0
24.5 0.965 BSF-F-1450/070-19.0 25.0 0.984 BSF-F-1500/070-19.5
25.0 0.984 BSF-F-1450/070-16.0 BSF-M-F-1A-9.0 25.5 1.004 BSF-F-1500/070-16.5 BSF-M-F-1A-9.0
25.5 1.004 BSF-F-1450/070-16.5 26.0 1.024 BSF-F-1500/070-17.0
26.0 1.024 BSF-F-1450/070-17.0 26.5 1.043 BSF-F-1500/070-17.5
26.5 1.043 BSF-F-1450/070-17.5 27.0 1.063 BSF-F-1500/070-18.0
27.0 1.063 BSF-F-1450/070-18.0 27.5 1.083 BSF-F-1500/070-18.5
27.5 1.083 BSF-F-1450/070-18.5 28.0 1.102 BSF-F-1500/070-19.0
28.0 1.102 BSF-F-1450/070-19.0 28.5 1.122 BSF-F-1500/070-19.5
28.5 1.122 BSF-F-1450/070-16.0 BSF-M-F-1A-12.5 29.0 1.142 BSF-F-1500/070-16.5 BSF-M-F-1A-12.5
29.0 1.142 BSF-F-1450/070-16.5 29.5 1.161 BSF-F-1500/070-17.0
29.5 1.161 BSF-F-1450/070-17.0 30.0 1.181 BSF-F-1500/070-17.5
30.0 1.181 BSF-F-1450/070-17.5 30.5 1.201 BSF-F-1500/070-18.0
30.5 1.201 BSF-F-1450/070-18.0 31.0 1.220 BSF-F-1500/070-18.5
31.0 1.220 BSF-F-1450/070-18.5 31.5 1.240 BSF-F-1500/070-19.0
31.5 1.240 BSF-F-1450/070-19.0 32.0 1.260 BSF-F-1500/070-19.5
32.0 1.260 BSF-F-1450/070-16.0 BSF-M-F-1A-16.0 32.5 1.280 BSF-F-1500/070-16.5 BSF-M-F-1A-16.0
32.5 1.280 BSF-F-1450/070-16.5 33.0 1.299 BSF-F-1500/070-17.0
33.0 1.299 BSF-F-1450/070-17.0 33.5 1.319 BSF-F-1500/070-17.5
33.5 1.319 BSF-F-1450/070-17.5 34.0 1.339 BSF-F-1500/070-18.0
  34.5 1.358 BSF-F-1500/070-18.5
C'Bore ØD Tool Order Number Blade Order Number C'Bore ØD Tool Order Number Blade Order Number
mm inches Carbide, TiAlN* mm inches Carbide, TiAlN*
Min. Hole Ød  15.5 mm  0.610 inches
               Ød1  15.4 mm  0.606 inches 		Min. Hole Ød  16.0 mm  0.630 inches
               Ød1  15.9 mm  0.626 inches
23.5 0.925 BSF-F-1550/070-18.0 BSF-M-F-1A-5.5 24.0 0.945 BSF-F-1600/070-18.5 BSF-M-F-1A-5.5
24.0 0.945 BSF-F-1550/070-18.5 24.5 0.965 BSF-F-1600/070-19.0
24.5 0.965 BSF-F-1550/070-19.0 25.0 0.984 BSF-F-1600/070-19.5
25.0 0.984 BSF-F-1550/070-19.5 25.5 1.004 BSF-F-1600/070-20.0
25.5 1.004 BSF-F-1550/070-20.0 26.0 1.024 BSF-F-1600/070-20.5
26.0 1.024 BSF-F-1550/070-17.0 BSF-M-F-1A-9.0 26.5 1.043 BSF-F-1600/070-17.5 BSF-M-F-1A-9.0
26.5 1.043 BSF-F-1550/070-17.5 27.0 1.063 BSF-F-1600/070-18.0
27.0 1.063 BSF-F-1550/070-18.0 27.5 1.083 BSF-F-1600/070-18.5
27.5 1.083 BSF-F-1550/070-18.5 28.0 1.102 BSF-F-1600/070-19.0
28.0 1.102 BSF-F-1550/070-19.0 28.5 1.122 BSF-F-1600/070-19.5
28.5 1.122 BSF-F-1550/070-19.5 29.0 1.142 BSF-F-1600/070-20.0
29.0 1.142 BSF-F-1550/070-20.0 29.5 1.161 BSF-F-1600/070-20.5
29.5 1.161 BSF-F-1550/070-17.0 BSF-M-F-1A-12.5 30.0 1.181 BSF-F-1600/070-17.5 BSF-M-F-1A-12.5
30.0 1.181 BSF-F-1550/070-17.5 30.5 1.201 BSF-F-1600/070-18.0
30.5 1.201 BSF-F-1550/070-18.0 31.0 1.220 BSF-F-1600/070-18.5
31.0 1.220 BSF-F-1550/070-18.5 31.5 1.240 BSF-F-1600/070-19.0
31.5 1.240 BSF-F-1550/070-19.0 32.0 1.260 BSF-F-1600/070-19.5
32.0 1.260 BSF-F-1550/070-19.5 32.5 1.280 BSF-F-1600/070-20.0
32.5 1.280 BSF-F-1550/070-20.0 33.0 1.299 BSF-F-1600/070-20.5
33.0 1.299 BSF-F-1550/070-17.0 BSF-M-F-1A-16.0 33.5 1.319 BSF-F-1600/070-17.5 BSF-M-F-1A-16.0
33.5 1.319 BSF-F-1550/070-17.5 34.0 1.339 BSF-F-1600/070-18.0
34.0 1.339 BSF-F-1550/070-18.0 34.5 1.358 BSF-F-1600/070-18.5
34.5 1.358 BSF-F-1550/070-18.5 35.0 1.378 BSF-F-1600/070-19.0
35.0 1.378 BSF-F-1550/070-19.0 35.5 1.398 BSF-F-1600/070-19.5
35.5 1.398 BSF-F-1550/070-19.5 36.0 1.417 BSF-F-1600/070-20.0
36.0 1.417 BSF-F-1550/070-20.0 36.5 1.437 BSF-F-1600/070-20.5
  37.0 1.457 BSF-F-1600/070-17.5 BSF-M-F-1A-19.5
C'Bore ØD Tool Order Number Blade Order Number C'Bore ØD Tool Order Number Blade Order Number
mm inches Carbide, TiAlN* mm inches Carbide, TiAlN*
Min. Hole Ød  16.5 mm  0.650 inches
               Ød1  16.4 mm  0.646 inches 		Min. Hole Ød  17.0 mm  0.669 inches
               Ød1  16.9 mm  0.665 inches
25.0 0.984 BSF-F-1650/070-19.5 BSF-M-F-1A-5.5 25.5 1.004 BSF-F-1700/070-20.0 BSF-M-F-1A-5.5
25.5 1.004 BSF-F-1650/070-20.0 26.0 1.024 BSF-F-1700/070-20.5
26.0 1.024 BSF-F-1650/070-20.5 26.5 1.043 BSF-F-1700/070-21.0
26.5 1.043 BSF-F-1650/070-21.0 27.0 1.063 BSF-F-1700/070-21.5
27.0 1.063 BSF-F-1650/070-18.0 BSF-M-F-1A-9.0 27.5 1.083 BSF-F-1700/070-18.5 BSF-M-F-1A-9.0
27.5 1.083 BSF-F-1650/070-18.5 28.0 1.102 BSF-F-1700/070-19.0
28.0 1.102 BSF-F-1650/070-19.0 28.5 1.122 BSF-F-1700/070-19.5
28.5 1.122 BSF-F-1650/070-19.5 29.0 1.142 BSF-F-1700/070-20.0
29.0 1.142 BSF-F-1650/070-20.0 29.5 1.161 BSF-F-1700/070-20.5
29.5 1.161 BSF-F-1650/070-20.5 30.0 1.181 BSF-F-1700/070-21.0
30.0 1.181 BSF-F-1650/070-21.0 30.5 1.201 BSF-F-1700/070-21.5
30.5 1.201 BSF-F-1650/070-18.0 BSF-M-F-1A-12.5 31.0 1.220 BSF-F-1700/070-18.5 BSF-M-F-1A-12.5
31.0 1.220 BSF-F-1650/070-18.5 31.5 1.240 BSF-F-1700/070-19.0
31.5 1.240 BSF-F-1650/070-19.0 32.0 1.260 BSF-F-1700/070-19.5
32.0 1.260 BSF-F-1650/070-19.5 32.5 1.280 BSF-F-1700/070-20.0
32.5 1.280 BSF-F-1650/070-20.0 33.0 1.299 BSF-F-1700/070-20.5
33.0 1.299 BSF-F-1650/070-20.5 33.5 1.319 BSF-F-1700/070-21.0
33.5 1.319 BSF-F-1650/070-21.0 34.0 1.339 BSF-F-1700/070-21.5
34.0 1.339 BSF-F-1650/070-18.0 BSF-M-F-1A-16.0 34.5 1.358 BSF-F-1700/070-18.5 BSF-M-F-1A-16.0
34.5 1.358 BSF-F-1650/070-18.5 35.0 1.378 BSF-F-1700/070-19.0
35.0 1.378 BSF-F-1650/070-19.0 35.5 1.398 BSF-F-1700/070-19.5
35.5 1.398 BSF-F-1650/070-19.5 36.0 1.417 BSF-F-1700/070-20.0
36.0 1.417 BSF-F-1650/070-20.0 36.5 1.437 BSF-F-1700/070-20.5
36.5 1.437 BSF-F-1650/070-20.5 37.0 1.457 BSF-F-1700/070-21.0
37.0 1.457 BSF-F-1650/070-21.0 37.5 1.476 BSF-F-1700/070-21.5
37.5 1.476 BSF-F-1650/070-18.0 BSF-M-F-1A-19.5 38.0 1.496 BSF-F-1700/070-18.5 BSF-M-F-1A-19.5
38.0 1.496 BSF-F-1650/070-18.5 38.5 1.516 BSF-F-1700/070-19.0
  39.0 1.535 BSF-F-1700/070-19.5
  39.5 1.555 BSF-F-1700/070-20.0
*Other blade options available

BSF Series F - Spare Parts
1 2 3 4
Cylinder Shank Control Pin Spring Piston
BSF-S-0004 BSF-B-0010 (14.5)
BSF-B-0011 (16.0)		 GH-H-F-0051 BSF-E-0014
5 6 7 8
Set Screw Clamping Screw Split Pin Blade
GH-H-S-0302 GH-H-S-0202 BSF-E-0012 BSF-M-F-1A-5.5
BSF-M-F-1A-9.0
BSF-M-F-1A-12.5
BSF-M-F-1A-16.0
BSF-M-F-1A-19.5
9 10 10
Housing Assembly Pin Torx Wrench
BSF-V-0007 GH-H-S-2100

How to Order:
The tools and blades are sold separately and they each have an OFFSET
dimension. When combined they equal the effective counterbore diameter.
Choose the tool closest to the bore diameter, then choose the proper blade for
the required counterbore diameter.  There are 36 different size carbide blades
that can fit their corresponding tool holder series.
