| COMBI Drill Chamfer Tools Ø13.0-Ø17.9mm with coolant through | ||||||||||
 |
Tool Holder Order Number |

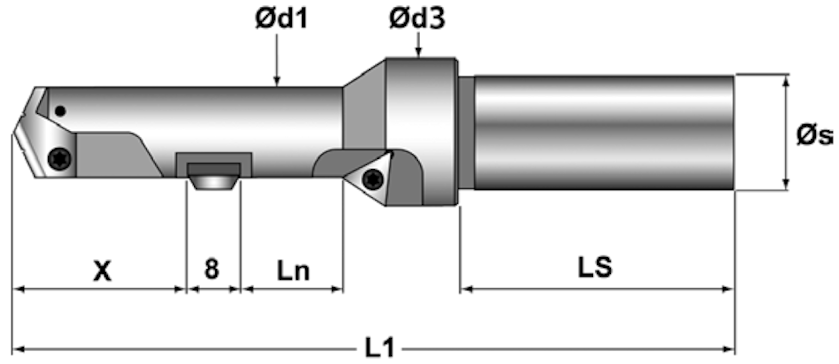

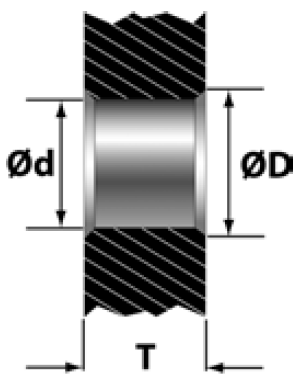

Ød Range mm | T | Ød1 | Ød3 | X | L1 | Ln | Ls | Øs |
| 0 | GH-Q-O-3657S | 13.0 - 14.9 | 16 (.630”) | 12.8 (.504”) | 24.0 (.945”) | 26.8 (1.055”) | 122.3 (4.815”) | 15.9 (.626”) | 50 (1.969”) | 20 (.787”) |
| GH-Q-O-3661S | 15.0 - 17.9 | 18 (.709”) | 14.8 (.583”) | 26.0 (1.024”) | 29.8 (1.173”) | 125.3 (4.933”) | 18.4 (.724”) | 50 (1.969”) | 20 (.787”) | |
| COMBI Series 0 Chamfer Drill and Chamfer Blades | |||||||||
|
 |
Blade, Carbide-TiN, 90°, front and back** Order Number (Chamfer ØD mm) |
|||||||
| Ød Drill* mm inches |
Tool Holder 1 Order # |
Drill Tip Order # |
(0.25mm x 45°) GH-Q-M- |
(0.5mm x 45°) GH-Q-M- |
(0.75mm x 45°) GH-Q-M- |
(1.0mm x 45°) GH-Q-M- |
Insert GH-H-P- |
||
| O | 13.0 .511 | GH-Q-O-3657S | P-A-O-1300-2A | 12 | -03742 (13.5) | -03743 (14.0) | -03744 (14.5) | -03745 (15.0) | -0128 |
| 13.5 .531 | GH-Q-O-3657S | P-A-O-1350-2A | -03743 (14.0) | -03744 (14.5) | -03745 (15.0) | -03746 (15.5) | |||
| 14.0 .551 | GH-Q-O-3657S | P-A-O-1400-2A | -03744 (14.5) | -03745 (15.0) | -03746 (15.5) | -03747 (16.0) | |||
| 14.29 9/16" | GH-Q-O-3657S | P-A-O-1429-2A | -03745 (15.0) | -03746 (15.5) | -03747 (16.0) | -03748 (16.5) | |||
| 14.5 .571 | GH-Q-O-3657S | P-A-O-1450-2A | -03745 (15.0) | -03746 (15.5) | -03747 (16.0) | -03748 (16.5) | |||
| 15.0 .591 | GH-Q-O-3661S | P-A-O-1500-2A | -03746 (15.5) | -03747 (16.0) | -03748 (16.5) | -03749 (17.0) | |||
| 15.5 .610 | GH-Q-O-3661S | P-A-O-1550-2A | -03747 (16.0) | -03748 (16.5) | -03749 (17.0) | -03750 (17.5) | |||
| 15.88 5/8" | GH-Q-O-3661S | P-A-O-1588-2A | -03748 (16.5) | -03749 (17.0) | -03750 (17.5) | -03751 (18.0) | |||
| 16.0 .630 | GH-Q-O-3661S | P-A-O-1600-2A | -03748 (16.5) | -03749 (17.0) | -03750 (17.5) | -03751 (18.0) | -0130 | ||
| 16.5 .650 | GH-Q-O-3661S | P-A-O-1650-2A | -03749 (17.0) | -03750 (17.5) | -03751 (18.0) | -03752 (18.5) | |||
| 17.0 .669 | GH-Q-O-3661S | P-A-O-1700-2A | -03750 (17.5) | -03751 (18.0) | -03752 (18.5) | -03753 (19.0) | |||
| 17.46 11/16" | GH-Q-O-3661S | P-A-O-1746-2A | -03751 (18.0) | -03752 (18.5) | -03753 (19.0) | -03754 (19.5) | |||
| * Non-stock standard item with extended delivery time. Spade drill 10 piece minimum. Other drill sizes available upon request. Example: Ød = 13.75mm (.541”) - P-A-O-1375-2A. ** Chamfer blades are interchangeable; maximum chamfer diameter ØD = hole Ød + 2mm. 1 Non-stock standard item with extended delivery time. |
|||||||||

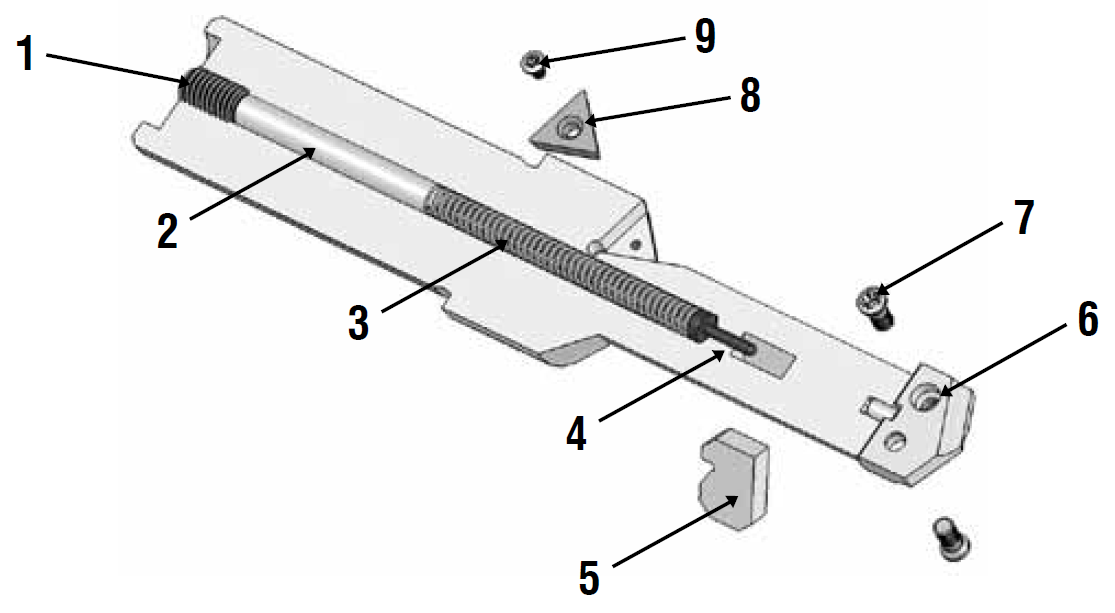

COMBI Drill/Countersink/Chamfer Tools Ø9.5-Ø17.99mm-Spare Parts |
|
Tool Holder | 1 | 2 | 3 | 4 | 7 | 8 | 9 | ||
| Set Screw | Distance Pin | Spring | Control Bolt | Torx Screw | Size | C’sink Insert | Torx Screw | Size | ||
| 0 | GH-Q-O-3657S | GH-H-S-0119 | GH-Q-E-0024 | GH-H-F-0007 | GH-Q-E-0002 | GH-H-S-0066 | T8 | GH-H-P-0128 | GH-H-S-0050 | T6 |
| GH-Q-O-3661S | GH-H-S-0119 | GH-Q-E-0024 | GH-H-F-0007 | GH-Q-E-0002 | GH-H-S-0067 | IP8 | GH-H-P-0130 | GH-H-S-0051 | T7 |

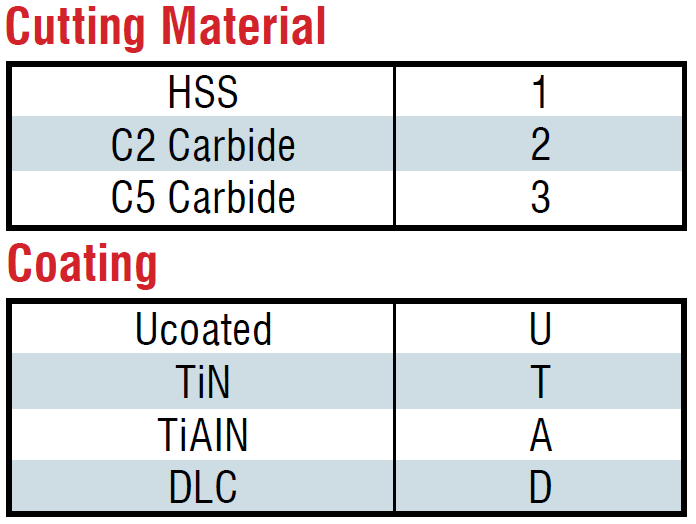

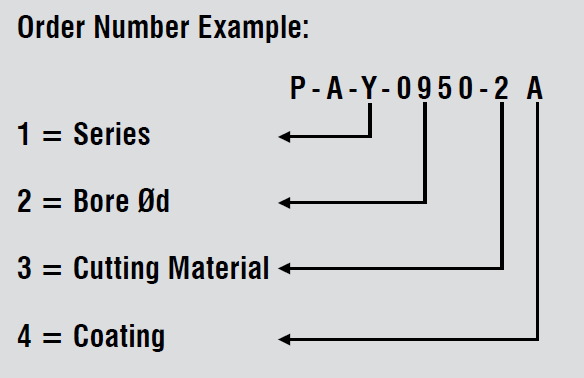

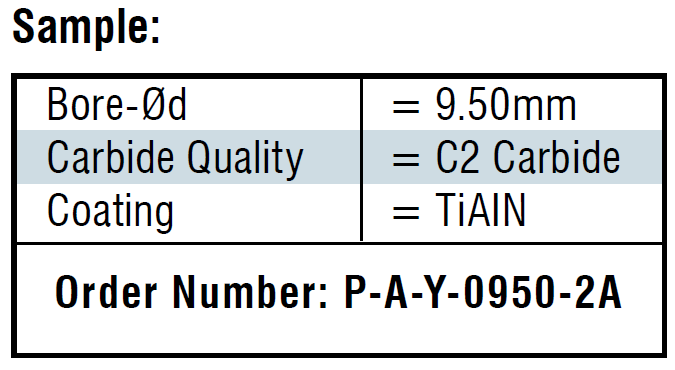

How to Order:   |
 |
|
 |
