| COMBI Drill Chamfer Tools Ø18.0-Ø24.9mm with Coolant Through | |||||||||||
 |
Tool Holder Order Number |
Ød Range mm |
T | Ød1 | B | Ød3 | X | L1 | Ln | Ls | Øs |
| 1 | GH-Q-O-3665S | 18.0 - 19.9 | 20 (.787”) | 17.5 (.689”) | 8 (.315”) | 28.0 (1.102”) | 34.6 (1.362”) | 125.6 (4.945”) | 22 (.866”) | 56 (2.205”) | 25 (.984”) |
| GH-Q-O-3669S | 20.0 - 24.9 | 24 (.945”) | 19.8 (.780”) | 10 (.394”) | 30.0 (1.181”) | 39.6 (1.559”) | 136.6 (5.378”) | 28 (1.102”) | 56 (2.205”) | 25 (.984”) | |
| COMBI Series 1 Chamfer Drill and Chamfer Blades | |||||||||
|
 |
Blade, Carbide-TiN, 90°, front and back** Order Number (Chamfer ØD mm) |
|||||||
| Ød Drill* mm inches |
Tool Holder 1 Order # |
Drill Tip Order # |
(0.25mm x 45°) GH-Q-M- |
(0.5mm x 45°) GH-Q-M- |
(0.75mm x 45°) GH-Q-M- |
(1.0mm x 45°) GH-Q-M- |
Insert GH-H-P- |
||
| 1 | 18.0 .709 | GH-Q-O-3665S | P-A-1-1800-2A | 12 | -03752 (18.5) | -03753 (19.0) | -03754 (19.5) | -03755 (20.0) | -0130 |
| 18.5 .728 | GH-Q-O-3665S | P-A-1-1850-2A | -03753 (19.0) | -03754 (19.5) | -03755 (20.0) | -03756 (20.5) | |||
| 19.05 3/4" | GH-Q-O-3665S | P-A-1-1905-2A | -03754 (19.5) | -03755 (20.0) | -03756 (20.5) | -03757 (21.0) | |||
| 19.50 .768 | GH-Q-O-3665S | P-A-1-1950-2A | -03755 (20.0) | -03756 (20.5) | -03757 (21.0) | -03758 (21.5) | |||
| 20.0 .787 | GH-Q-O-3669S | P-A-1-2000-2A | 20 | - | -03770 (21.0) | -03771 (22.0) | -03772 (23.0) | ||
| 21.0 .827 | GH-Q-O-3669S | P-A-1-2100-2A | - | -03771 (22.0) | -03772 (23.0) | -03773 (24.0) | |||
| 22.0 .866 | GH-Q-O-3669S | P-A-1-2200-2A | - | -03772 (23.0) | -03773 (24.0) | -03774 (25.0) | |||
| 23.0 .906 | GH-Q-O-3669S | P-A-1-2300-2A | - | -03773 (24.0) | -03774 (25.0) | -03775 (26.0) | |||
| 24.0 .945 | GH-Q-O-3669S | P-A-1-2400-2A | - | -03774 (25.0) | -03775 (26.0) | -03776 (27.0) | |||
| * Non-stock standard item with extended delivery time. Spade drill 10 piece minimum. Other drill sizes available upon request. Example: Ød = 26.5mm (1.043”) - P-A-2-2650-2A. ** Chamfer blades are interchangeable; maximum chamfer diameter ØD = hole Ød + 2mm. 1 Non-stock standard item with extended delivery time. |
|||||||||
 |

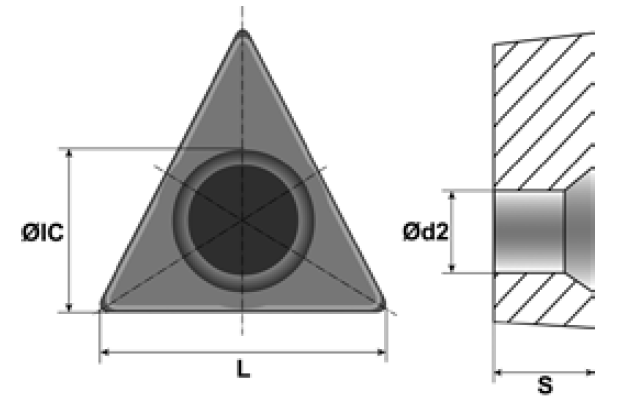

Indexable Inserts for Countersinking | |||||
| Drill Ød | ØIC | L | S | Ød2 | Order Number | |
| 15.0-35.0 | 6.35 | 11.0 | 2.38 | 2.8 | GH-H-P-0130 | |
COMBI Drill/Countersink/Chamfer Tools Ø18.0-Ø35.0mm-Spare Parts |
|
Tool Holder | 1 | 2 | 3 | 4 | 7 | 8 | 9 | ||
| Set Screw | Distance Pin | Spring | Control Bolt | Torx Screw | Size | C’sink Insert | Torx Screw | Size | ||
| 1 | GH-Q-O-3665S | GH-H-S-0119 | GH-Q-E-0026 | GH-H-F-0007 | GH-Q-E-0002 | GH-H-S-0068 | IP9 | GH-H-P-0130 | GH-H-S-0051 | T7 |
| GH-Q-O-3669S | GH-H-S-0119 | GH-Q-E-0026 | GH-H-F-0011 | GH-Q-E-0003 | GH-H-S-0069 | IP9 | GH-H-P-0130 | GH-H-S-0051 | T7 |
