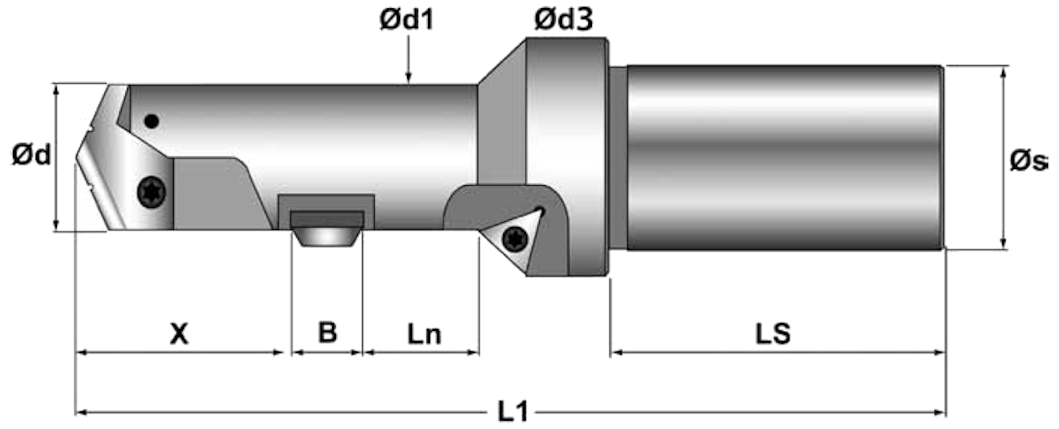

| COMBI Drill Chamfer Tools Ø25.0-Ø35.0mm with Coolant Through | |||||||||||
 |
Tool Holder Order Number |
Ød Range mm |

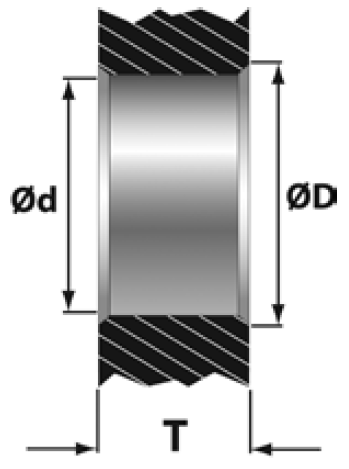

T | Ød1 | B | Ød3 | X | L1 | Ln | Ls | Øs |
| 2 | GH-Q-O-3673S | 25.0 - 29.9 | 30 (1.181”) | 24.2 (.953”) | 8 (.315”) | 38.0 (1.496”) | 48.6 (1.913”) | 155.6 (6.126”) | 32 (1.260”) | 60 (2.362”) | 32 (1.260”) |
| GH-Q-O-3677S | 30.0 - 35.0 | 38 (1.496”) | 29.8(1.173”) | 10 (.394”) | 42.0 (1.654”) | 59.6 (2.346”) | 171.6 (6.757”) | 40 (1.575”) | 60 (2.362”) | 32 (1.260”) | |
| COMBI Series 2 Chamfer Drill and Chamfer Blades | |||||||||
|
 |
Blade, Carbide-TiN, 90°, front and back** Order Number (Chamfer ØD mm) |
|||||||
| Ød Drill* mm inches |
Tool Holder 1 Order Number |
Drill Tip Order Number |
(0.5mm x 45°) GH-Q-M- |
(0.75mm x 45°) GH-Q-M- |
(1.0mm x 45°) GH-Q-M- |
Insert GH-H-P- |
|||
| 2 | 25.0 .984 | GH-Q-O-3673S | P-A-2-2500-2A | 20 | -03775 (26.0) | -03776 (27.0) | -03777 (28.0) | -0130 | |
| 25.4 1.00 | GH-Q-O-3673S | P-A-2-2540-2A | -03775 (26.0) | -03776 (27.0) | -03777 (28.0) | ||||
| 26.0 1.023 | GH-Q-O-3673S | P-A-2-2600-2A | -03776 (27.0) | -03777 (28.0) | -03778 (29.0) | ||||
| 27.0 1.063 | GH-Q-O-3673S | P-A-2-2700-2A | -03777 (28.0) | -03778 (29.0) | -03779 (30.0) | ||||
| 28.0 1.102 | GH-Q-O-3673S | P-A-2-2800-2A | -03778 (29.0) | -03779 (30.0) | -03780 (31.0) | ||||
| 29.0 1.141 | GH-Q-O-3673S | P-A-2-2900-2A | -03779 (30.0) | -03780 (31.0) | -03781 (32.0) | ||||
| 30.0 1.181 | GH-Q-O-3677S | P-A-2-3000-2A | -03780 (31.0) | -03781 (32.0) | -03782 (33.0) | ||||
| 31.0 1.220 | GH-Q-O-3677S | P-A-2-3100-2A | -03780 (31.0) | -03781 (32.0) | -03782 (33.0) | ||||
| 31.75 1 1/4" | GH-Q-O-3677S | P-A-2-3175-2A | -03781 (32.0) | -03782 (33.0) | -03783 (34.0) | ||||
| 32.0 1.260 | GH-Q-O-3677S | P-A-2-3200-2A | -03782 (33.0) | -03783 (34.0) | -03784 (35.0) | ||||
| 33.0 1.300 | GH-Q-O-3677S | P-A-2-3300-2A | -03783 (34.0) | -03784 (35.0) | -03785 (36.0) | ||||
| 34.0 1.339 | GH-Q-O-3677S | P-A-2-3400-2A | -03784 (35.0) | -03785 (36.0) | -03786 (37.0) | ||||
| 35.0 1.378 | GH-Q-O-3677S | P-A-2-3500-2A | -03785 (36.0) | -03786 (37.0) | -03787 (38.0) | ||||
| * Non-stock standard item with extended delivery time. Spade drill 10 piece minimum. Other drill sizes available upon request. Example: Ød = 26.5mm (1.043”) - P-A-2-2650-2A. ** Chamfer blades are interchangeable; maximum chamfer diameter ØD = hole Ød + 2mm. 1 Non-stock standard item with extended delivery time. |
|||||||||
COMBI Drill/Countersink/Chamfer Tools Ø18.0-Ø35.0mm-Spare Parts |
|
Tool Holder | 1 | 2 | 3 | 4 | 7 | 8 | 9 | ||
| Set Screw | Distance Pin | Spring | Control Bolt | Torx Screw | Size | C’sink Insert | Torx Screw | Size | ||
| 2 | GH-Q-O-3673S | GH-H-S-0119 | GH-Q-E-0029 | GH-H-F-0011 | GH-Q-E-0003 | GH-H-S-0072 | IP15 | GH-H-P-0130 | GH-H-S-0051 | T7 |
| GH-Q-O-3677S | GH-H-S-0119 | GH-Q-E-0030 | GH-H-F-0011 | GH-Q-E-0003 | GH-H-S-0072 | IP15 | GH-H-P-0130 | GH-H-S-0051 | T7 |
