Grooving and Boring  |

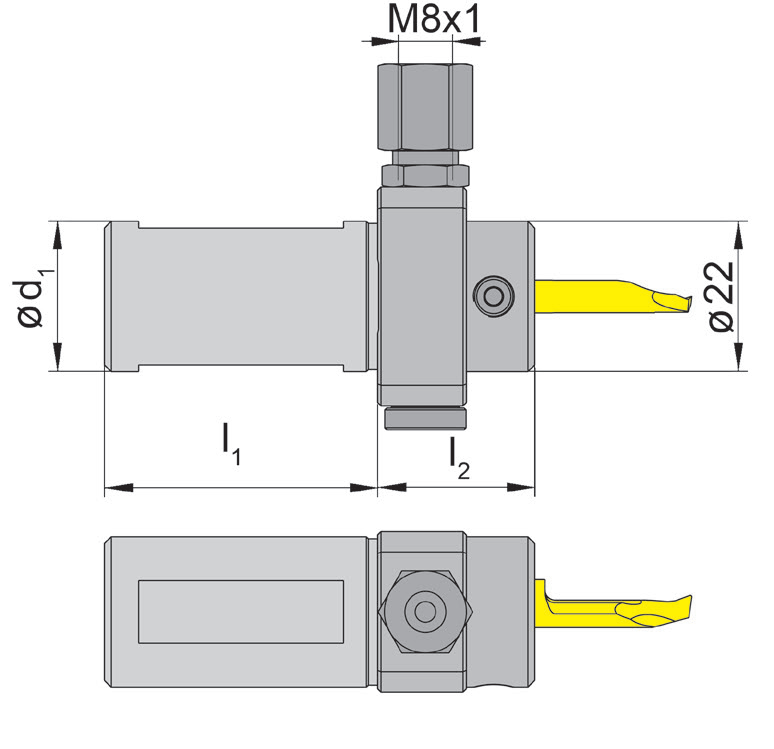

| Cartridge Graf | IR105 with through coolant supply |
 |
|||
| Bore Ø from |
0.2 mm |
||||
 Picture = right hand cutting version |
for Insert Type 105 |
||||
| Part number | d1 | l1 | l2 |
| IR105.1640.IKV | 16 | 40 | 23 |
| IR105.3440.IKV | 3/4'' | 40 | 23 |
| IR105.2040.IKV | 20 | 40 | 23 |
| IR105.2240.IKV | 22 | 40 | 23 |
| IR105.2560.IKV | 25 | 60 | 23 |
| IR105.1060.IKV | 1'' | 60 | 23 |
| Further sizes upon request | Dimensions in mm and inch | ||
| Spare Parts | ||||
| Basic toolholder Graf | Screw | Coolant Supply | TORX PLUS® Wrench | |
| IR105... | 6.075T15P | 004.00.19 | T15PQ | |
 |
|
 |
