Grooving and Boring  |

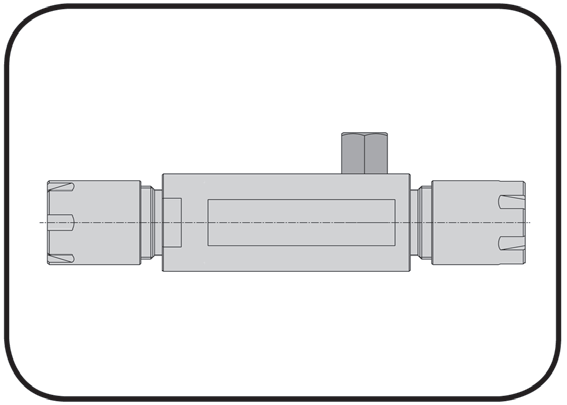

| Double chuck holders | GZ79 with through coolant supply |
 |
|||
| for chuck holders ER with |
chucking nuts ER16 |
||||
 |
|||||

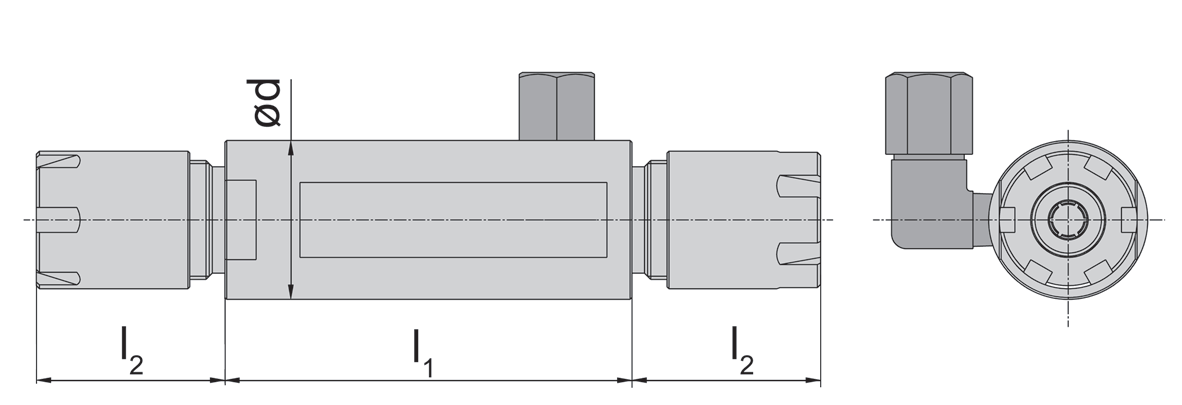

| Part number | d | l1 | l2 | ||
| GZ79.1065.16 | 1'' | 65 | 32 | ||
| GZ79.2065.16 | 20 | 65 | 32 | ||
| GZ79.22100.16 | 22 | 100 | 32 | ||
| GZ79.2262.16 | 22 | 62 | 32 | ||
| GZ79.2580.16 | 25 | 80 | 32 | ||
| GZ79.3470.16 | 3/4'' | 70 | 32 | ||
| Further sizes upon request | Dimensions in mm and inch | ||||
| Note: Coolant supply must be ordered separately! |
|||||
 |
|
 |
