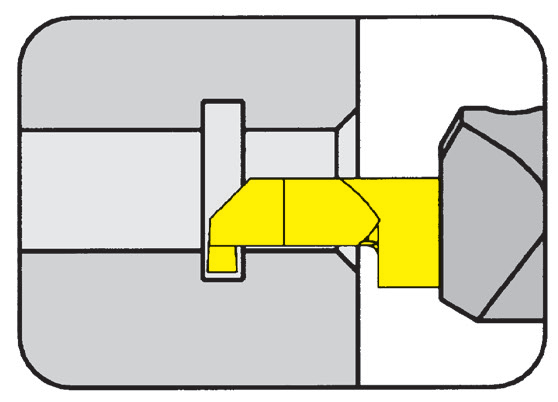

Grooving and Boring  |
| Toolholder | B105 with through coolant supply |
 |
|||
| Bore Ø from Depth of groove Width of groove up to |
0.2 mm 2.5 mm 2.0 mm |
||||

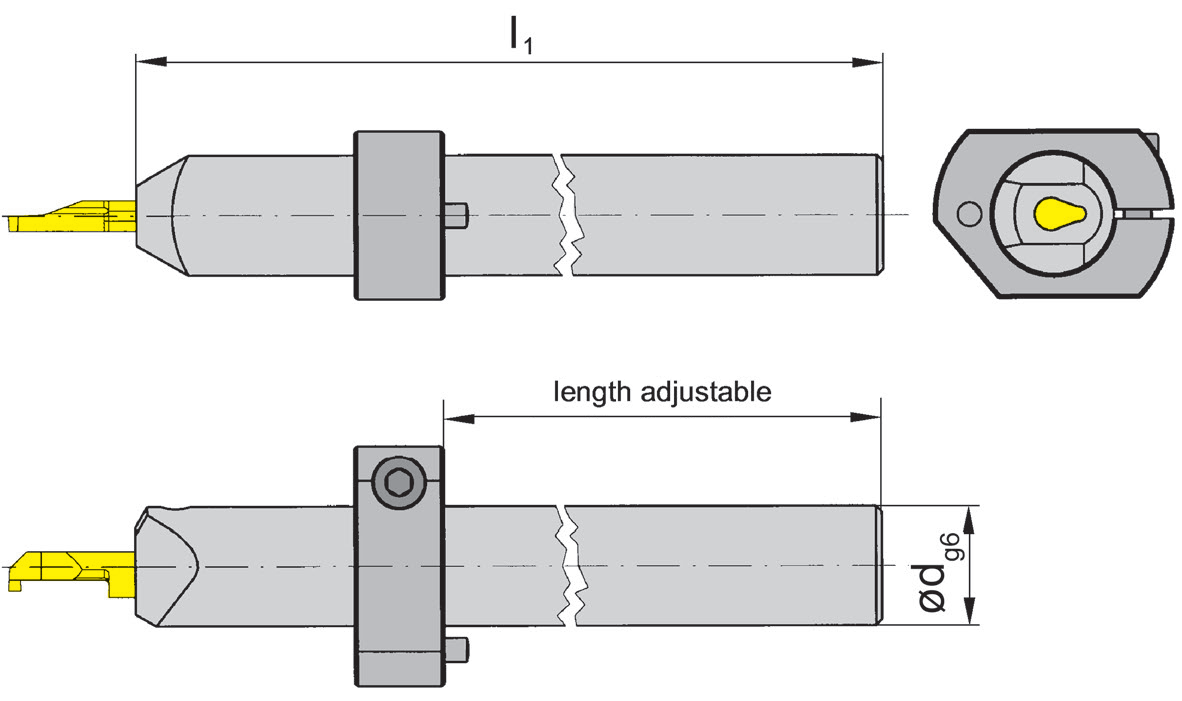

 Picture = right hand cutting version |
for Insert Type 105 |
||||
| Part number | d | l1 | |||
| B105.0020.2.01 | 20 | 150 | |||
| B105.0025.2.01 | 25 | 150 | |||
| Further sizes upon request | Dimensions in mm | ||||
| Ordering note: Toolholders can be used with right and left hand inserts. Adjusting ring is not combined with the toolholder - separate order required! |
|||||

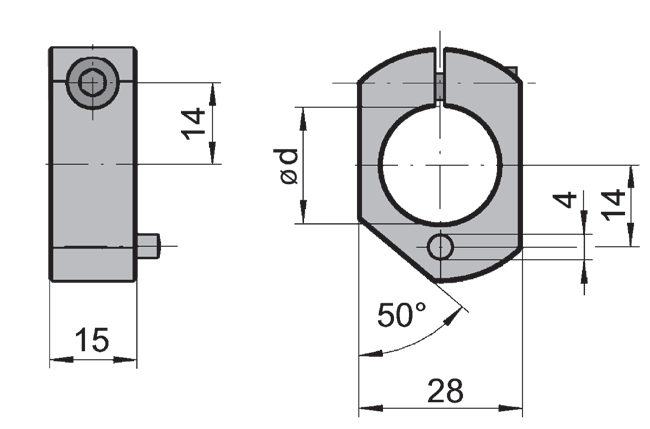

| Adjusting Ring | d | Type of machine | |
| 020.0020.1665 | 20 | Tornos | |
| 020.0025.2234 | 25 | Tornos |
| Spare Parts | ||||
| Toolholder | Screw | SMC elbow connector | TORX PLUS® Wrench | |
| B105... | 6.075T15P | KQ2L06-M5 | T15PQ | |
 |
|
 |
