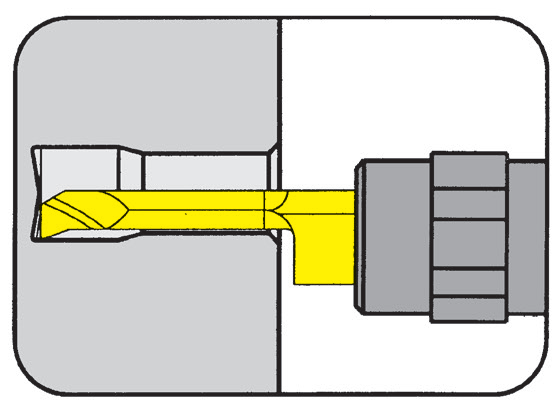

Grooving and Boring |
Toolholder | B105 with through coolant supply |
||||
Bore Ø from |
<3.0/>5.0mm |
||||
Picture = right hand cutting version |
for Insert Type 105 |

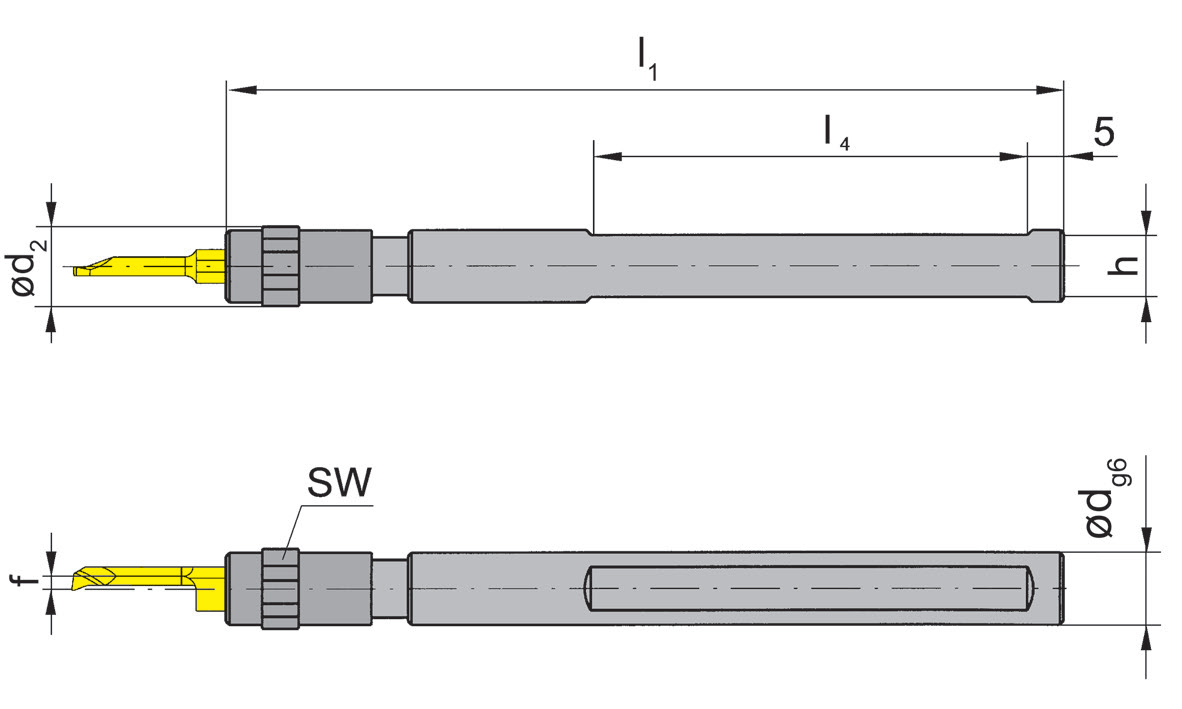

Part number | d | l1 | h | l4 | d2 | f | SW | *b |
B105.0010.9.01 | 10 | 100 | 9 | 50 | 11 | 1.6 | 10 | 5.9 |
B105.0012.11.01 | 12 | 100 | 11 | 50 | 16 | 1.2 | 13 | 7.0 |
B105.0016.11.01 | 16 | 100 | 15 | 50 | 16 | 1.2 | 13 | 7.0 |
Further sizes upon request | * b = Height of insert | Dimensions in mm | ||||||
Ordering note: Toolholders can be used with right and left hand inserts. |
Spare Parts | ||
Toolholder | Clamping nut | |
B105.0010.9.01 | 020.0010.1719 | |
B105.00... | 020.0016.1999 |
|
