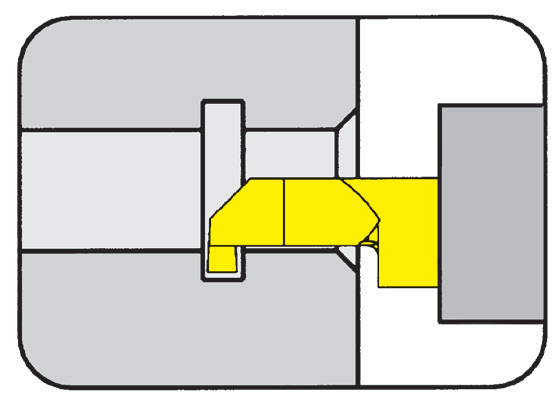

Grooving and Boring |
Toolholder | H105 with through coolant supply |
||||
Bore Ø from |
0.2 mm |
||||
L = left hand version shown R = right hand version |
for Insert Type 105 |

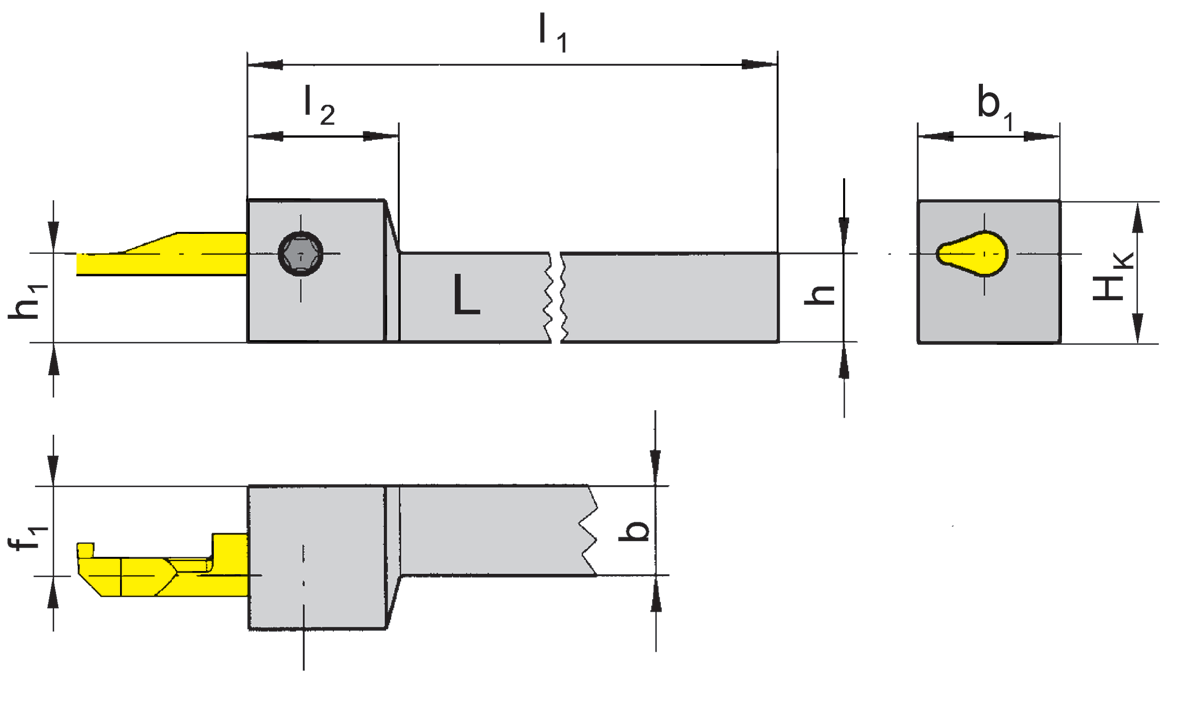

Part number | h | b | f1 | Hk | l2 | b1 | h1 | l1 |
R/LH105.0808.01 | 8 | 8 | 7.5 | 14 | 17 | 16 | 8 | 90 |
R/LH105.1010.01 | 10 | 10 | 7.5 | 16 | 17 | 16 | 10 | 90 |
R/LH105.1212.01 | 12 | 12 | 7.5 | 18 | 17 | 16 | 12 | 90 |
R/LH105.1616.01 | 16 | 16 | 7.5 | 22 | 17 | 16 | 16 | 110 |
State R or L version | Dimensions in mm | |||||||
Further sizes upon request |
Spare Parts | |||
Toolholder | Screw | TORX PLUS® Wrench | |
R/LH105... | 6.075T15P | T15PQ |
|
