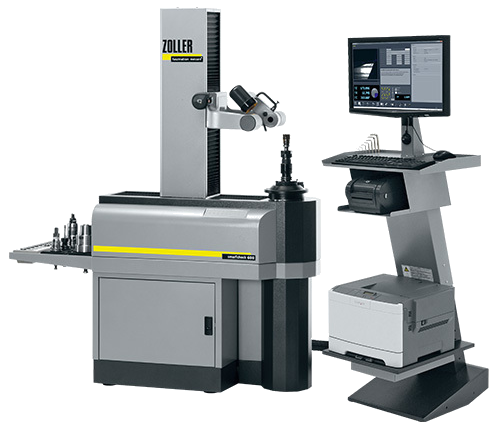

Whether as manual or 3 axis CNC version - the »smarTcheck« is the high-performance universal measuring machine for all cutting tools. The swiveling incident light camera allows you to check, measure and document the axial or radial geometries of your tools simply by using the mouse -
no special skills are required to operate the »smarTcheck«


Available in up to seven selectable measuring
   ranges in Z and X

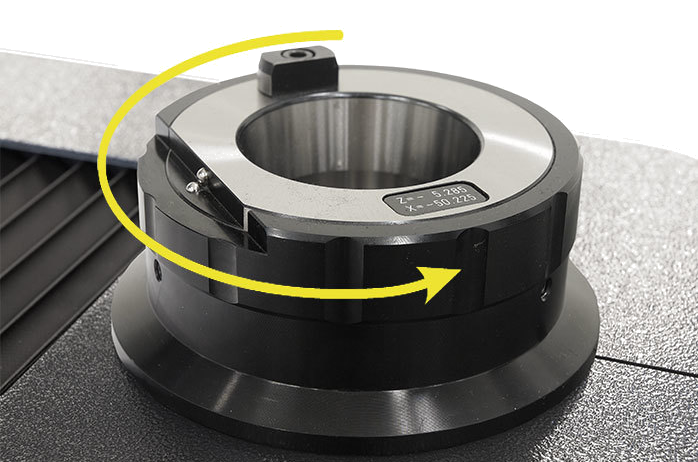

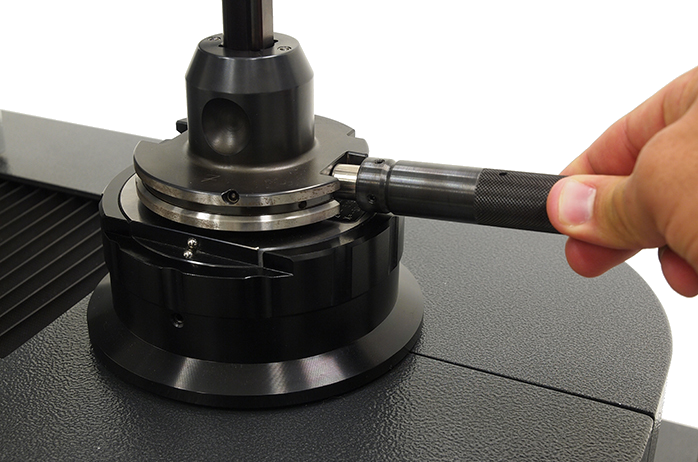

High-precision spindle »ace«
High precision spindle ISO 50 with integrated
   calibration edges, locking device 4 x 90°,



   spindle brake

Membrane keyboard for power-operated
   spindle brake and spindle lock

Lightweight metal construction with optimal
   thermal conductive capacity for use in



   workshops

Electronic fine adjustment of the X and Z axis

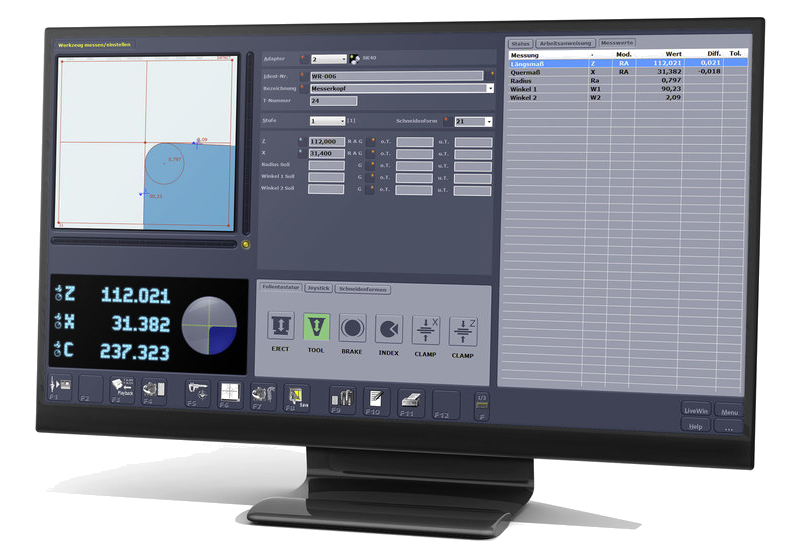

ZOLLER image processing software »pilot 3.0«


Heidenhain glass scales for high measuring accuracy
CCD camera with telecentric lens
Dynamic cross hairs over entire measuring window
Analog focusing display for focusing the tool cutting edge
Automatic cutting edge recognition, also greater than 90°
Cutting edge inspection with 50-fold magnification
Autofocus and rotary encoder / Tool inspection
Control unit »cockpit« / Manual projector function / Adapter and tool management
Zero point monitoring for process reliability
Numerous measuring programs, for example, concentricity and run-out
Machine table

Technical Data Measuring range Z Measuring range X Diameter Snap gauge ∅
 »smartcheck 450« 450-600-800 mm /
17.7-23.6-31.5"		 175 mm / 6.9" 350 mm / 13.8" 35 mm / 1.4"
 »smartcheck 600« 600-800-1000 mm /
23.6-31.5-39.4"		 175 mm / 6.9" 370 mm / 14.6" 80 mm / 3.15"
 »smartcheck 800« 600-800-1000-1200 mm /
23.6-31.5-39.4-47.2"		 500 mm / 19.7" 900 mm / 35.4" 300 mm / 11.8"
 Note: The quoted measuring range may be reduced under circumstances when using adapters and tool posts.



   State-of-the-art image processing technology

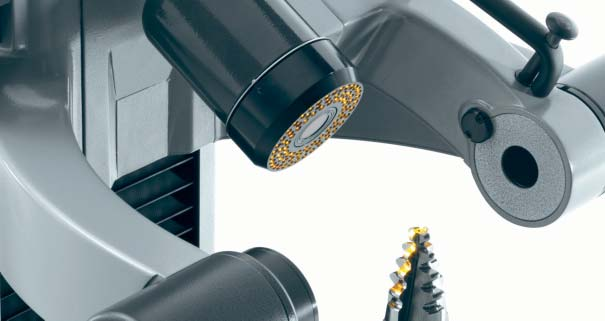

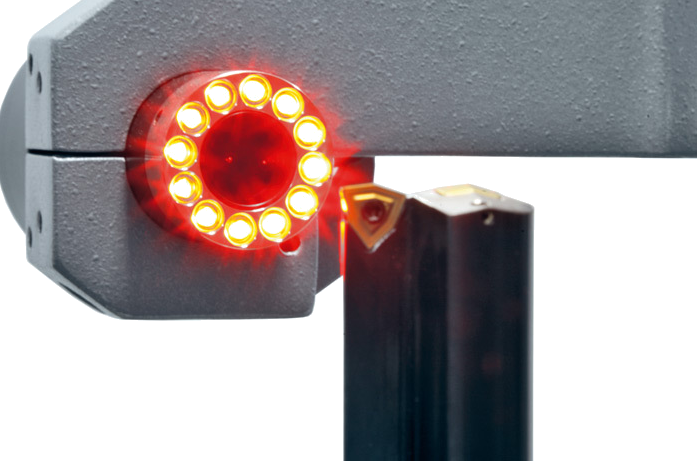

Autofocus and ROD encoder Cutting edge inspection


(standard)

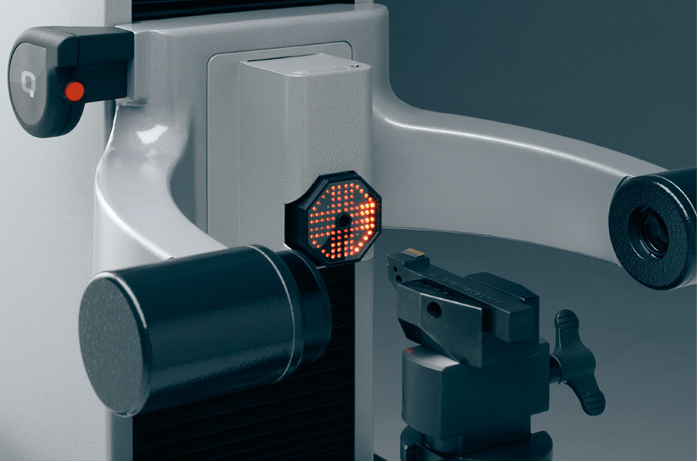

 Center height measuring device
  Snap gauge


(standard)

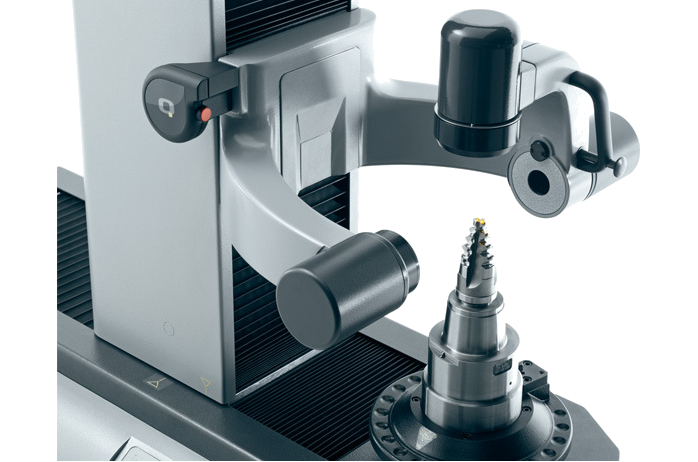

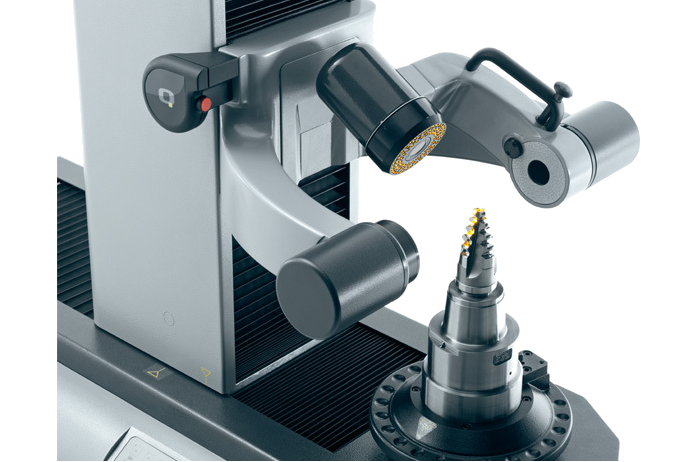

 High-precision


camera swiveling device

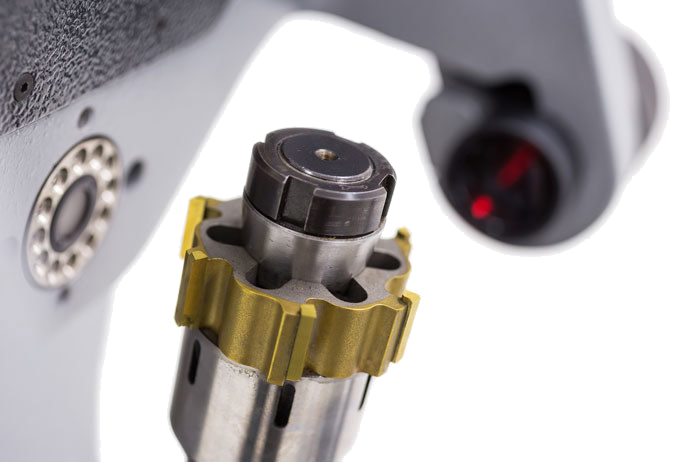

 Tool inspection


high-precision camera device

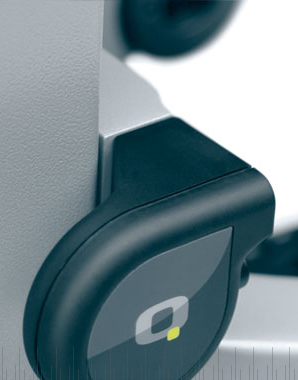

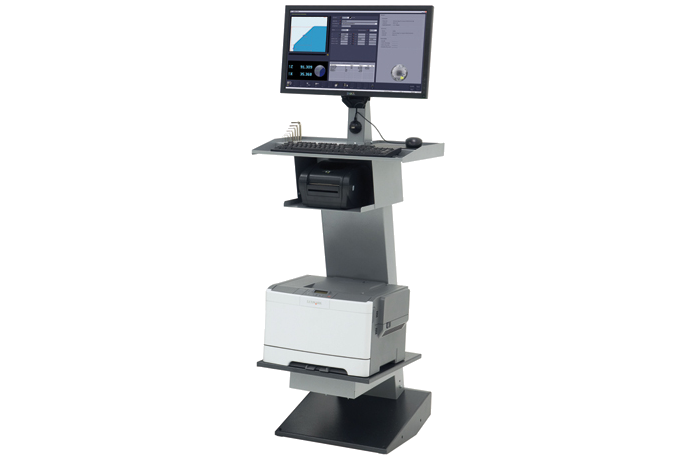

  Tool identification Label printer Control unit »cockpit«

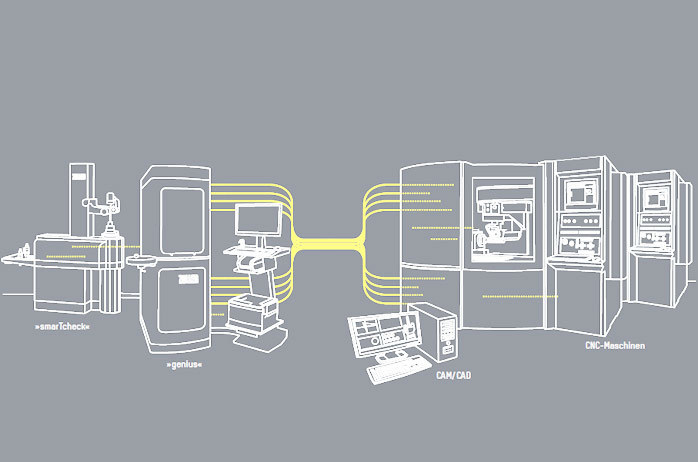

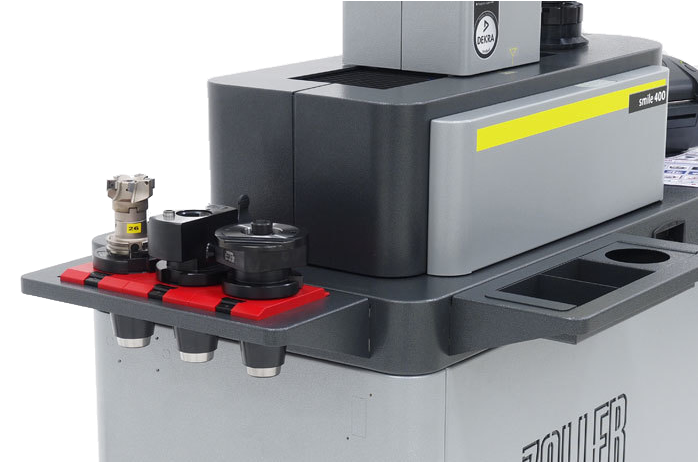

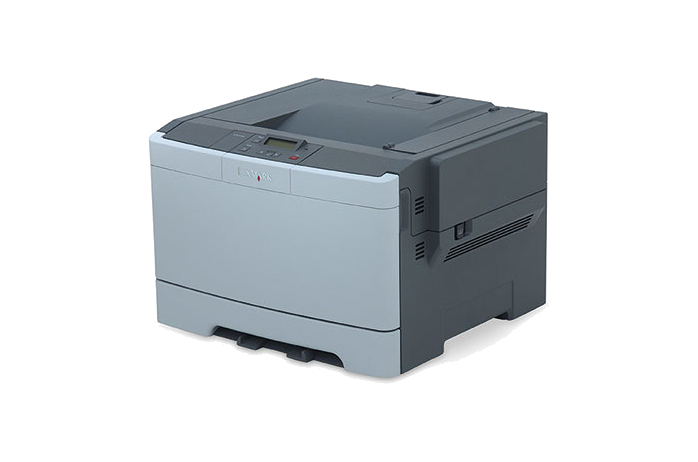

  Storage trays for adapters Color laser printer Data transmission

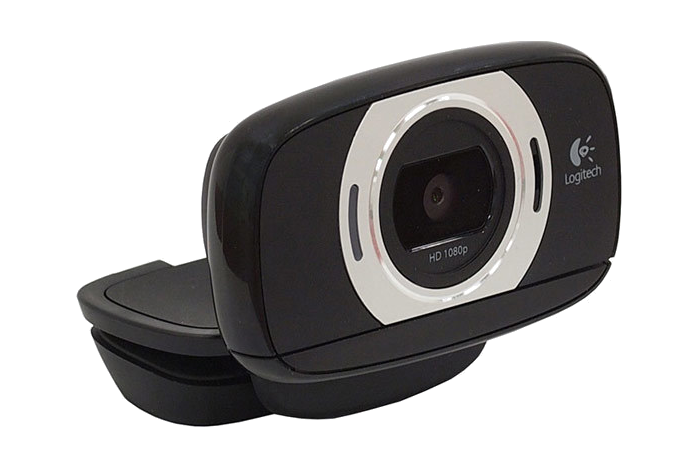

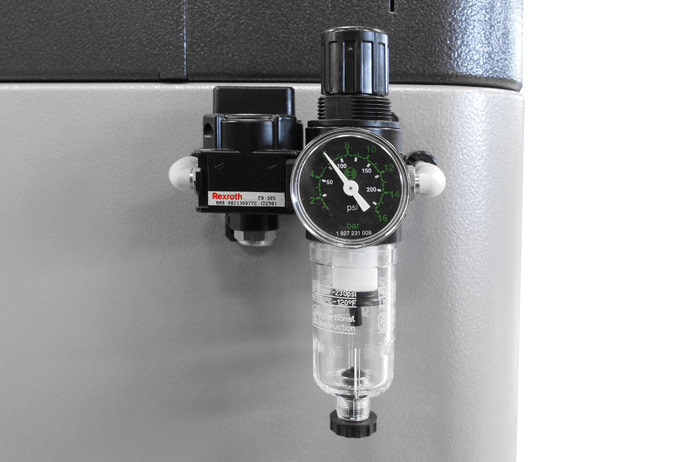

  Maintainance unit USB Camera

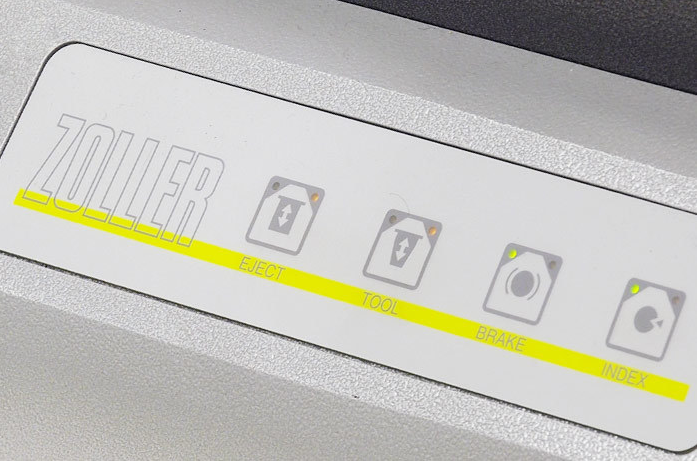

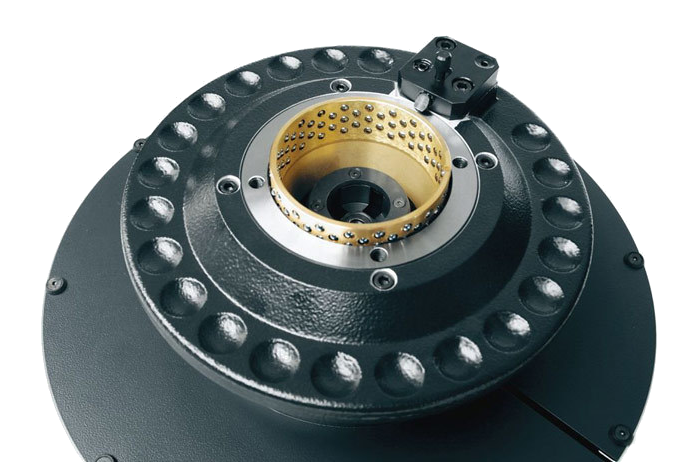

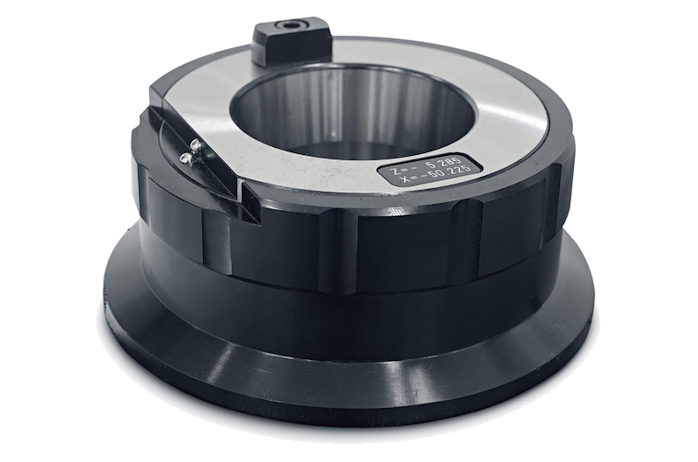

SK 50 high-precision spindle »ace« high-precision spindle Membrane keyboard

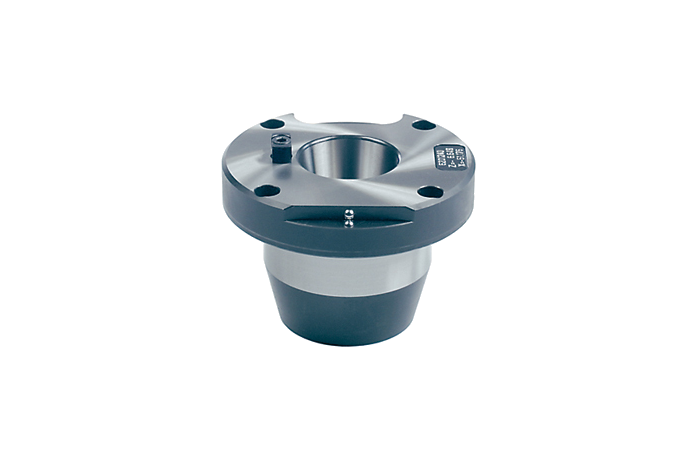

  SK 10 - 60 steep


taper adapter

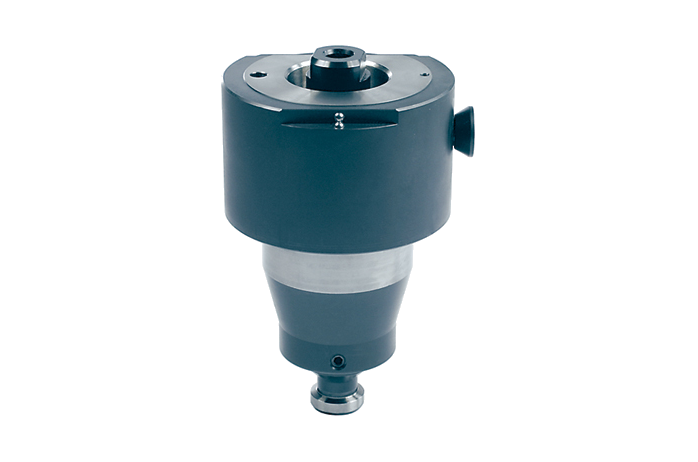

 HSK 25 - 125 hollow shank


taper adapter

 VDI 20 - 80 adapter

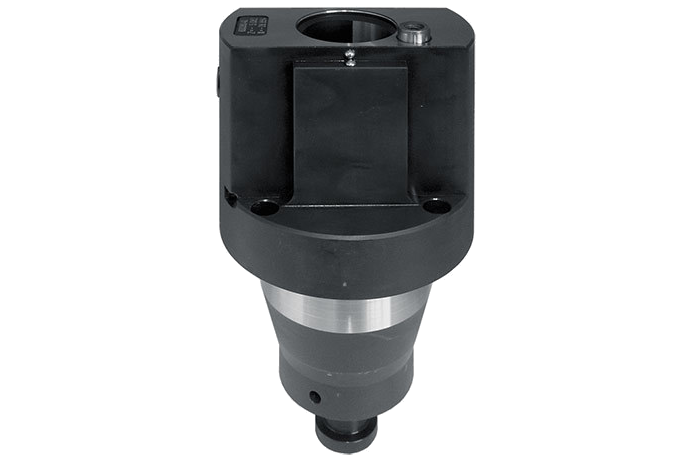

  SK 25 - 60


attachment holder

 HSK 25 - 160 hollow shank


attachment holder

 VDI 16 - 60


attachment holder





We reserve the right to make technical changes.
