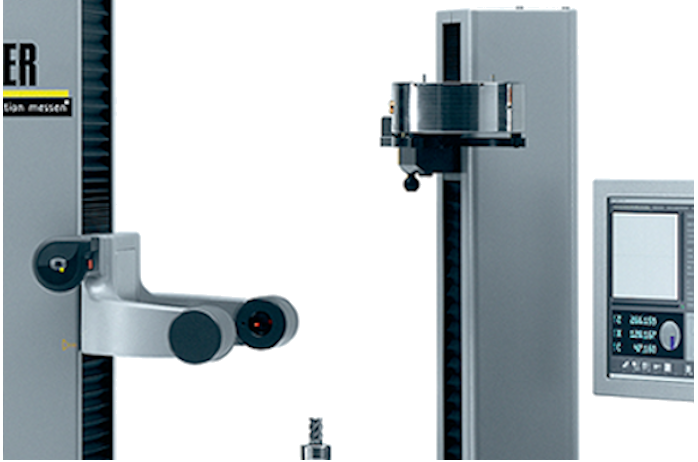

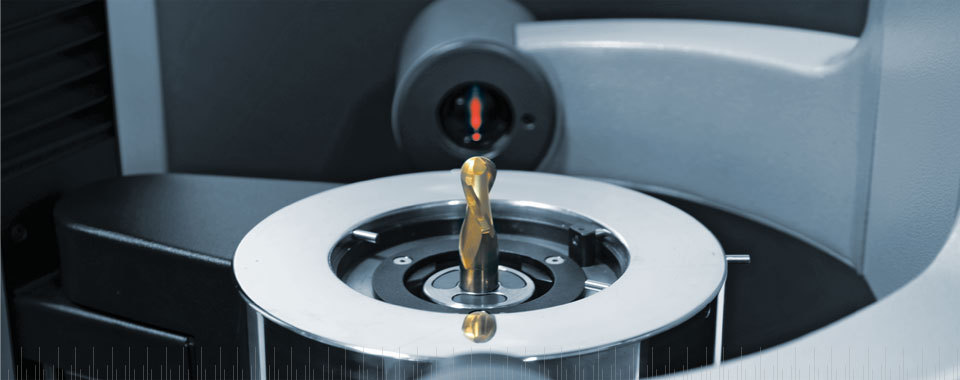

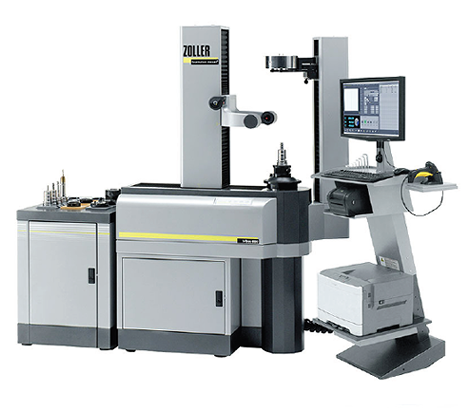

ZOLLER »tribos« is a presetting, measuring and shrink-clamping system equipped with the Schunk TRIBOS clamping system. Especially designed for shrinking of tools to nominal length in polygonal TRIBOS power shrink chucks as well as for presetting and measuring tools of all types. The TRIBOS clamping unit is automatically guided to the tool holding fixture and moved back into its original position after the clamping/unclamping procedure. It doesn't get any faster, more accurate and convenient than with ZOLLER »tribos«!


Schunk TRIBOS clamping system
Tailstock mechanism with Schunk TRIBOS
   clamping unit,automatic extension/retraction


High-precision spindle »ace«
Automatic slide unit for the TRIBOS clamping
   system

Side unit for TRIBOS hydraulics and shelves
Automatic zero point monitoring
Automatic alignment of the TRIBOS tool
   holding fixture*

Automatic pressure transfer ZOLLER/Schunk*
Autonomous application of the Schunk
   TRIBOS clamping system

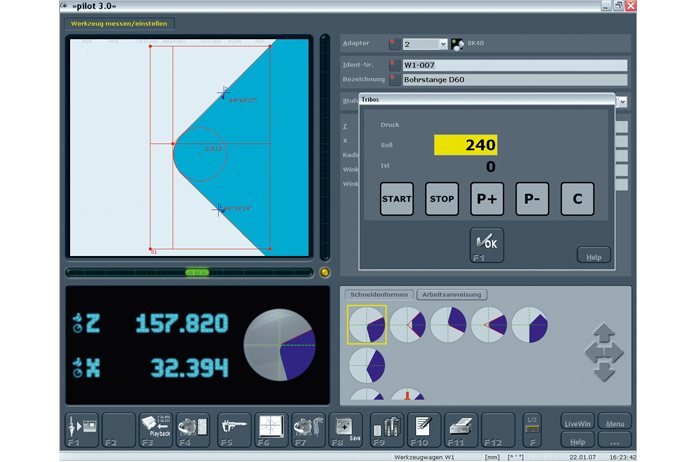

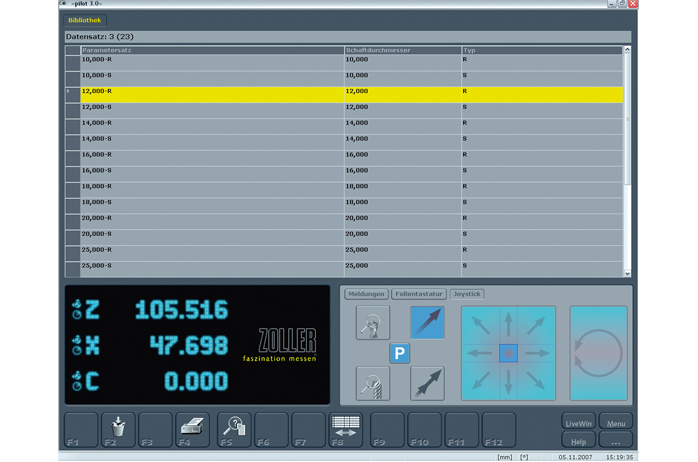

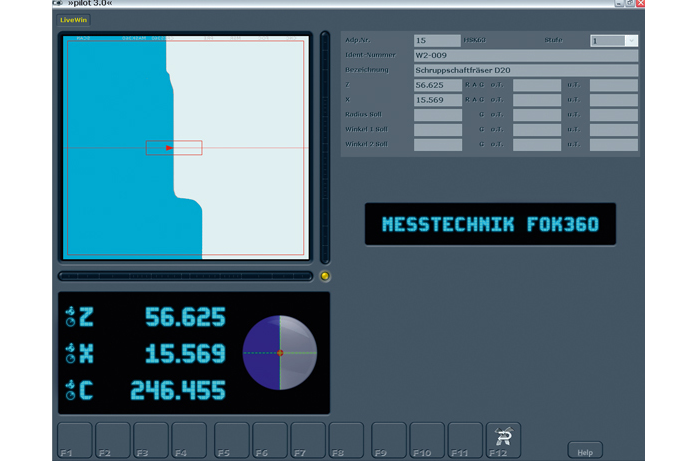

ZOLLER image processing software »pilot 3.0«

  *optional

Heidenhain glass scales for high measuring accuracy
CCD camera with telecentric lens
Dynamic cross hairs over entire measuring window
Analog focusing display for focusing the tool cutting edge
Automatic cutting edge recognition, also greater than 90°
Membrane keyboard for power-operated spindle brake and spindle lock
Electronic fine adjustment of the X and Z axis
Autofocus and rotary encoder / Tool inspection
Control unit »cockpit« / Manual projector function / Adapter and tool management
Zero point monitoring for process reliability
Numerous measuring programs, for example, concentricity and run-out
Machine table

Technical Data Measuring range Z Measuring range X Diameter Snap gauge ∅
 »tribos 600« 600 mm / 23.6"
220 mm / 8.6"
440 mm / 17.3"
200 mm / 7.8"
 »tribos 600/8« 800 mm / 31.4"
 Note: The quoted measuring range may be reduced under circumstances when using adapters and tool posts.



   State-of-the-art image processing technology


TRIBOS clamping unit Autofocus and ROD encoder Cutting edge inspection
  Side Unit for Schunk


TRIBOS hydraulics

 Tool identification Control unit »cockpit«
  Automatic alignment of the


Schunk tool holding fixtures

 Automatic pressure transfer


ZOLLER/Schunk

 Autonomous application of


the TRIBOS system

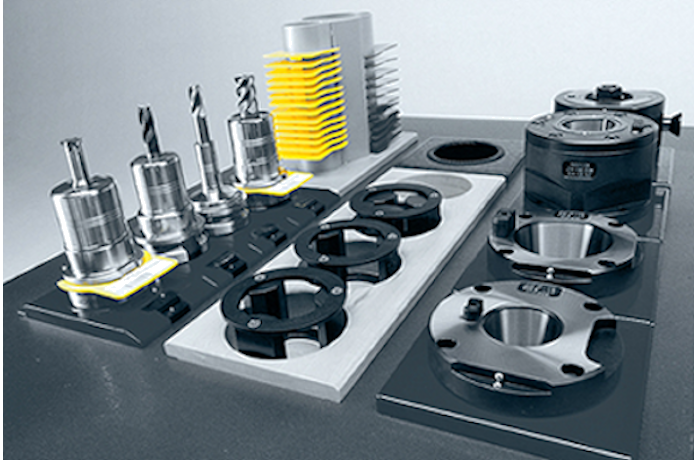

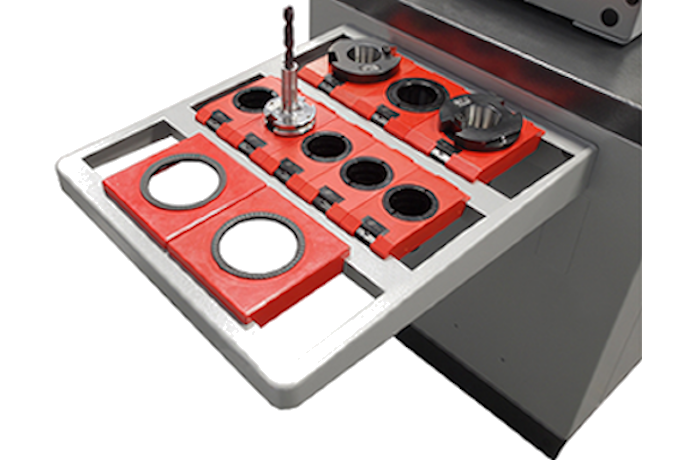

  Storage trays for adapters Color laser printer Label printer
  Maintainance unit Data transmission


SK 50 high-precision spindle »ace« high-precision spindle Membrane keyboard
  SK 25 - 60


attachment holder

 HSK 25 - 160 hollow shank


attachment holder

 Capto C 3 - 10


attachment holder
  VDI 16 - 60


attachment holder
