Grooving and Boring  |

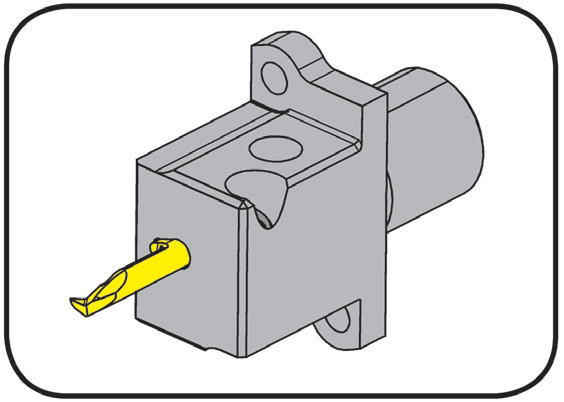

| Toolholder | B105 with through coolant supply |
 |
|||
| Bore Ø from Depth of groove Width of groove up to |
0.2 mm 2.5 mm 2.0 mm |
||||
Through coolant supply G1/8“ Hole pattern 13.7 x 37.6 mm  L = left hand version |
for Insert Type 105  |
||||

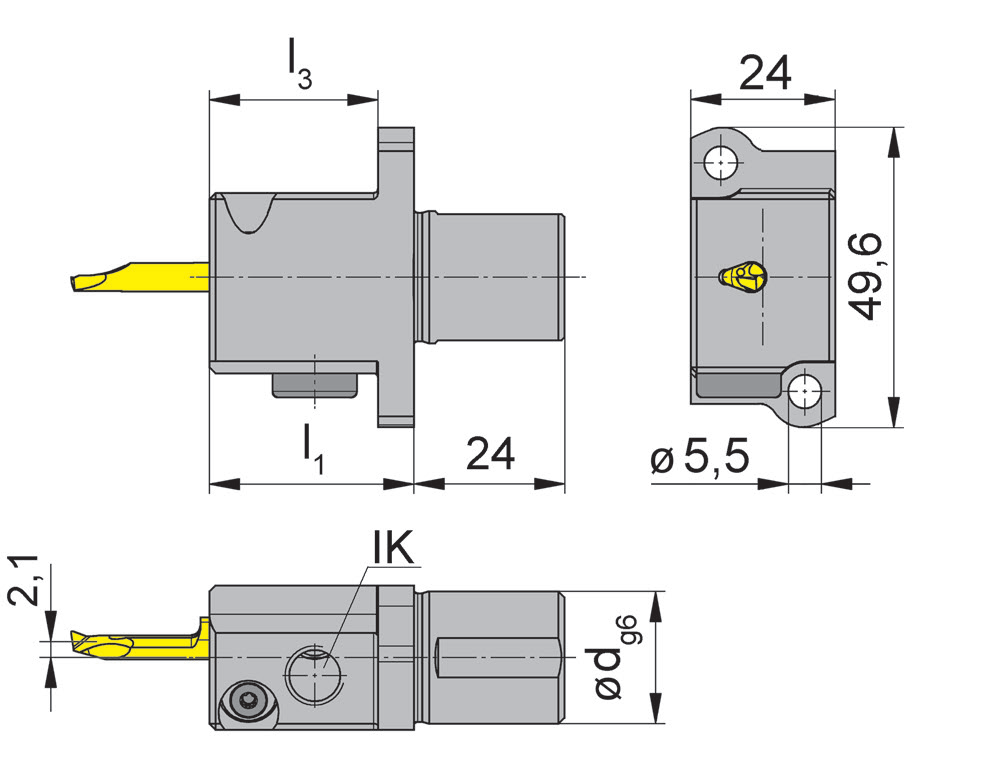

| Part number | d | l1 | l3 |
| LB105.A022.26.31 | 22 | 35 | 29 |
| Further sizes upon request | Dimensions in mm | ||
| Swiss Type Machines Star: ECAS-12/20, SB16D/E, SR-20, SR20J/JN, RS-20RII, RS-20RIII, RS-20RIV, RS-32J/JN, SW-12RII |
|||
| Spare Parts | |||
| Toolholder | Wrench | TORX PLUS® Wrench | |
| LB105.A022.26.31 | SW3.0 DIN911 | T10PL | |
 |
|
 |
