Grooving and Boring  |
| Toolholder | VDI with through coolant supply |
 |
|||

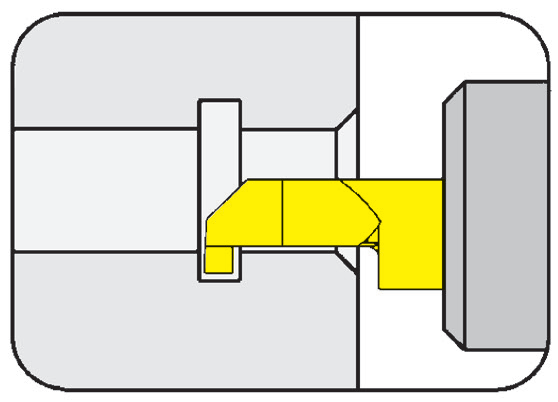

| Bore Ø from Depth of groove Width of groove up to |
0.2 mm 2.5 mm 2.0 mm |
||||
 L = left hand version shown R = right hand version |

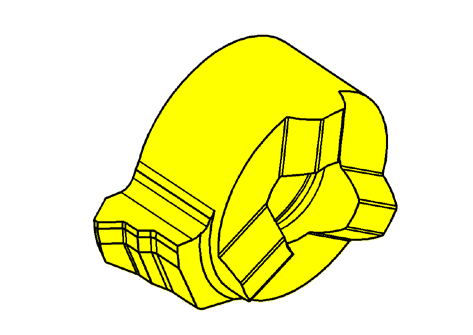

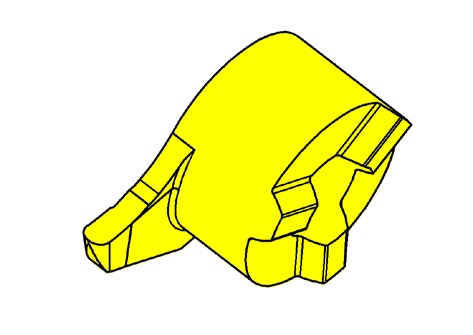

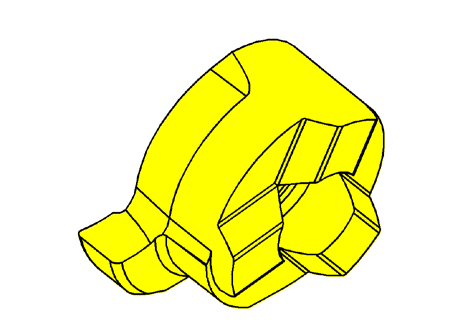

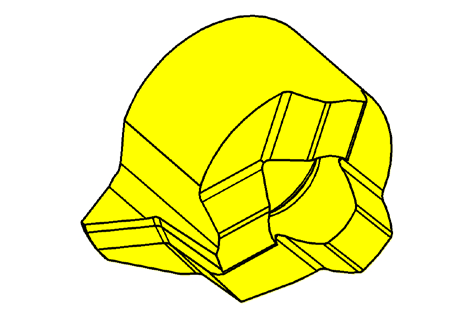

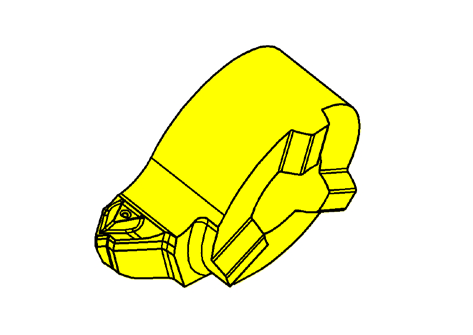

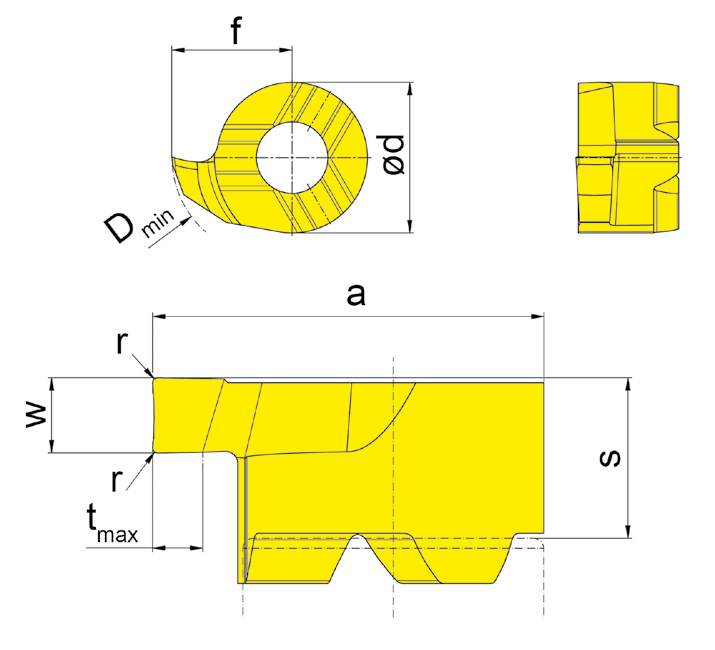

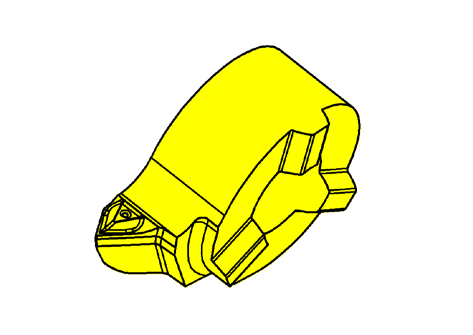

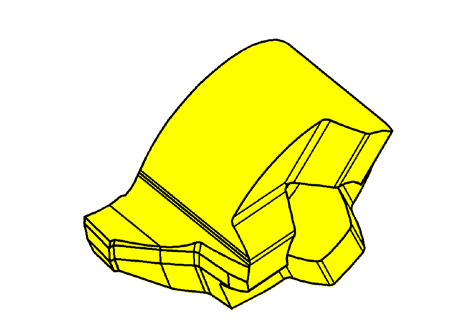

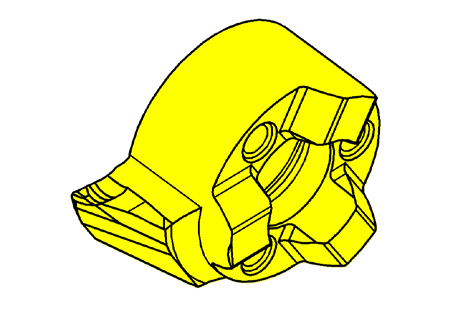

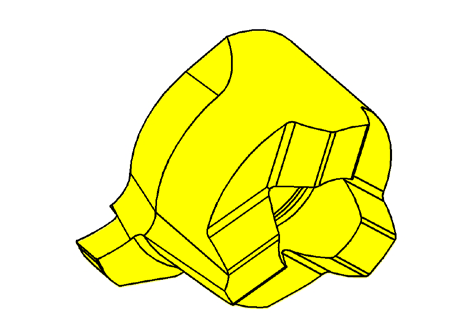

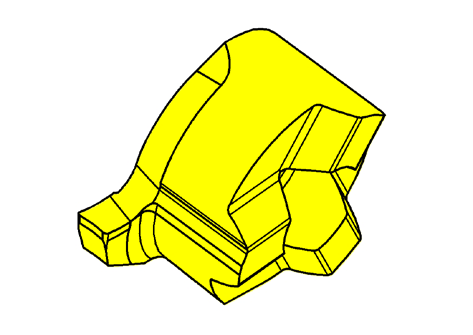

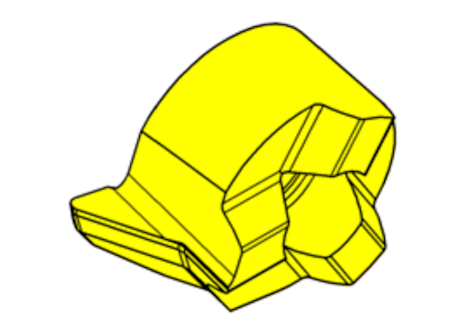

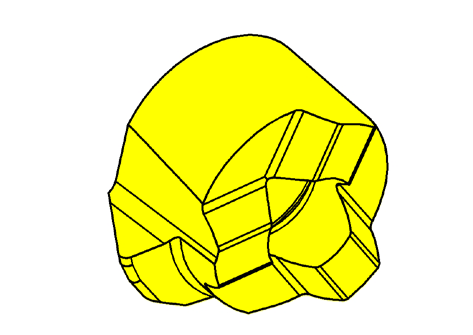

for Insert Type 105 |
||||

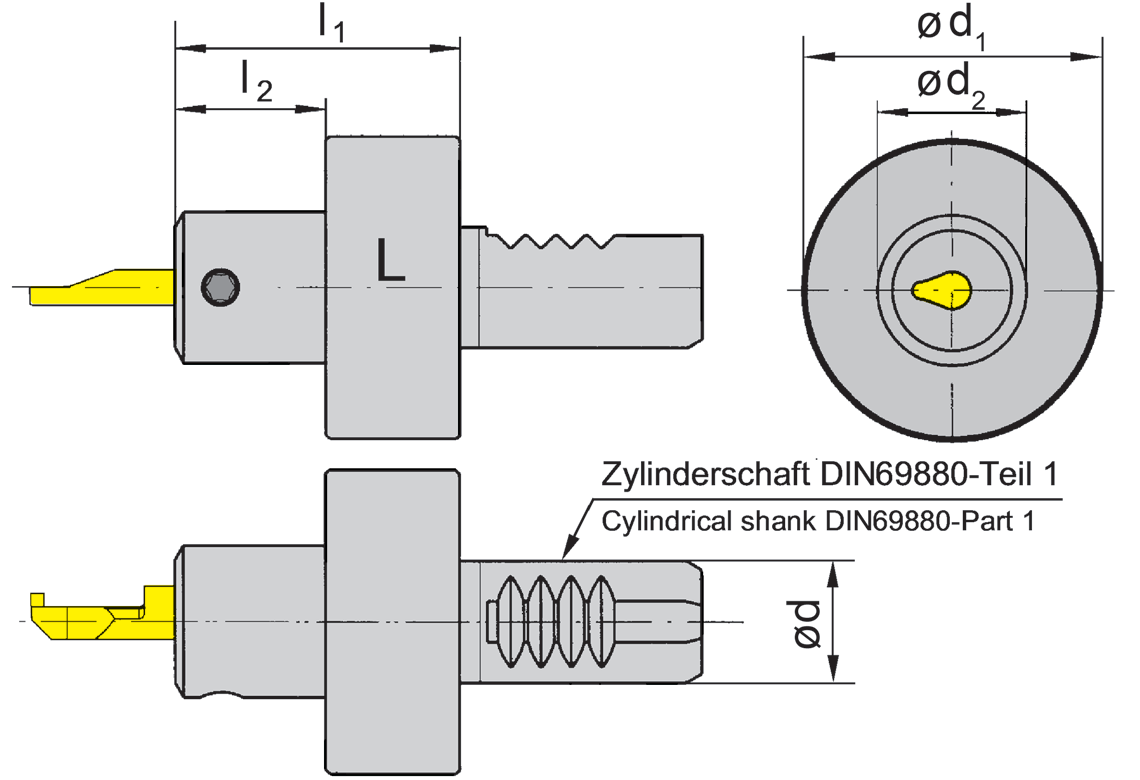

| Part number | d | l2 | l1 | d2 | d1 |
| VDI16.L105.20.01 | 16 | 20 | 38 | 20 | 40 |
| VDI16.R105.20.01 | 16 | 20 | 38 | 20 | 40 |
| VDI20.L105.20.01 | 20 | 20 | 38 | 20 | 50 |
| VDI20.R105.20.01 | 20 | 20 | 38 | 20 | 50 |
| VDI25.L105.20.01 | 25 | 20 | 38 | 20 | 58 |
| VDI25.R105.20.01 | 25 | 20 | 38 | 20 | 58 |
| VDI30.L105.20.01 | 30 | 20 | 38 | 20 | 68 |
| VDI30.R105.20.01 | 30 | 20 | 38 | 20 | 68 |
| VDI40.L105.20.01 | 40 | 20 | 38 | 20 | 83 |
| VDI40.R105.20.01 | 40 | 20 | 38 | 20 | 83 |
| State R or L version | Further sizes upon request | Dimensions in mm | |||
| Spare Parts | |||
| Toolholder | Screw | TORX PLUS® Wrench | |
| VDI16... | 6.075T15P | T15PQ | |
 |
|
 |
