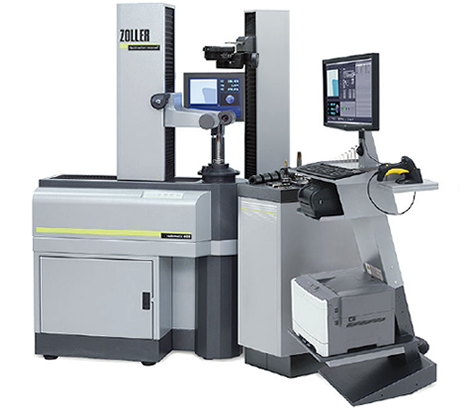

ZOLLER »redomatic« is the universal presetting, measuring and heat-shrink machine with a unique automatic length adjustment device. Especially designed for heat-shrinking of tools to nominal length while at the same time presetting and measuring tools of all kinds. With the automatic length adjustment device »ASZA« tools can be shrunk to at least ±10 μ accuracy – quick, easy and automatic. You only need 5 seconds to heat-shrink and 30 seconds to cool a tool!


4-axis CNC control unit and autofocus

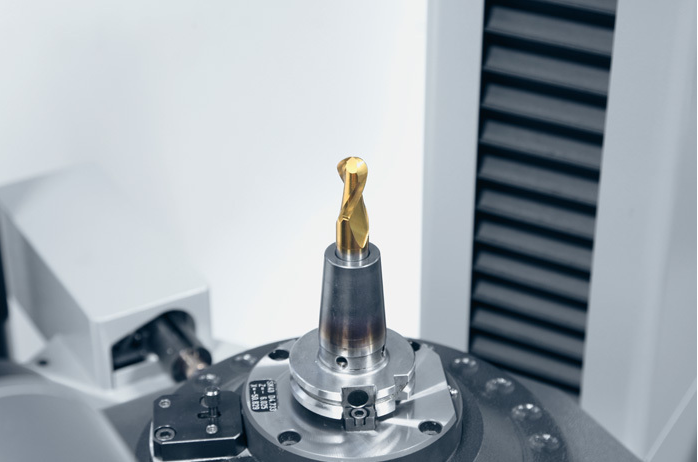

Combined presetting, heat-shrinking and
   measuring machine with tool turret, induction



   coil, tailstock and cooling system


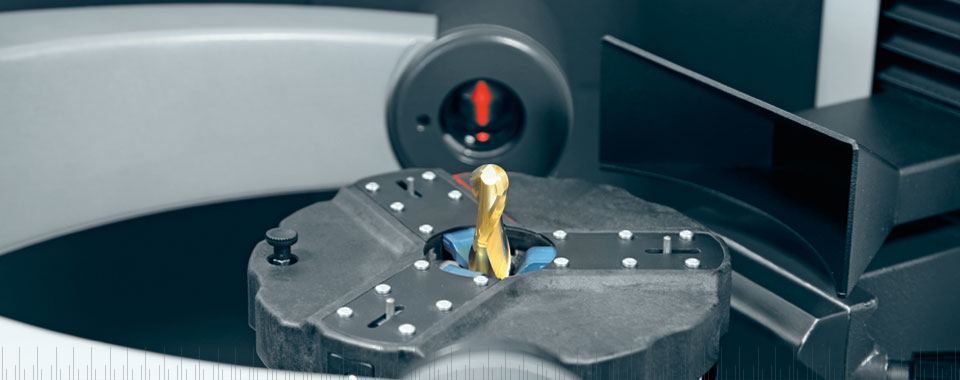

High-precision spindle »ace«
Induction shrink-clamping system 13 kVA
Length adjustment device »ASZA«
Heat-shrink guidance system »sls«*
Automatic monitoring of the shrinking length*
Monitoring of coolant tube*
MQL capability* / Gas suction device*
ZOLLER image processing software »pilot 3.0«

  *optional

Heidenhain glass scales for high measuring accuracy
CCD camera with telecentric lens
Adjustable induction coil, Carrier system, No stop disks necessary
Repeat and in-series shrinking functionality
Dynamic cross hairs over entire measuring window
Analog focusing display for focusing the tool cutting edge
Automatic cutting edge recognition, also greater than 90°
Membrane keyboard for power-operated spindle brake and spindle lock
Electronic fine adjustment of the X and Z axis
Autofocus and rotary encoder / Tool inspection
Control unit »cockpit« / Manual projector function / Adapter and tool management
Zero point monitoring for process reliability
Numerous measuring programs, for example, concentricity and run-out
Machine table

Technical Data Measuring range Z Measuring range X Swivel-mounted diameter Snap gauge ∅
 »redomatic 600« 600 mm / 23.6"
175 mm / 6.8"		 440 mm / 17.3"
200 mm / 7.8"
 »redomatic 800« 800 mm / 31.4" 630 mm / 24.8"
 Note: The quoted measuring range may be reduced under circumstances when using adapters and tool posts.



   State-of-the-art image processing technology

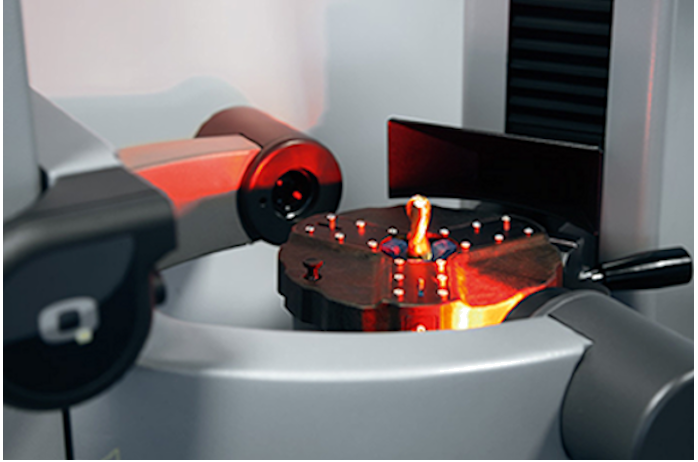

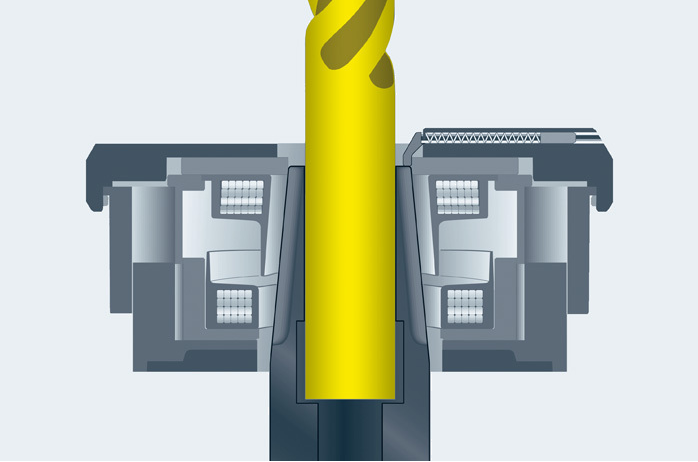

Induction coil 13 kVA for heat-


shrinking of carbide/HSS tools

 Heat-shrink guidance


system »sls«

 Integrated gas suction device
  Adjustable coil ZOLLER »masterPiece« in 60


seconds precise to 10 micron

 Control unit »cockpit«

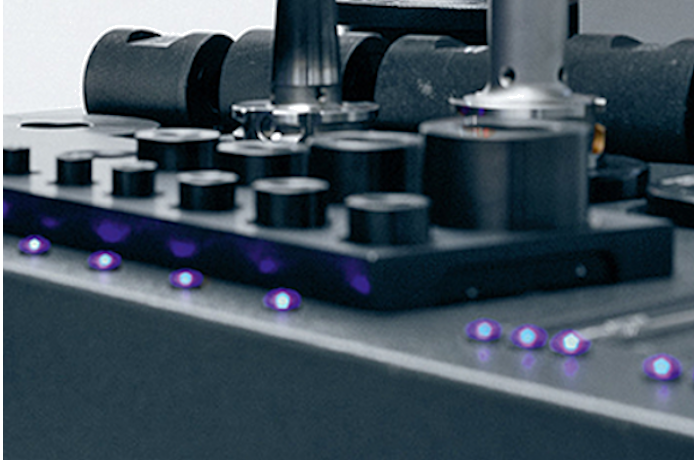

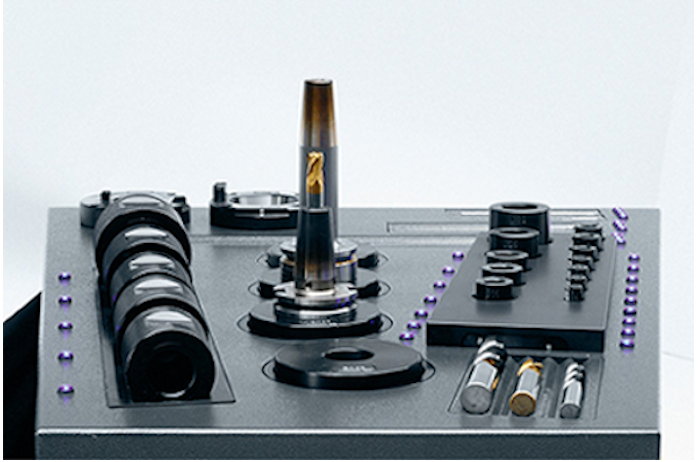

  Carrier system, Side-unit Tool identification Data transmission

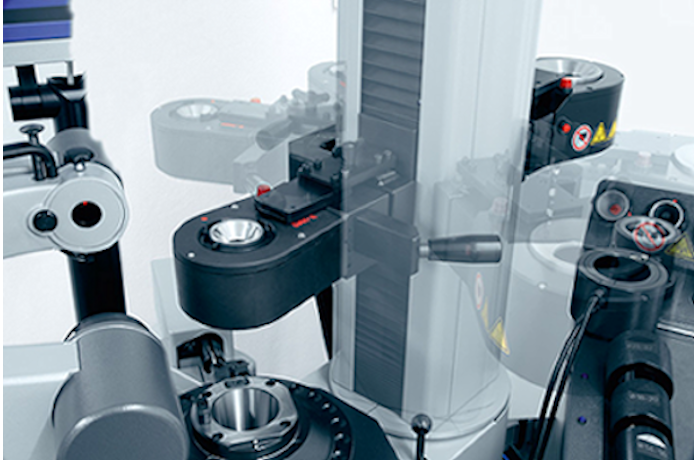

  Swivel device 10/20kVA shrinks


tools from ∅ 4 to ∅ 50 mm

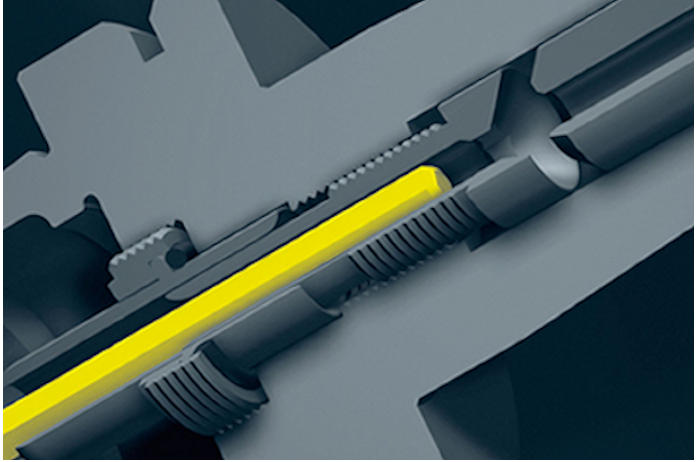

 Length adjustment device


»ASZA/MMS«

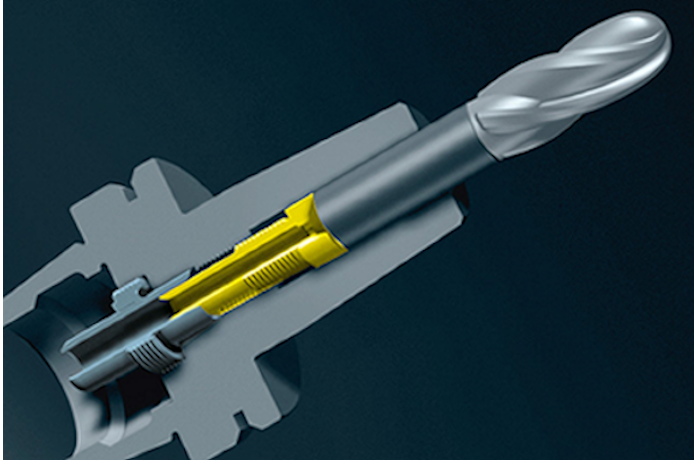

 Length adjustment device


»ASZA«
  Maintainance unit Color laser printer Label printer



»ace« high-precision spindle Membrane keyboard SK 25 - 60 steep


taper adapter
  HSK 25 - 160 hollow shank


taper adapter

 VDI 16 - 80 adapter
