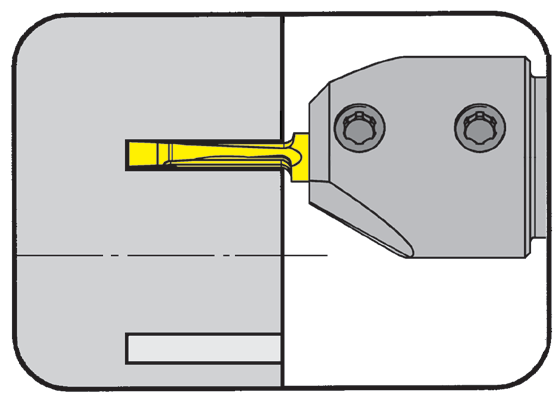

Face Grooving  |
| Toolholder | B105 with through coolant supply |
 |
|||
| from outer groove Ø Depth of groove Width of groove |
10 mm 15 mm 2 - 3 mm |
||||
 L = left hand version shown R = right hand version |
for Insert Type A105  |
||||

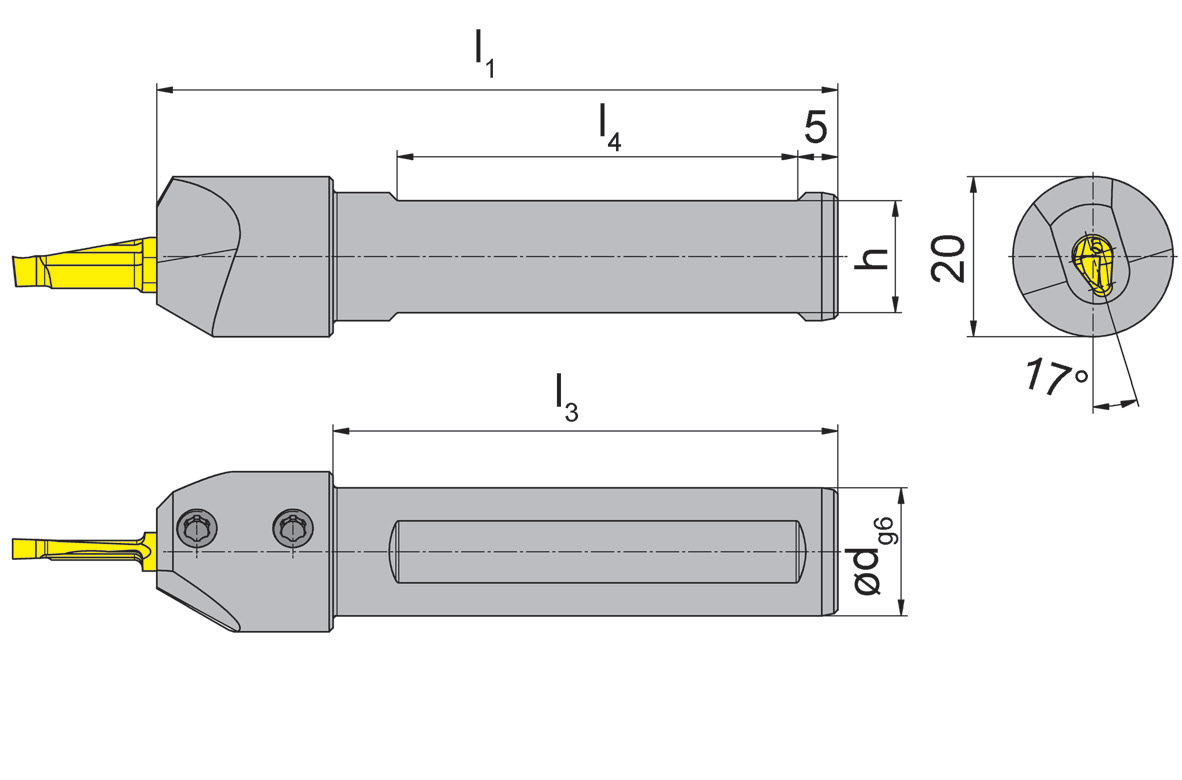

| Part number | d | l1 | l3 | h | l4 |
| R/LB105.0016.12.2 | 16 | 85 | 63 | 14 | 50 |
| R/LB105.0020.12.2 | 20 | 100 | - | 18 | 55 |
| State R or L version | Further sizes upon request | Dimensions in mm | |||
| Spare Parts | |||
| Toolholder | Screw | TORX PLUS® Wrench | |
| R/LB105... | 6.075T15P | T15PQ | |
 |
|
 |
