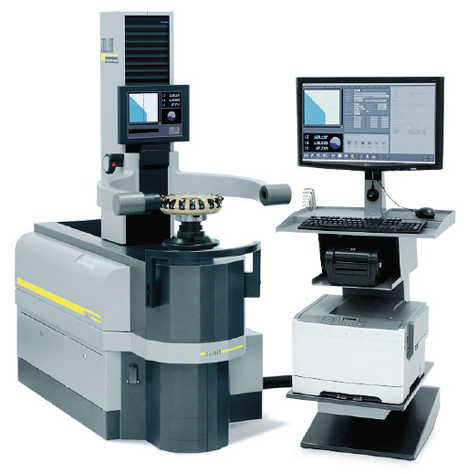

ZOLLER »zenit« is the high-precision presetter and measuring machine with an ergonomic workplace for milling heads and tools of all kinds increases the quality of your workpieces while cutting costs.  It will preset your face and right-angle milling heads precisely to guarantee your workpieces will be accurate and level.  Special measuring programs for milling and PKD cutters, right-angle and face milling cutters and round blanking dies.


2-axis CNC control unit and autofocus
Presetting and measuring of multiple cutting
   tools, especially right-angle milling heads and



   face milling cutters

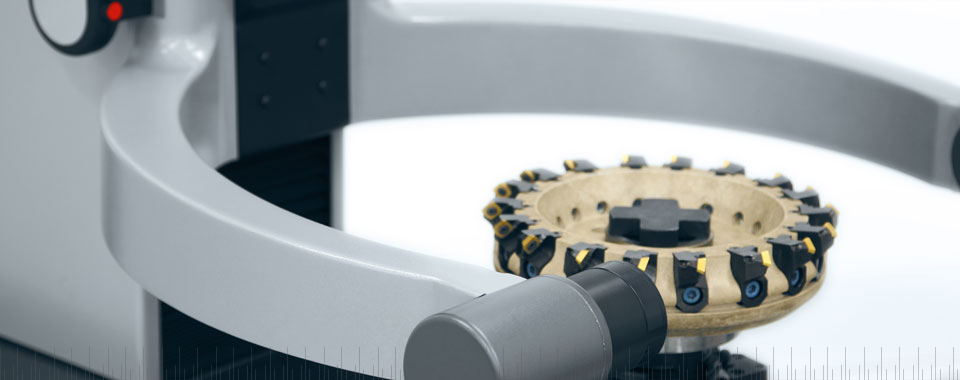

High-precision spindle »ace«
Ergonomic seated work position with a perfect
   access to the spindle which grants a comfortable



   presetting of the tool cutting edges

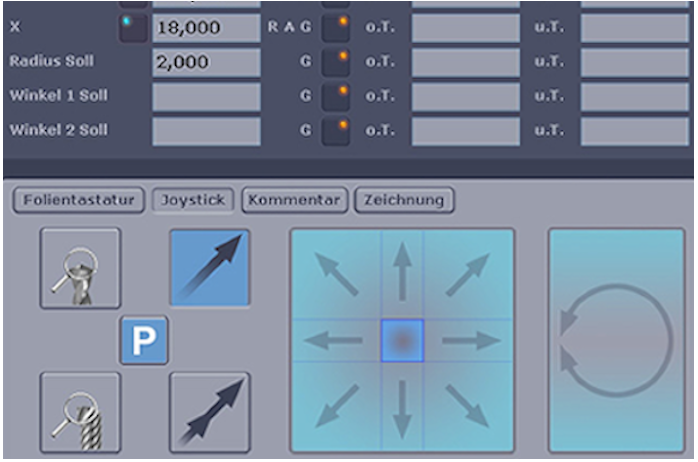

CNC-basis/joystick »aep« for an automatic
   positioning of the measuring slide at the tool



   cutting edge

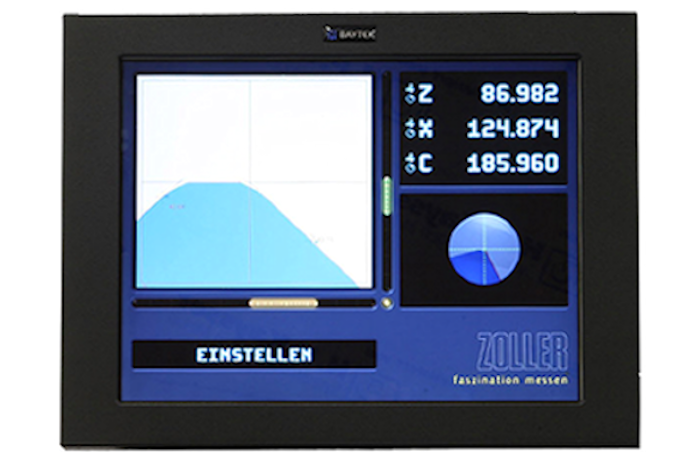

Additional monitor display makes the cutting
   edge display more ergonomic when presetting



   the tools


ZOLLER image processing software »pilot 3.0«

Heidenhain glass scales for high measuring accuracy
CCD camera with telecentric lens
Dynamic cross hairs over entire measuring window
Analog focusing display for focusing the tool cutting edge
Automatic cutting edge recognition, also greater than 90°
Membrane keyboard for power-operated spindle brake and spindle lock
Autofocus and rotary encoder / Tool inspection
Control unit »cockpit« / Adapter and tool management
Special measuring programs to measure and preset PCD-cutting edges, corner and
   face cutting edges as well as round cutting plates


Numerous measuring programs, for example, concentricity and run-out
Machine table

Technical Data Measuring range Z Measuring range X Diameter Snap gauge ∅
 »zenit 600« 600 mm / 23.6" 250 mm / 9.8"
375 mm / 14.8" *		 500 mm / 19.7"
650 mm / 25.6" *		 500 mm / 19.7"
250 mm / 9.8" *
 »zenit 800« 800 mm / 31.4"
 »zenit 1000« 1000 mm / 39.4"
 »zenit 1200« 1200 mm / 47.2"
 Note:  The quoted measuring range may be reduced under circumstances when using adapters and tool posts.
   * Optionally available. When a diameter of 650 mm is chosen, the diameter of the calliper gauge reduces.



   State-of-the-art image processing technology


Autofocus and ROD encoder Cutting edge inspection Control unit »cockpit«
  CNC-Basis/Joystick »a.e.p.« Tool identification Additional monitor display
  Data transmission Color laser printer Label printer
  Maintainance unit

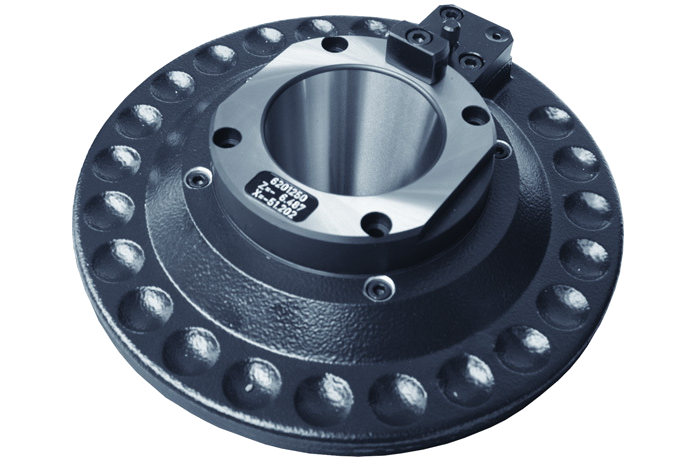

»hgv-uz« high-precision


spindle

 »ace« high-precision spindle Membrane keyboard
  SK 25 - 60


attachment holder

 HSK 25 - 160 hollow shank


attachment holder

 Capto C 3 - 10


attachment holder
  VDI 16 - 60


attachment holder

 KM 32 - 63


attachment holder







We reserve the right to make technical changes.
