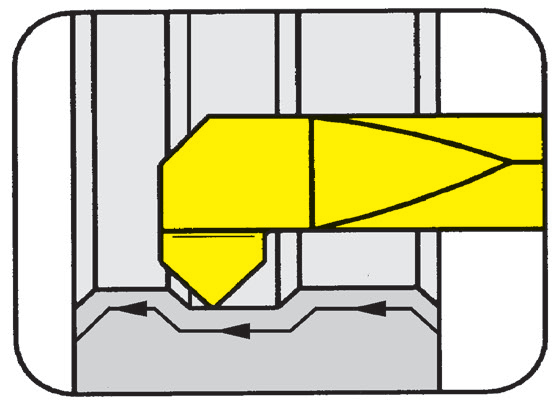

Boring and Profiling  |
| Insert | 105 |
 |
|||
| Bore Ø from |
5.0 mm |
||||
 R = right hand version shown L = left hand version |
for Toolholder Type H105 HC105 B105 VDI B105C B105TS IR105 962 AIH 963 N |
||||

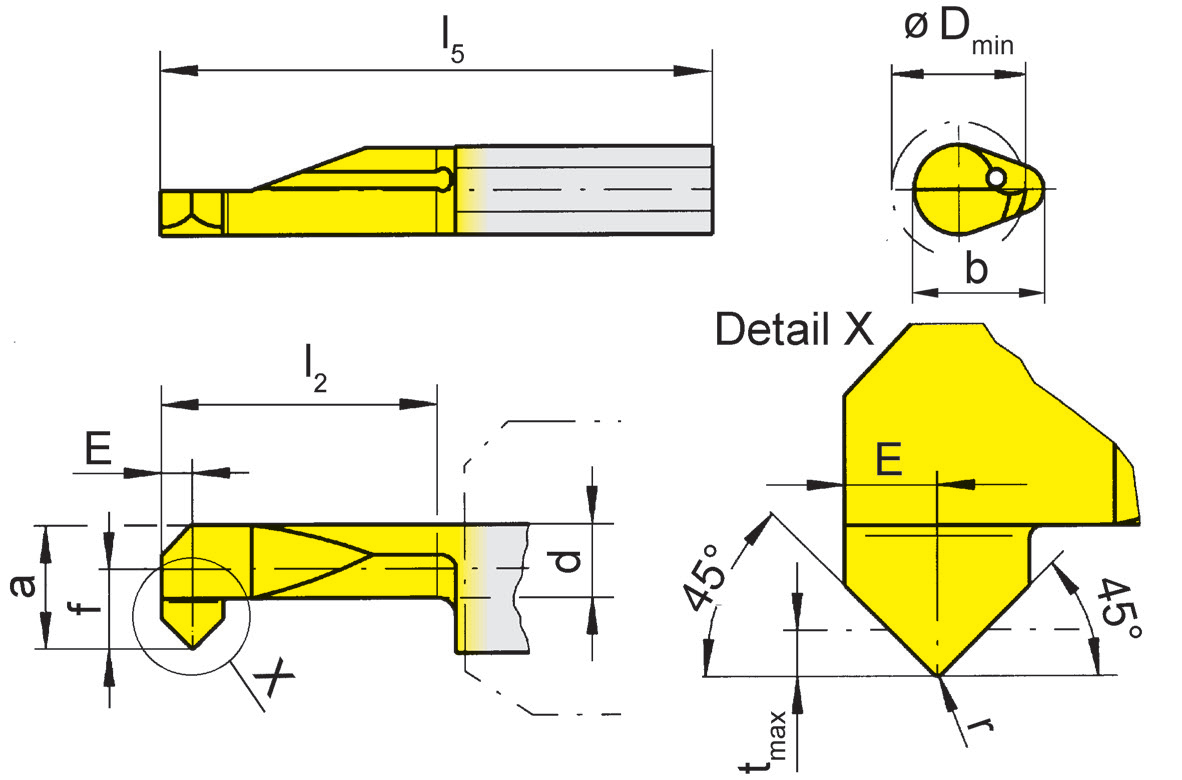

| Part number | r | f | E | a | d | b | l2 | l5 | tmax | Dmin |  |
 |
 |
 |
|
| R/L105.4545.2.5 | 0.2 | 2.3 | 1 | 4.7 | 3.5 | 7 | 15 | 30 | 0.7 | 5 | ▲/▲ | / | ▲/▲ | ||
| R/L105.4545.3.7 | 0.2 | 4.0 | 1 | 6.4 | 4.7 | 7 | 20 | 35 | 0.7 | 7 | ▲/▲ | /△ | ▲/▲ | ||
| State R or L version | Further sizes upon request Dimensions in mm | P | |||||||||||||
| ▲ on stock △ 4 weeks upon request | M | ||||||||||||||
| recommended |  uncoated grades |
K | |||||||||||||
| alternative recommendation |  coated grades |
N | |||||||||||||
| not suitable |  brazed / Cermet |
S | |||||||||||||
| H | |||||||||||||||
| Carbide grades | |||||||||||||||
 |
|
 |
