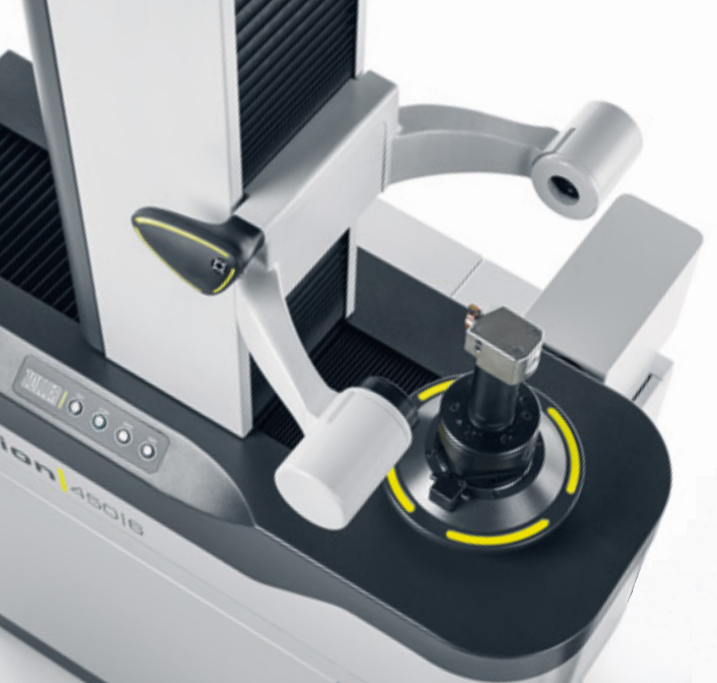

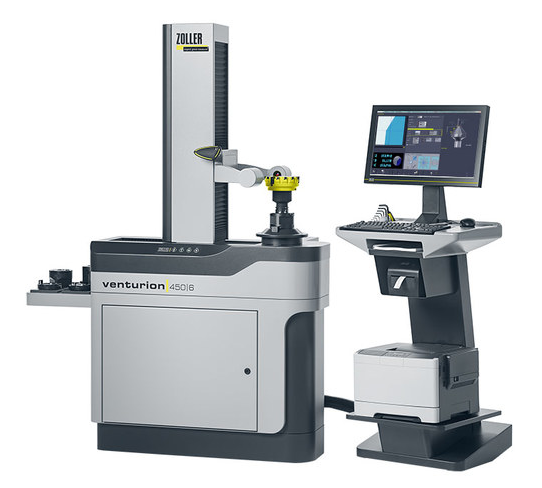

| The premium presetting and measuring machine for tools of all kinds, ZOLLER »venturion 450« impresses with maximum ergonomics and strong optics. Insert a tool, push a button, finished. That's how simple it is to clamp tools from ZOLLER — always with the same precision, accurate and reliable to the last μm. Measuring tools is just the beginning. Exchanging generated data seamlessly with all production stations and profiting from consistent, μm-precise values from work preparation to the CNC machine. |
 |
Available in up to seven selectable measuring |
Heidenhain glass scales for high measuring accuracy |
 |
| Technical Data | Measuring range Z | Measuring range X | Diameter | Snap gauge ∅ |
| »venturion 450« | 450-620*-820* mm / 17.7-24.4*-32.3*" |
210-310* mm / 8.3-12.2*" |
420-620* mm / 16.5-24.4*" |
100-70-40 mm / 3.9-2.8-1.6" |
| Note: The quoted measuring range may be reduced under circumstances when using adapters and tool posts. The maximum tool diameter X is reduced when selecting the Snap gauge ∅ * optionally available: the snap gauge diameter will be reduced accordingly. |
||||
 |
 |

|
 |
 Autofocus and ROD encoder |

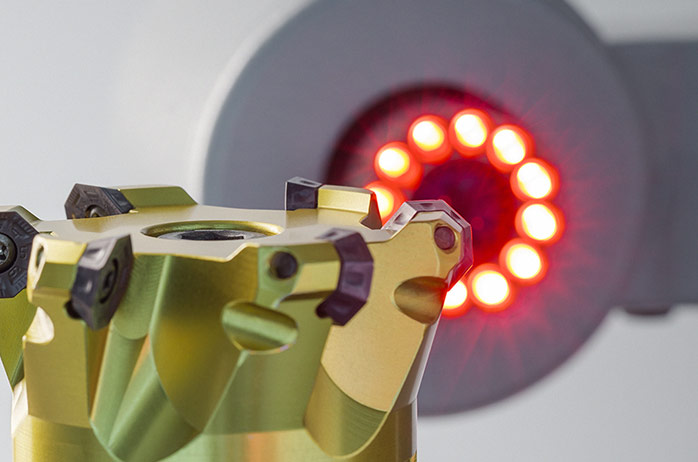

 Cutting edge inspection |
 Snap gauge |
 Storage trays for adapters |
 Length limit system |
 Tool identification |
|
 Color laser printer |
 Label printer |
 »ZipCode« with labels |
|

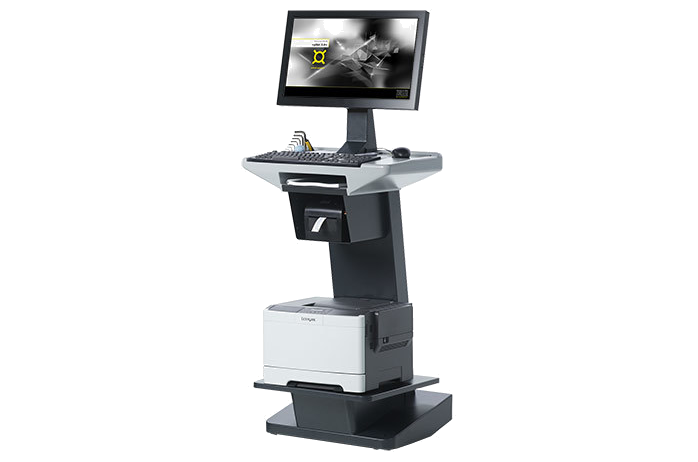

 Control unit »cockpit« |
 USB Camera |
 Data transmission |
|
 Adapter or tool trolley |
 Standing aid |
 Protective cover |
 |

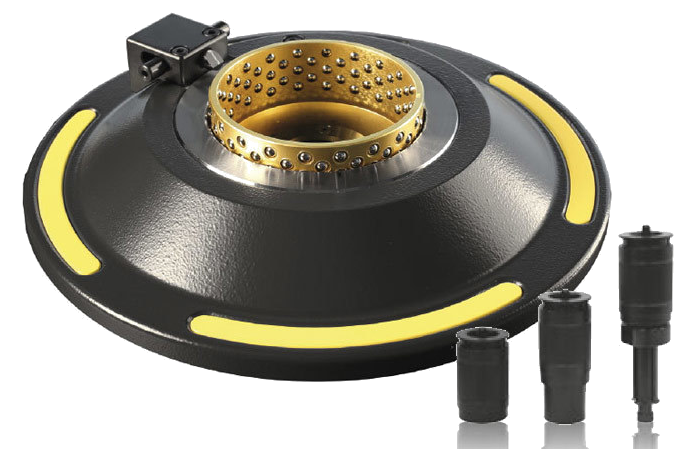

 SK 50 high-precision
|

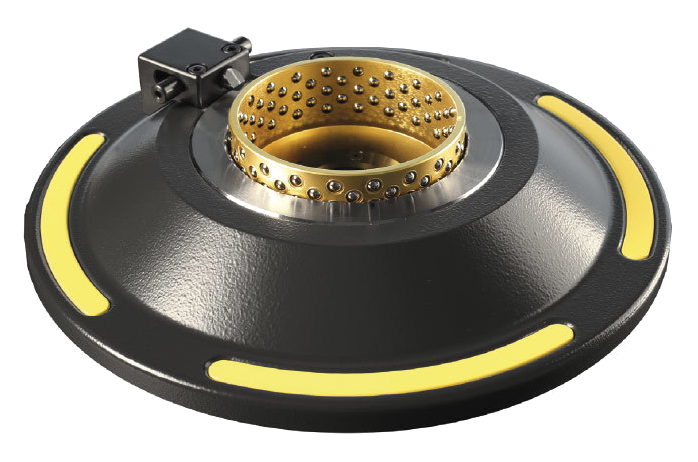

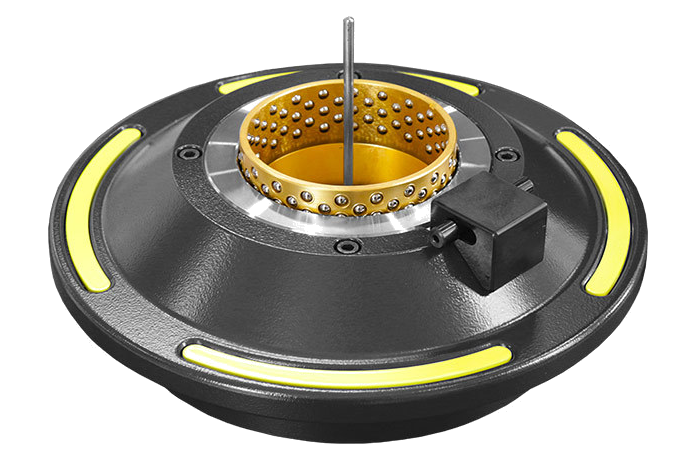

 High-precision spindle
|

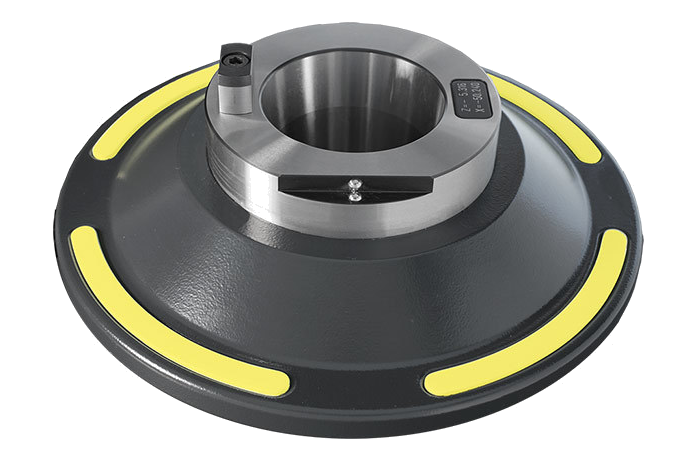

 »ace« high-precision
|
 SK 25 - 60 steep
|
 HSK 25 - 160 hollow shank
|
 VDI 16 - 80 adapter |
|
 Capto C 3 - 10 adapter |
 KM 32 - 100 adapter |
 Hydro-expansion clamping
|
|
 SK 25 - 60
|
 HSK 25 - 160 hollow shank
|
 Capto C 3 - 10
|
|
 VDI 16 - 60
|
 KM 32 - 63
|
 Hydro-expansion chuck
|
 |
|
 |
