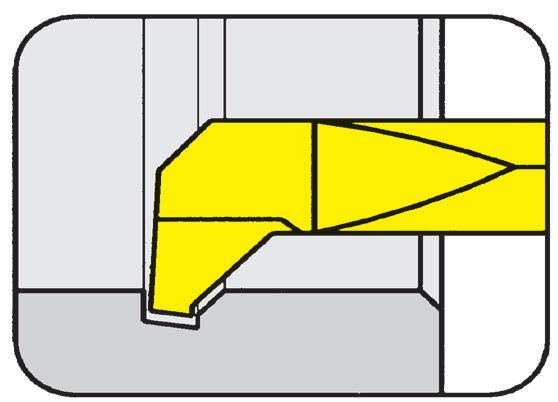

Pregrooving and Chamfering (internal) |
| Insert | 105 |
 |
|||
| Bore Ø from |
3 mm |
||||
 R = right hand version shown L = left hand version |
for Toolholder Type H105 HC105 B105 VDI B105C B105TS IR105 962 AIH 963 N |
||||

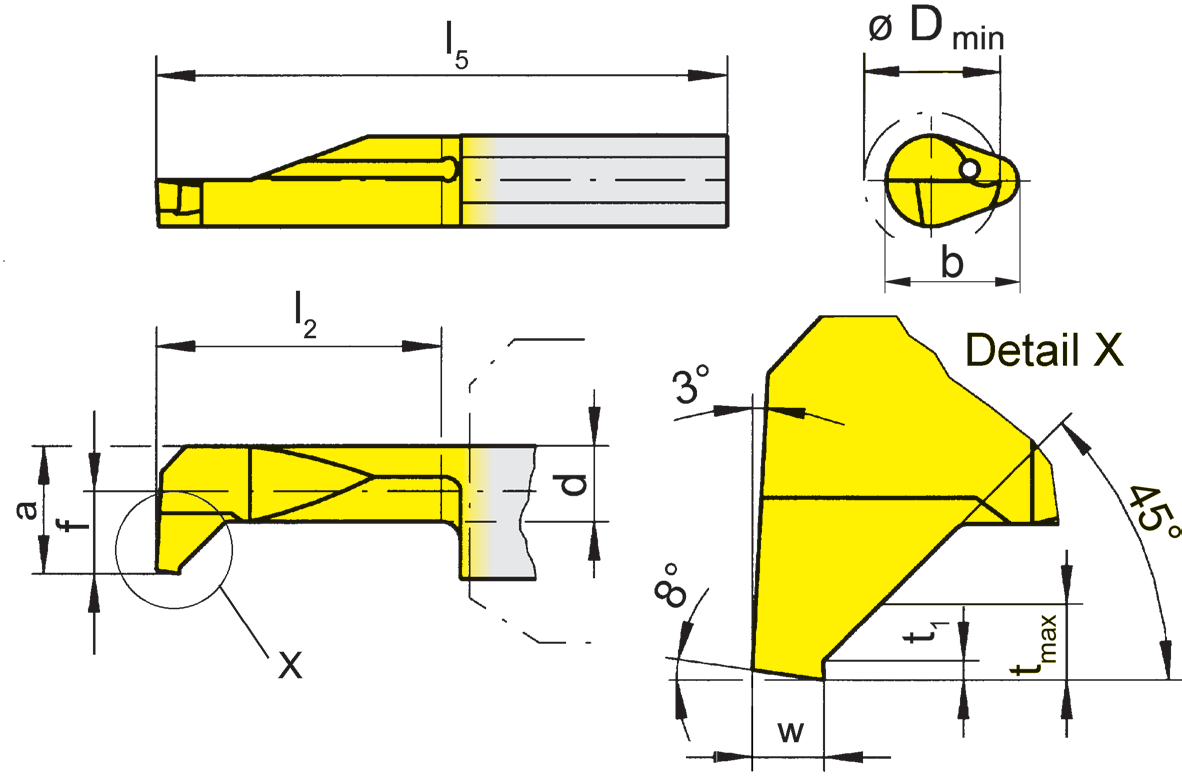

| Part number | w | f | a | d | b | l2 | l5 | tmax | t1 | Dmin |  |
 |
 |
 |
|
| R/L105.0810.1.3 | 0.7 | 1.4 | 2.7 | 2.0 | 5.9 | 10 | 25 | 0.5 | 0.2 | 3 | ▲/△ | ▲/▲ | |||
| R/L105.0810.2.3 | 0.7 | 1.4 | 2.7 | 2.0 | 5.9 | 15 | 30 | 0.5 | 0.2 | 3 | △/△ | ▲/▲ | |||
| R/L105.0810.1.4 | 1.0 | 1.9 | 3.7 | 2.7 | 6.4 | 10 | 25 | 0.7 | 0.2 | 4 | ▲/△ | ▲/▲ | |||
| R/L105.0810.2.4 | 1.0 | 1.9 | 3.7 | 2.7 | 6.4 | 15 | 30 | 0.7 | 0.2 | 4 | ▲/△ | ▲/▲ | |||
| R/L105.0810.3.4 | 1.0 | 1.9 | 3.7 | 2.7 | 6.4 | 20 | 35 | 0.7 | 0.2 | 4 | △/△ | ▲/▲ | |||
| R/L105.0810.2.5 | 1.0 | 2.3 | 4.7 | 3.5 | 7.0 | 15 | 30 | 0.7 | 0.2 | 5 | ▲/▲ | ▲/▲ | ▲/▲ | ||
| R/L105.0810.3.5 | 1.0 | 2.3 | 4.7 | 3.5 | 7.0 | 20 | 35 | 0.7 | 0.2 | 5 | ▲/△ | ▲/▲ | ▲/▲ | ||
| R/L105.0810.4.5 | 1.0 | 2.3 | 4.7 | 3.5 | 7.0 | 25 | 40 | 0.7 | 0.2 | 5 | ▲/△ | ▲/▲ | ▲/△ | ||
| R/L105.0810.5.5 | 1.0 | 2.3 | 4.7 | 3.5 | 7.0 | 30 | 45 | 0.7 | 0.2 | 5 | △/△ | △/△ | △/△ | ||
| R/L105.0810.5.6 | 1.0 | 3.1 | 5.5 | 4.2 | 7.0 | 30 | 45 | 1.0 | 0.2 | 6 | ▲/△ | ▲/▲ | |||
| R/L105.0810.7.6 | 1.0 | 3.1 | 5.5 | 4.2 | 7.0 | 40 | 55 | 1.0 | 0.2 | 6 | △/△ | ▲/▲ | |||
| State R or L version | Further sizes upon request Dimensions in mm | P | |||||||||||||
| ▲ on stock △ 4 weeks upon request | M | ||||||||||||||
| recommended |  uncoated grades |
K | |||||||||||||
| alternative recommendation |  coated grades |
N | |||||||||||||
| not suitable |  brazed / Cermet |
S | |||||||||||||
| H | |||||||||||||||
| Carbide grades | |||||||||||||||
 |
|
 |
