Face Grooving |
| Insert | 105 |
 |
|||
| from outer groove Ø Depth of groove Width of groove up to |
5 mm 5 mm 2 mm |
||||
 R = right hand version shown L = left hand version |
for Toolholder Type H105 HC105 B105 VDI B105C B105TS IR105 962 AIH 963 N |
||||

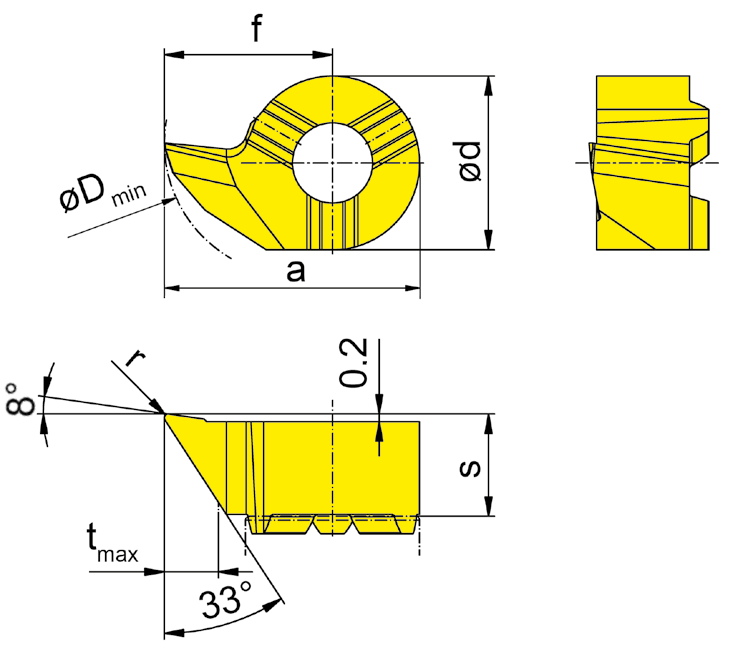

| Part number | w | r | f | b | l2 | l5 | tmaxa | Damin |  |
 |
 |
 |
|
| R105.0505.1.8 | 0.5 | - | 2 | 7 | 10 | 25 | 2 | 5 | ▲ | △ | |||
| R/L105.0510.1.8 | 1.0 | 0.05 | 2 | 7 | 10 | 25 | 2 | 5 | ▲/△ | ▲/▲ | ▲/▲ | ||
| R/L105.0515.1.8 | 1.5 | 0.05 | 2 | 7 | 10 | 25 | 3 | 5 | ▲/△ | ▲/▲ | ▲/▲ | ||
| R/L105.0520.1.8 | 2.0 | 0.05 | 2 | 7 | 10 | 25 | 5 | 5 | ▲/△ | ▲/▲ | ▲/▲ | ||
| R/L105.0510.2.8 | 1.0 | 0.05 | 2 | 7 | 15 | 35 | 2 | 5 | △/△ | ▲/△ | ▲/▲ | ||
| R/L105.0515.2.8 | 1.5 | 0.05 | 2 | 7 | 15 | 35 | 3 | 5 | △/△ | ▲/▲ | ▲/▲ | ||
| R/L105.0520.2.8 | 2.0 | 0.05 | 2 | 7 | 15 | 35 | 5 | 5 | △/▲ | ▲/▲ | ▲/▲ | ||
| State R or L version | Further sizes upon request Dimensions in mm | P | |||||||||||
| ▲ on stock △ 4 weeks upon request | M | ||||||||||||
| recommended |  uncoated grades |
K | |||||||||||
| alternative recommendation |  coated grades |
N | |||||||||||
| not suitable |  brazed / Cermet |
S | |||||||||||
| H | |||||||||||||
| Carbide grades | |||||||||||||
 |
|
 |
