Face Grooving |
| Insert | 105 |
 |
|||
| from outer groove Ø Depth of groove Width of groove up to |
8 mm 6 mm 3 mm |
||||
 R = right hand version shown L = left hand version |
for Toolholder Type H105 HC105 B105 VDI B105C B105TS IR105 962 AIH 963 N |
||||

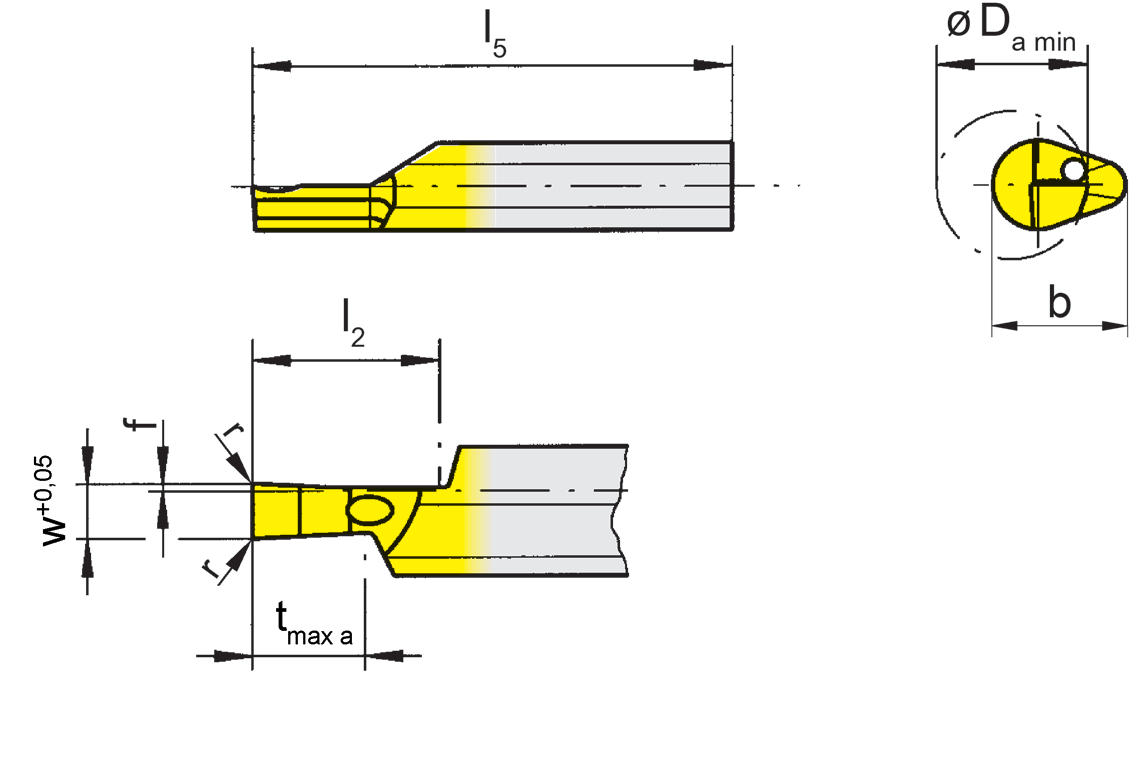

| Part number | w | r | f | b | l2 | l5 | tmaxa | Damin |  |
 |
|
| R/L105.0810.1.9 | 1.0 | 0.15 | 0.4 | 7 | 10 | 25 | 2 | 8 | ▲/▲ | ▲/▲ | |
| R/L105.0815.1.9 | 1.5 | 0.15 | 0.4 | 7 | 10 | 25 | 3 | 8 | ▲/▲ | ▲/▲ | |
| R/L105.0820.1.9 | 2.0 | 0.15 | 0.4 | 7 | 10 | 25 | 4 | 8 | ▲/▲ | ▲/▲ | |
| R/L105.0825.1.9 | 2.5 | 0.15 | 0.4 | 7 | 10 | 25 | 5 | 8 | ▲/▲ | ▲/▲ | |
| R/L105.0830.1.9 | 3.0 | 0.15 | 0.4 | 7 | 10 | 25 | 6 | 8 | ▲/▲ | ▲/▲ | |
| State R or L version | Further sizes upon request Dimensions in mm | P | |||||||||
| ▲ on stock △ 4 weeks upon request | M | ||||||||||
| recommended |  uncoated grades |
K | |||||||||
| alternative recommendation |  coated grades |
N | |||||||||
| not suitable |  brazed / Cermet |
S | |||||||||
| H | |||||||||||
| Carbide grades | |||||||||||
 |
|
 |
