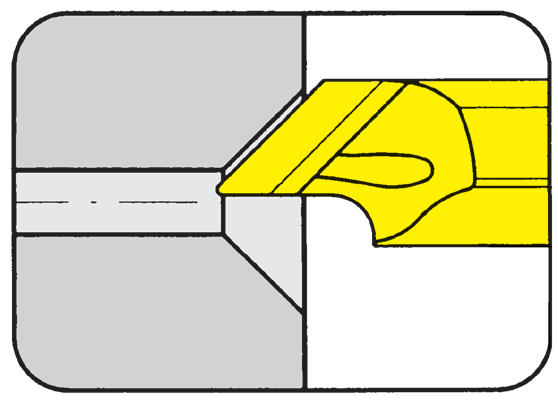

Chamfering |
| Insert | 105 |
 |
|||
| Angle of chamfer Width of chamfer up to |
45°/60° 4 mm |
||||
 R = right hand version shown L = left hand version |
for Toolholder Type H105 HC105 B105 VDI B105C B105TS IR105 962 AIH 963 N  |
||||

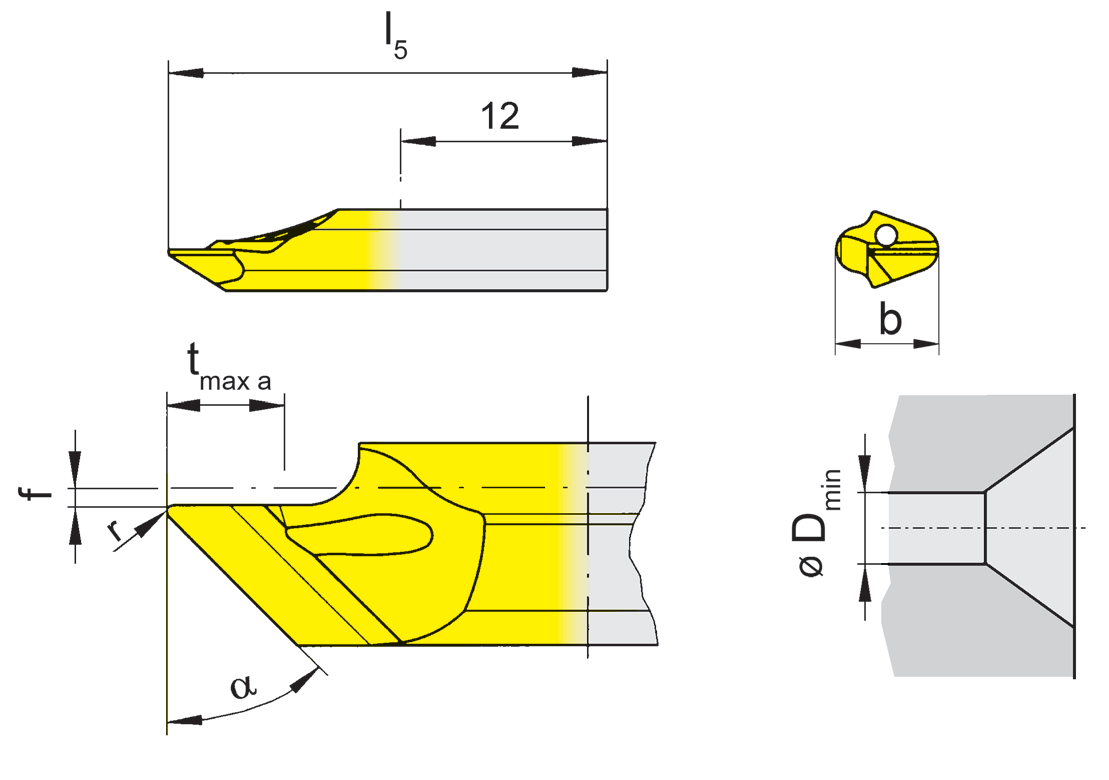

| Part number | r | f | b | l5 | tmaxa | Dmin | ɑ |  |
 |
 |
 |
|
| R/L105.0045.0.1 | 0.2 | 0.5 | 5.9 | 20 | 3.5 | 1 | 45° | ▲/▲ | ▲/▲ | ▲/▲ | ||
| R/L105.0045.1.1 | 0.2 | 0.5 | 5.9 | 25 | 3.5 | 1 | 45° | ▲/▲ | ▲/▲ | △/△ | ||
| R/L105.0060.0.1 | 0.2 | 0.5 | 5.9 | 20 | 4.0 | 1 | 60° | ▲/▲ | ▲/▲ | |||
| R/L105.0060.1.1 | 0.2 | 0.5 | 5.9 | 25 | 4.0 | 1 | 60° | ▲/▲ | ▲/▲ | △/△ | ||
| State R or L version | Further sizes upon request Dimensions in mm | P | ||||||||||
| ▲ on stock △ 4 weeks upon request | M | |||||||||||
| recommended |  uncoated grades |
K | ||||||||||
| alternative recommendation |  coated grades |
N | ||||||||||
| not suitable |  brazed / Cermet |
S | ||||||||||
| H | ||||||||||||
| Carbide grades | ||||||||||||
 |
|
 |
