Backboring (internal) |
| Insert | 105 |
 |
|||
| Bore Ø from |
3 mm |
||||

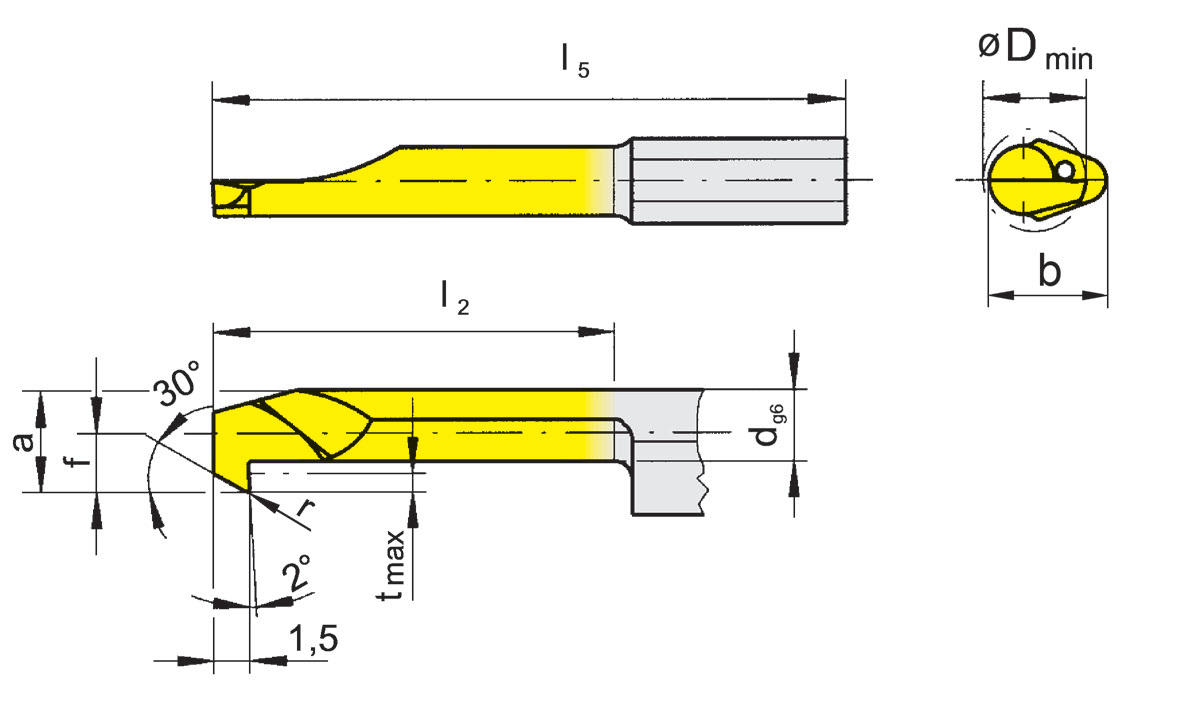

 R = right hand version shown L = left hand version |
for Toolholder Type H105 HC105 B105 VDI B105C B105TS IR105 962 AIH 963 N  |
||||
| Part number | r | f | a | d | b | l2 | l5 | tmax | Dmin |  |
 |
 |
|
| R/L105.3013.2.3 | 0.10 | 1.3 | 2.6 | 1.9 | 5.9 | 15 | 30 | 0.5 | 3.0 | ▲/△ | △/ | ▲/▲ | |
| R/L105.3013.3.3 | 0.10 | 1.3 | 2.6 | 1.9 | 5.9 | 20 | 35 | 0.5 | 3.0 | ▲/△ | ▲/△ | ||
| R/L105.3019.2.4 | 0.15 | 1.9 | 3.7 | 2.7 | 6.4 | 15 | 30 | 0.8 | 4.0 | ▲/△ | / | ▲/△ | |
| R/L105.3019.4.4 | 0.15 | 1.9 | 3.7 | 2.7 | 6.4 | 25 | 40 | 0.8 | 4.0 | ▲/△ | ▲/△ | ||
| R/L105.3023.3.5 | 0.20 | 2.3 | 4.7 | 3.5 | 7.0 | 20 | 35 | 1.0 | 5.0 | ▲/▲ | ▲/▲ | ||
| R/L105.3023.5.5 | 0.20 | 2.3 | 4.7 | 3.5 | 7.0 | 30 | 45 | 1.0 | 5.0 | ▲/△ | ▲/△ | ||
| R/L105.3033.3.6 | 0.20 | 3.3 | 5.7 | 3.7 | 7.0 | 20 | 35 | 1.8 | 6.0 | ▲/△ | ▲/▲ | ||
| R/L105.3033.5.6 | 0.20 | 3.3 | 5.7 | 3.7 | 7.0 | 30 | 45 | 1.8 | 6.0 | ▲/△ | ▲/△ | ||
| R/L105.3040.3.7 | 0.20 | 4.0 | 6.4 | 3.7 | 7.0 | 20 | 35 | 2.5 | 6.8 | ▲/▲ | ▲/▲ | ||
| R/L105.3040.5.7 | 0.20 | 4.0 | 6.4 | 3.7 | 7.0 | 30 | 45 | 2.5 | 6.8 | ▲/△ | ▲/△ | ||
| State R or L version | Further sizes upon request Dimensions in mm | P | |||||||||||
| ▲ on stock △ 4 weeks upon request | M | ||||||||||||
| recommended |  uncoated grades |
K | |||||||||||
| alternative recommendation |  coated grades |
N | |||||||||||
| not suitable |  brazed / Cermet |
S | |||||||||||
| H | |||||||||||||
| Carbide grades | |||||||||||||
 |
|
 |
