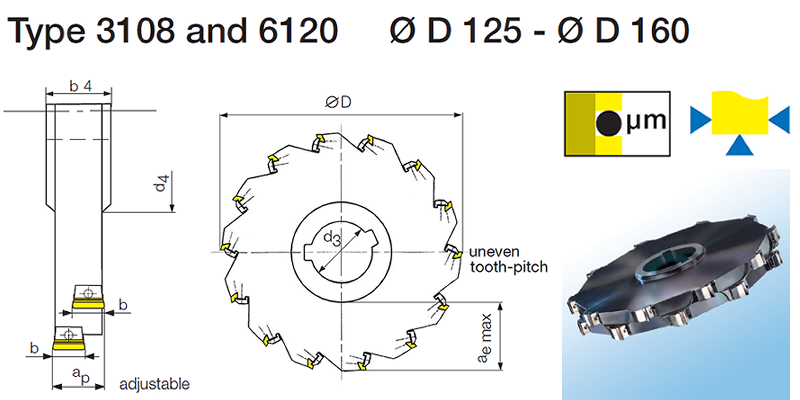

Side Milling Cutters

   axial µm-accurate adjustable




Part nr.
20003
Code Drawing nr. Ø D teeth zeff ap b aemax d3 d4 b4 Inserts

80,000 H3108-8000 0827N 80 10 5 8 7.8 15 27 45 10 W3108...N
80,001 H3108-8000 1027N 80 10 5 10 7.8 15 27 45 12 ❙
80,002 H3108-8000 1227N 80 10 5 12 7.8 15 27 45 14 ❙
80,003 H3108-8000 1427N 80 10 5 14 7.8 15 27 45 16

80,004 H6120-8000 1227N 80 10 5 12.2 12/7* 15 27 45 14 W612…N/R/L
80,005 H6120-8000 1427N 80 10 5 14 12/7* 15 27 45 16 ❙
80,006 H6120-8000 1627N 80 10 5 16 12/7* 15 27 45 18 ❙
80,007 H6120-8000 1827N 80 10 5 18 12/7* 15 27 45 20 ❙
80,008 H6120-8000 2027N 80 10 5 20 12/7* 15 27 45 22

100,000 H3108-1000 0832N 100 14 7 8 7.8 24 32 48 10 W3108...N
100,001 H3108-1000 1032N 100 14 7 10 7.8 24 32 48 12 ❙
100,002 H3108-1000 1232N 100 14 7 12 7.8 24 32 48 14 ❙
100,003 H3108-1000 1432N 100 14 7 14 7.8 24 32 48 16

100,004 H6120-1000 1232N 100 12 6 12.2 12/7* 24 32 48 14 W612…N/R/L
100,005 H6120-1000 1432N 100 12 6 14 12/7* 24 32 48 16 ❙
100,006 H6120-1000 1632N 100 12 6 16 12/7* 24 32 48 18 ❙
100,007 H6120-1000 1832N 100 12 6 18 12/7* 24 32 48 20 ❙
100,008 H6120-1000 2032N 100 12 6 20 12/7* 24 32 48 22
 * PCD-inserts with cutting length of 7 mm    Special measurements e.g. from 5 mm onward can be delivered on request
  in short time available





Part nr.
20003
Code Drawing nr. Ø D teeth zeff ap b aemax d3 d4 b4 Inserts

125,000 H3108-1250 0840N 125 18 9 8 7.8 30 40 58 10 W3108...N
125,001 H3108-1250 1040N 125 18 9 10 7.8 30 40 58 12 ❙
125,002 H3108-1250 1240N 125 18 9 12 7.8 30 40 58 14 ❙
125,003 H3108-1250 1440N 125 18 9 14 7.8 30 40 58 16

125,004 H6120-1250 1240N 125 14 7 12.2 12/7* 30 40 58 14 W612…N/R/L
125,005 H6120-1250 1440N 125 14 7 14 12/7* 30 40 58 16 ❙
125,006 H6120-1250 1640N 125 14 7 16 12/7* 30 40 58 18 ❙
125,007 H6120-1250 1840N 125 14 7 18 12/7* 30 40 58 20 ❙
125,008 H6120-1250 2040N 125 14 7 20 12/7* 30 40 58 22

160,000 H3108-1600 0840N 160 22 11 8 7.8 44 40 58 10 W3108...N
160,001 H3108-1600 1040N 160 22 11 10 7.8 44 40 58 12 ❙
160,002 H3108-1600 1240N 160 22 11 12 7.8 44 40 58 14 ❙
160,003 H3108-1600 1440N 160 22 11 14 7.8 44 40 58 16
 * PCD-inserts with cutting length of 7 mm    Special measurements e.g. from 5 mm onward can be delivered on request
  in short time available





Part nr.
20003
Code Drawing nr. Ø D teeth zeff ap b aemax d3 d4 b4 Inserts

160,004 H6120-1600 1240N 160 18 9 12.2 12/7* 44 40 58 14 W612…N/R/L
160,005 H6120-1600 1440N 160 18 9 14 12/7* 44 40 58 16 ❙
160,006 H6120-1600 1640N 160 18 9 16 12/7* 44 40 58 18 ❙
160,007 H6120-1600 1840N 160 18 9 18 12/7* 44 40 58 20 ❙
160,008 H6120-1600 2040N 160 18 9 20 12/7* 44 40 58 22

200,000 H3108-2000 0850N 200 26 13 8 7.8 62 50 72 10 W3108...N
200,001 H3108-2000 1050N 200 26 13 10 7.8 62 50 72 12 ❙
200,002 H3108-2000 1250N 200 26 13 12 7.8 62 50 72 14 ❙
200,003 H3108-2000 1450N 200 26 13 14 7.8 62 50 72 16

200,004 H6120-2000 1250N 200 22 11 12.2 12/7* 62 50 72 14 W612…N/R/L
200,005 H6120-2000 1450N 200 22 11 14 12/7* 62 50 72 16 ❙
200,006 H6120-2000 1650N 200 22 11 16 12/7* 62 50 72 18 ❙
200,007 H6120-2000 1850N 200 22 11 18 12/7* 62 50 72 20 ❙
200,008 H6120-2000 2050N 200 22 11 20 12/7* 62 50 72 22
 * PCD-inserts with cutting length of 7 mm    Special measurements e.g. from 5 mm onward can be delivered on request
  in short time available





We reserve the right to make technical changes.
