W 3108 | W 6120 | W 612 | W 612 wiper |
Inserts precision ground |

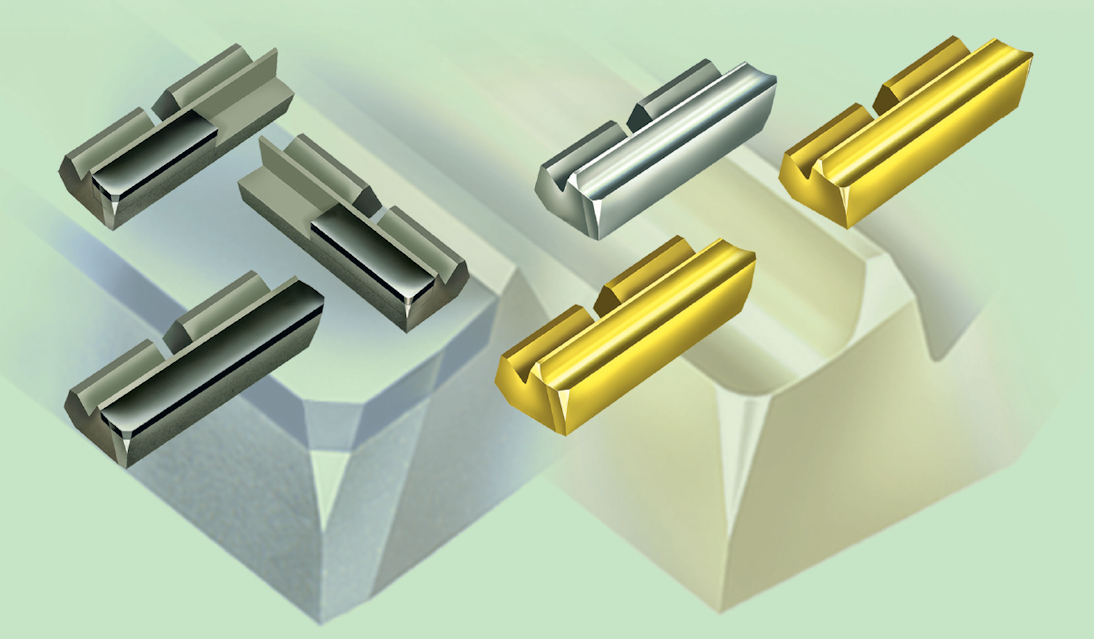

HOLLFELDER-GÜHRING INSERTS are the core parts of our tools. Our standard inserts are suited for a variety of fields of application. The excellent surface finish on the workpiece is a result of the smooth cut of our tools. We create the optimal conditions for this by means of a combination of the insert pocket produced with the utmost precision, the robust clamping element and the precision-ground inserts. |

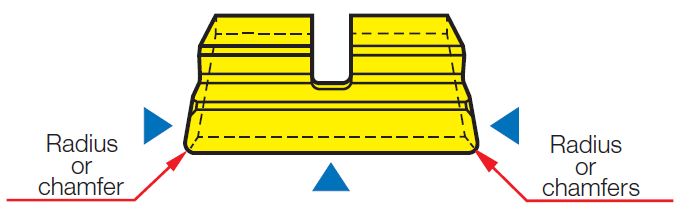

Specific features: An essential advantage of the milling cutters inserts is the peripherie-ground geometry for the types W 3108-… / W 6120- … …N (N = neutral type, trilateral cutting) |
The neutral type can be used in undercut applications as well as in side milling cutters. It is also possible in serial production to use one cutting edge in a right-hand cutter and the "second cutting edge" in a left-hand cutter. |
Inserts ( W 3108- / W 6120-… …N) in neutral type enable
|
