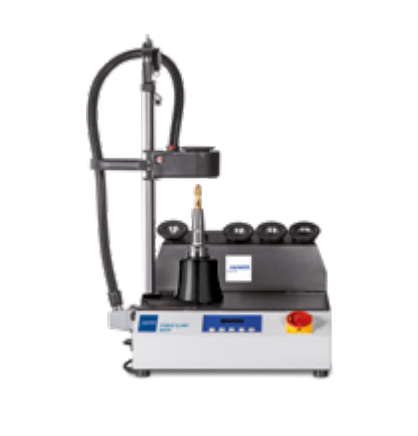

the Standard shrinking device


For all HM and HSS tools with a diameter
         of 3 – 32 mm
With standard coils V2008 and
         interchangeable stop discs
Single-location version
Without integrated contact cooling


 Power  10 kW  Tool
    Diameter		  3 – 32 mm
 Max. Length of
    Shrink Fit Chuck		  350 mm  Dimensions  600 x 900 x 600 mm
 Connection  3 x 400–480 volt
   16 ampere, 10 kVA		  Weight  45 kg






We reserve the right to make technical changes.
