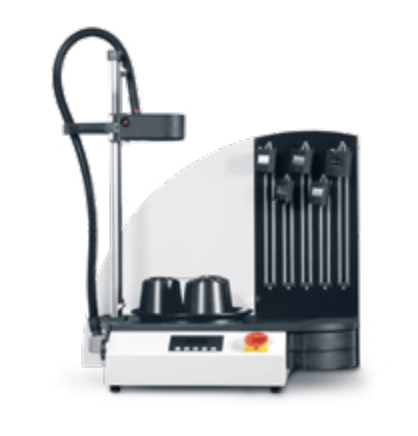

with Cooling and Rotary Table


For all HM and HSS tools with a diameter
         of 3 – 32 mm
With standard coils V2008 and
         interchangeable stop discs
Integrated contact cooling
Rotary table with 3 stations
Also available with an adjustable coil


 Power  13 kW  Tool
    Diameter		  3 – 32 mm
 Max. Length of
    Shrink Fit Chuck		  510/570* mm  Dimensions  860 x 970 x 650 mm
 Connection  3 x 400–480 volt
   16 ampere, 13 kVA		  Weight  70 kg

* with adjustable coil


We reserve the right to make technical changes.
