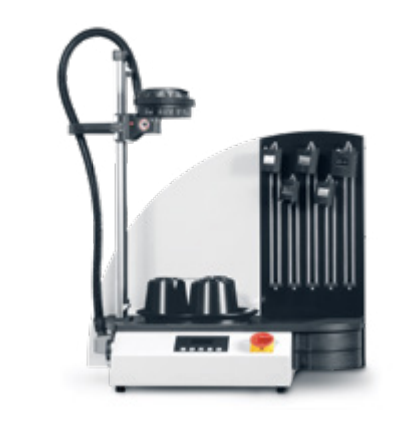

the Professional Device with Cooling,
 Rotary Table and Integrated Coils


For all HM and HSS tools with a diameter
         of 3 – 50 mm
Adjustable coils 13kVA Ø 3 – 32 mm
Integrated contact cooling
Rotary table with 3 stations
With second rotary table for diameters
         of 40 – 50 mm and an output of 20 kVAm
         (Option)


 Power  20 kW  Tool
    Diameter		  3 – 50 mm
 Max. Length of
    Shrink Fit Chuck		  550 mm  Dimensions  860 x 970 x 650 mm
 Connection  3 x 360-500 volt
   32 ampere, 20 kVA		  Weight  85 kg





We reserve the right to make technical changes.
